System Specifications

Timing Components

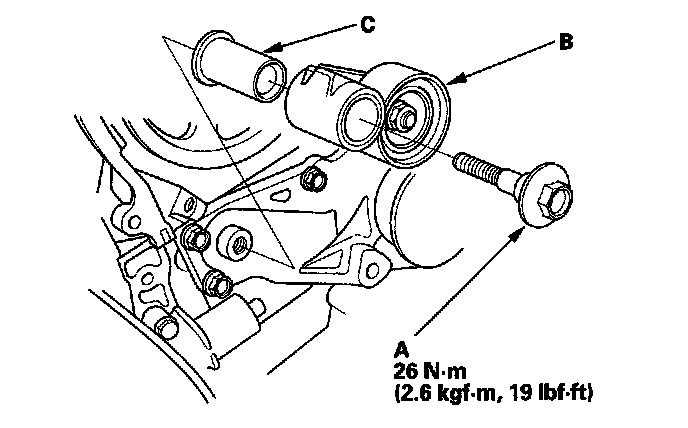

Timing Belt Tensioner Torque 26 N-m (2.6 kgf-m, 19 lbf-ft)





Crankshaft Pulley

Torque 65 N-m (6.5 kgf-m, 48 lbf-ft)





Tighten the bolt an additional 60°

Timing Cover

Install the lower cover.





Install the front upper cover (A) and the rear upper cover (B).
