System Specifications

Timing Components

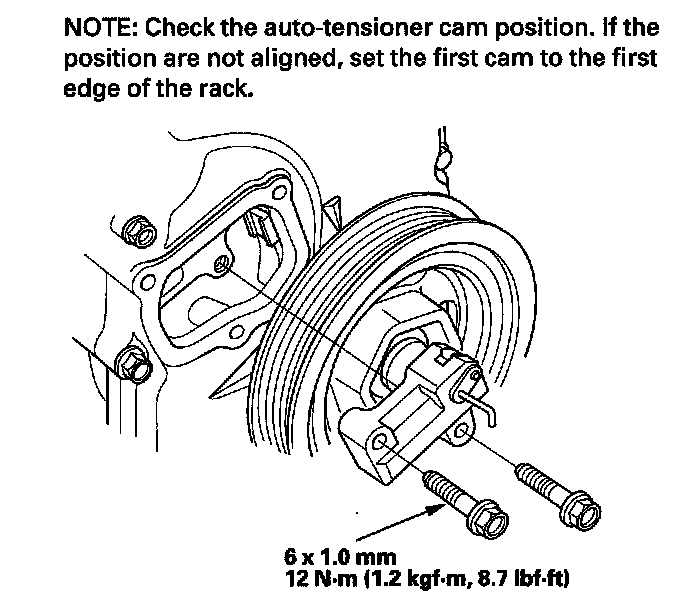

Timing Chain Tensioner Torque 12 N-m (1.2 kgf-m, 8.7 lbf-ft)





Crankshaft Pulley Torque 49 N-m (5.0 kgf-m, 36 lbf-ft)

If the pulley bolt or crankshaft are new, tighten the bolt to 177 N-m (18.0 kgf-m, 130 lbf-ft), then remove the bolt and tighten it to 49 N-m (5.0 kgf-m, 36 lbf-ft).

Tighten additional 90°.

Timing Cover Torque 12 N-m (1.2 kgf-m, 8.7 lbf-ft)
