Service Specifications

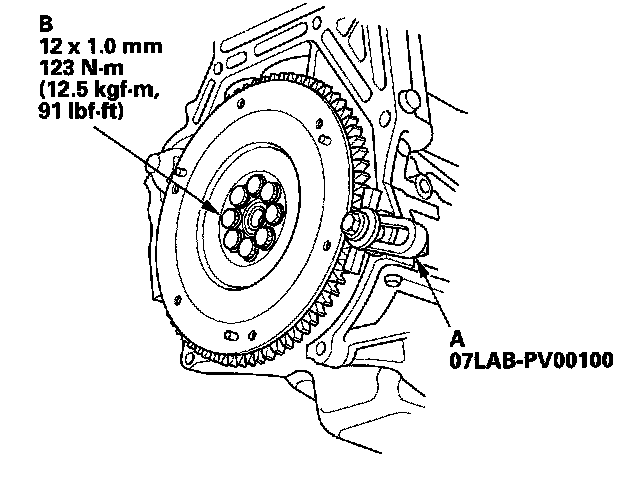

Flywheel





Torque the flywheel mounting bolts (B) in a crisscross pattern in several steps.

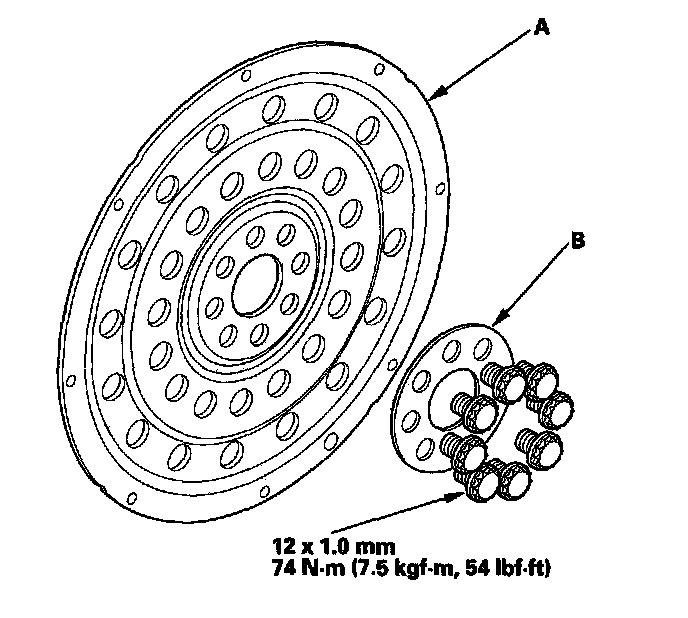

Flex Plate





Tighten the eight bolts in a crisscross pattern in at least two steps.
