Pinout Values and Diagnostic Parameters

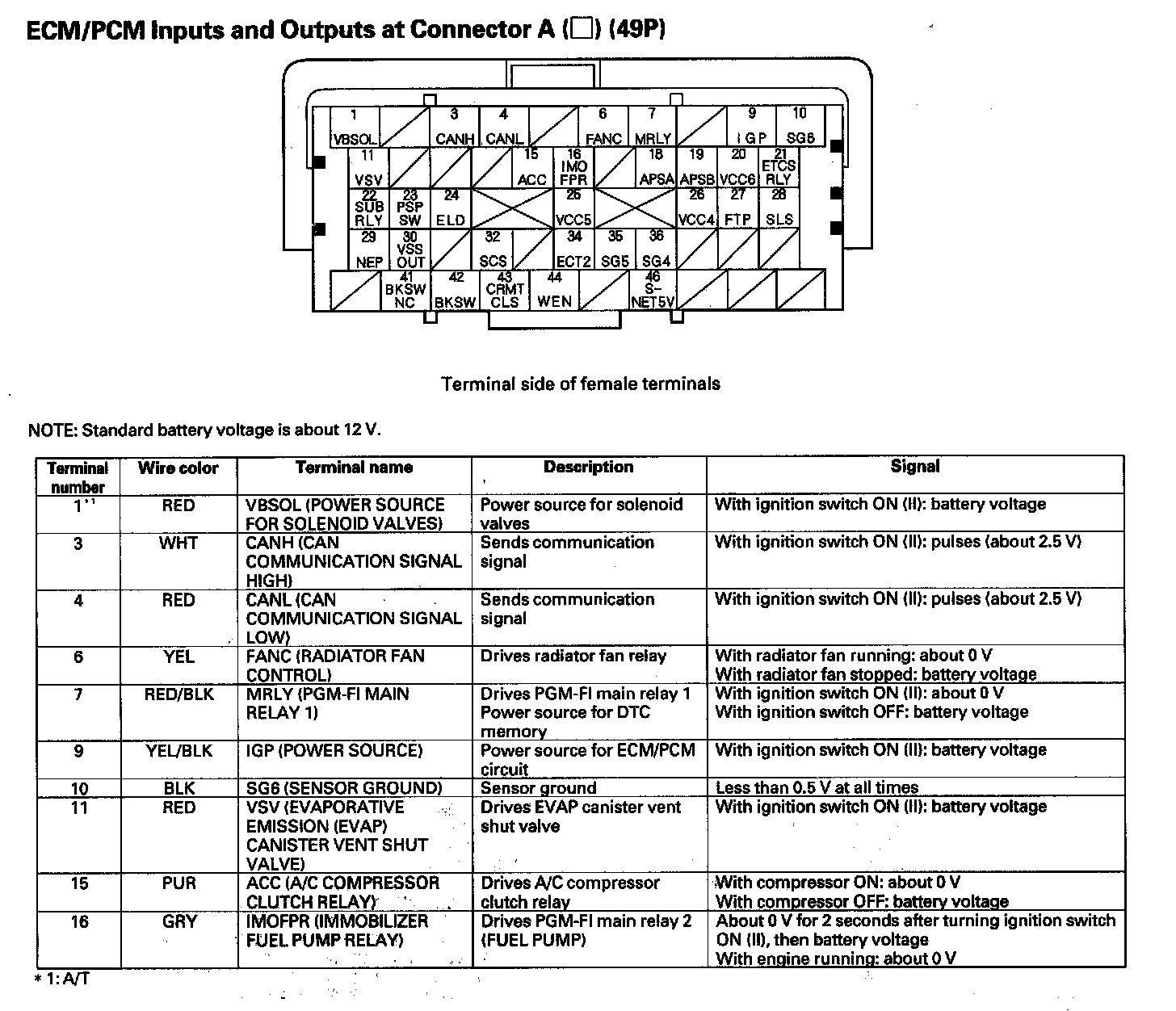

ECM/PCM Inputs And Outputs At Connector A (49P) (Part 1):

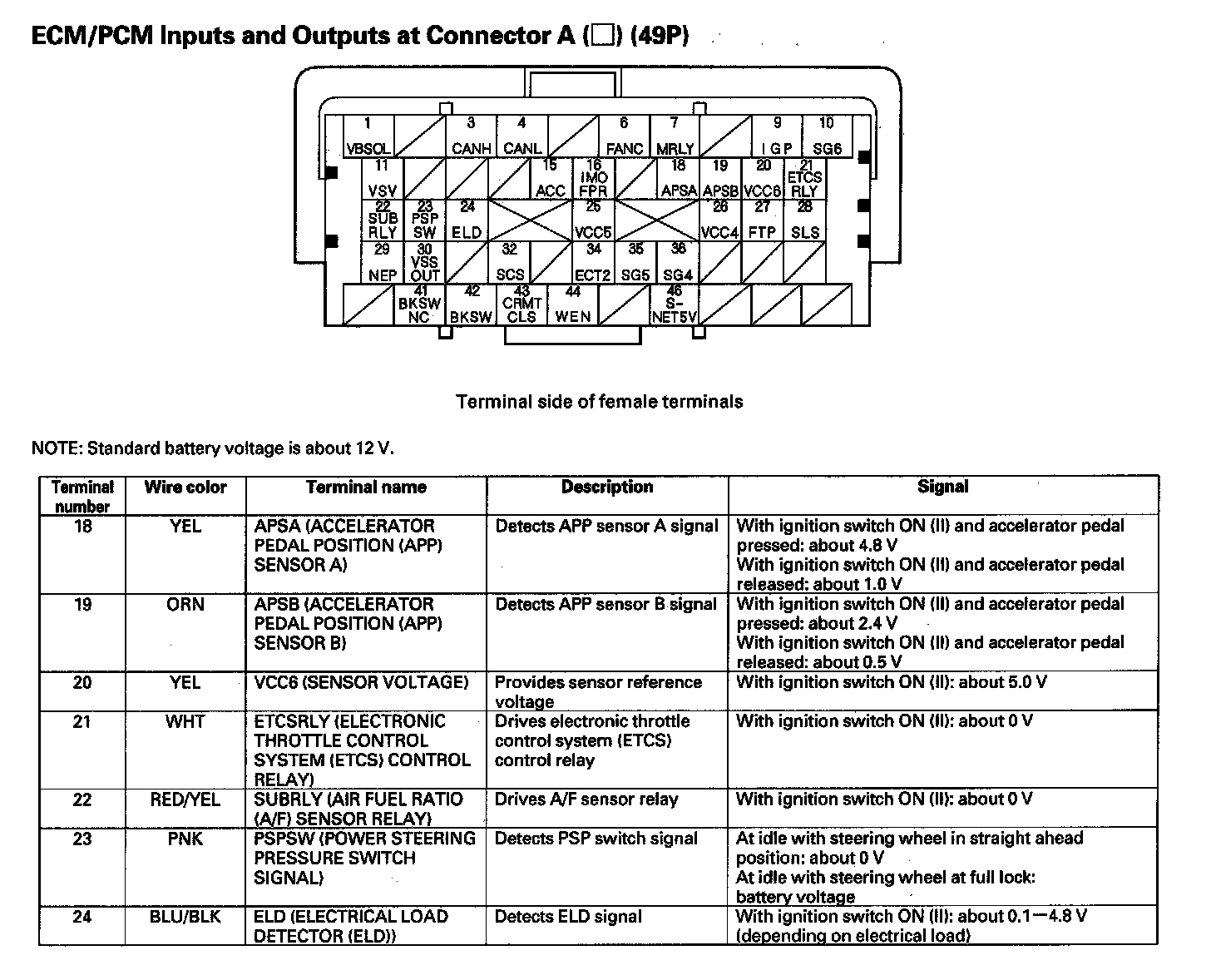

ECM/PCM Inputs And Outputs At Connector A (49P) (Part 2):

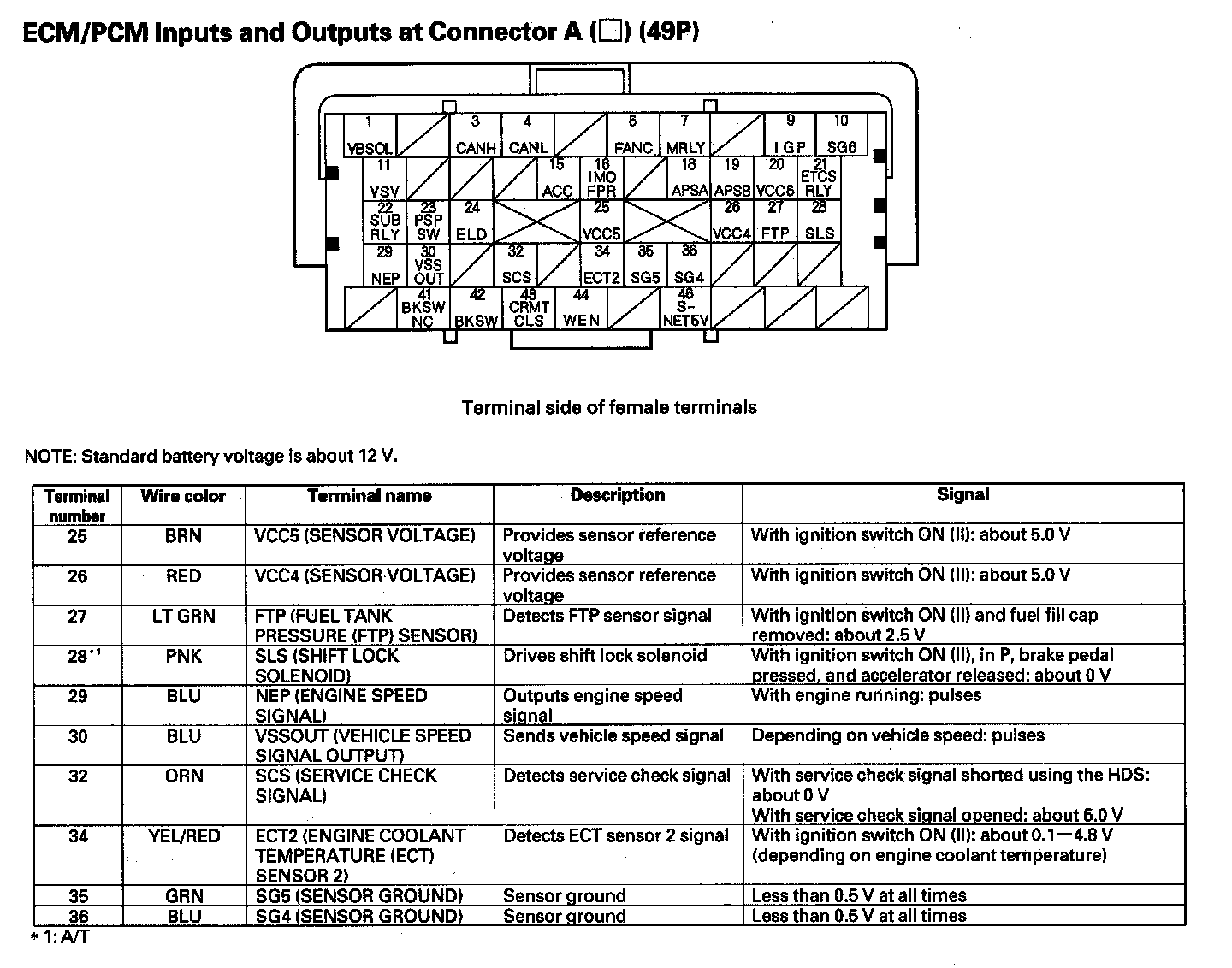

ECM/PCM Inputs And Outputs At Connector A (49P) (Part 3):

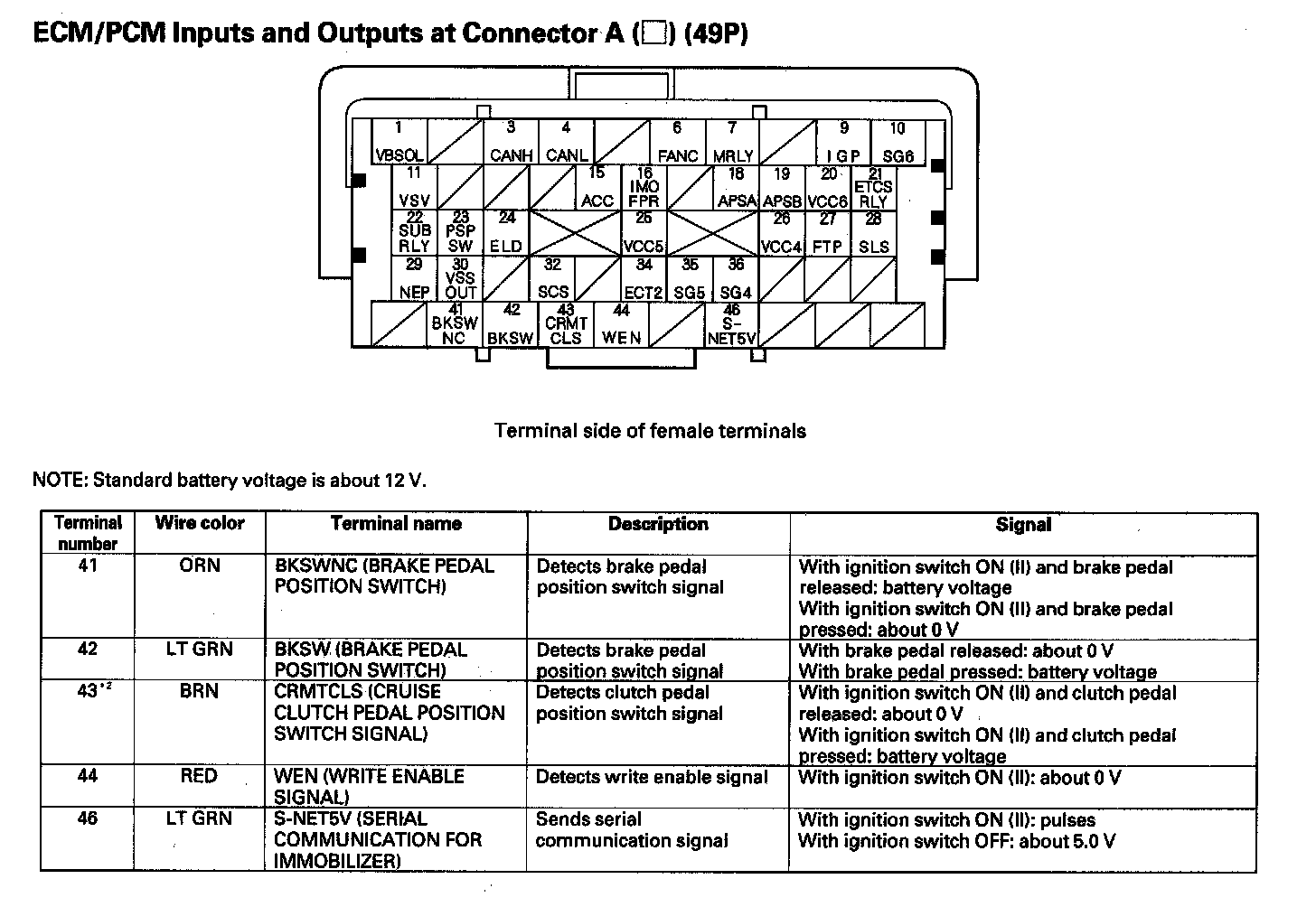

ECM/PCM Inputs And Outputs At Connector A (49P) (Part 4):

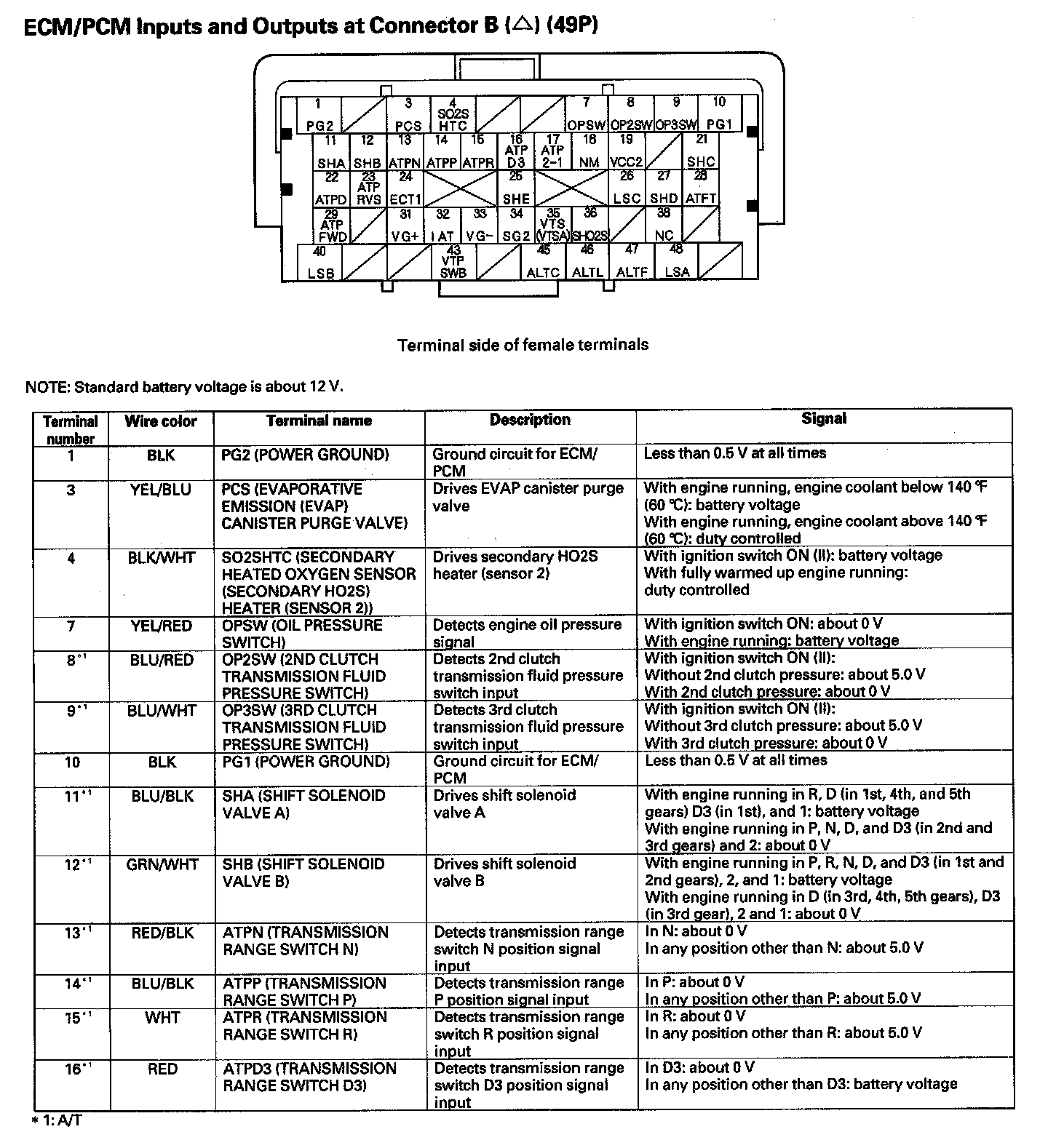

ECM/PCM Inputs And Outputs At Connector B (49P) (Part 1):

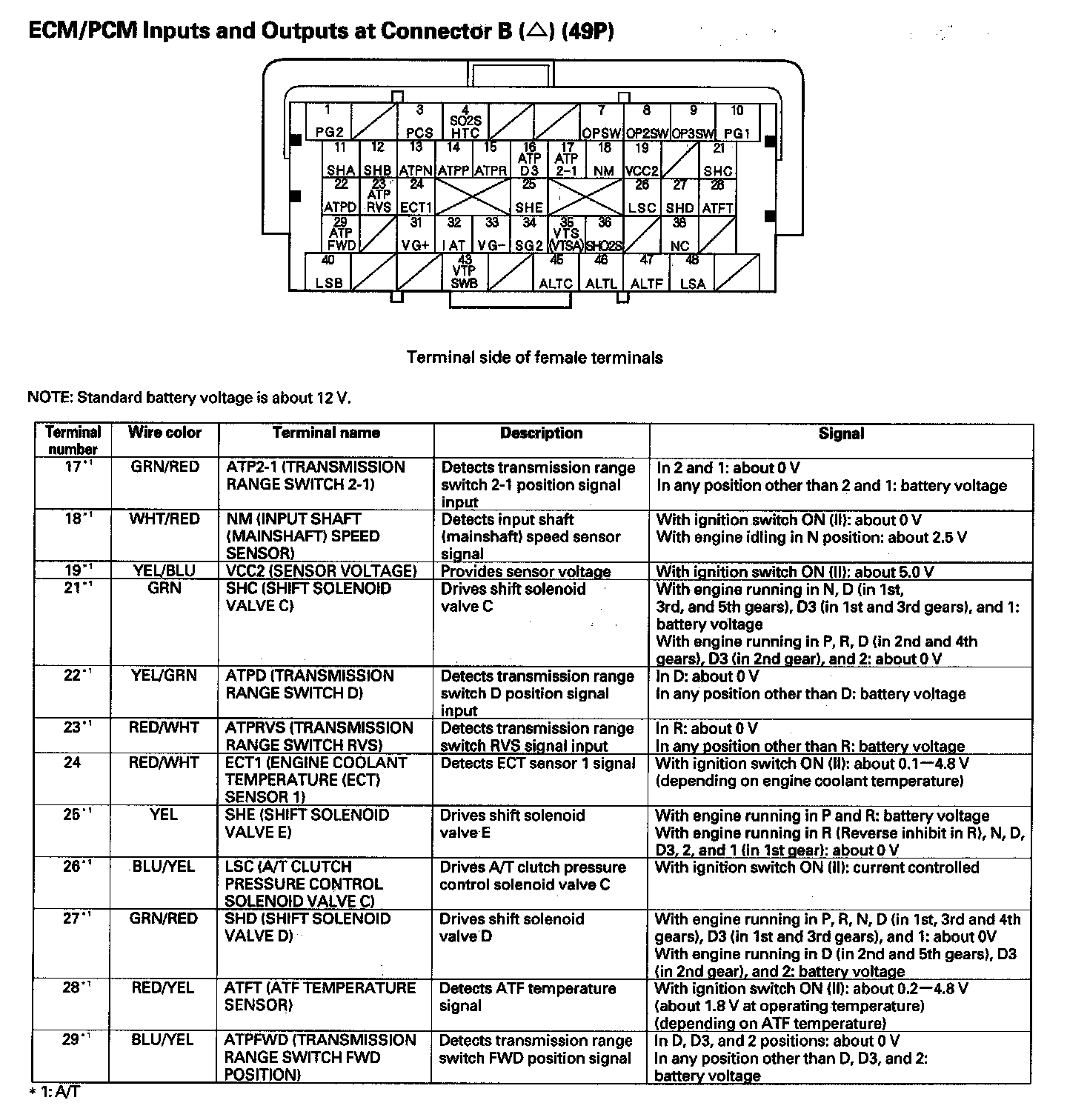

ECM/PCM Inputs And Outputs At Connector B (49P) (Part 2):

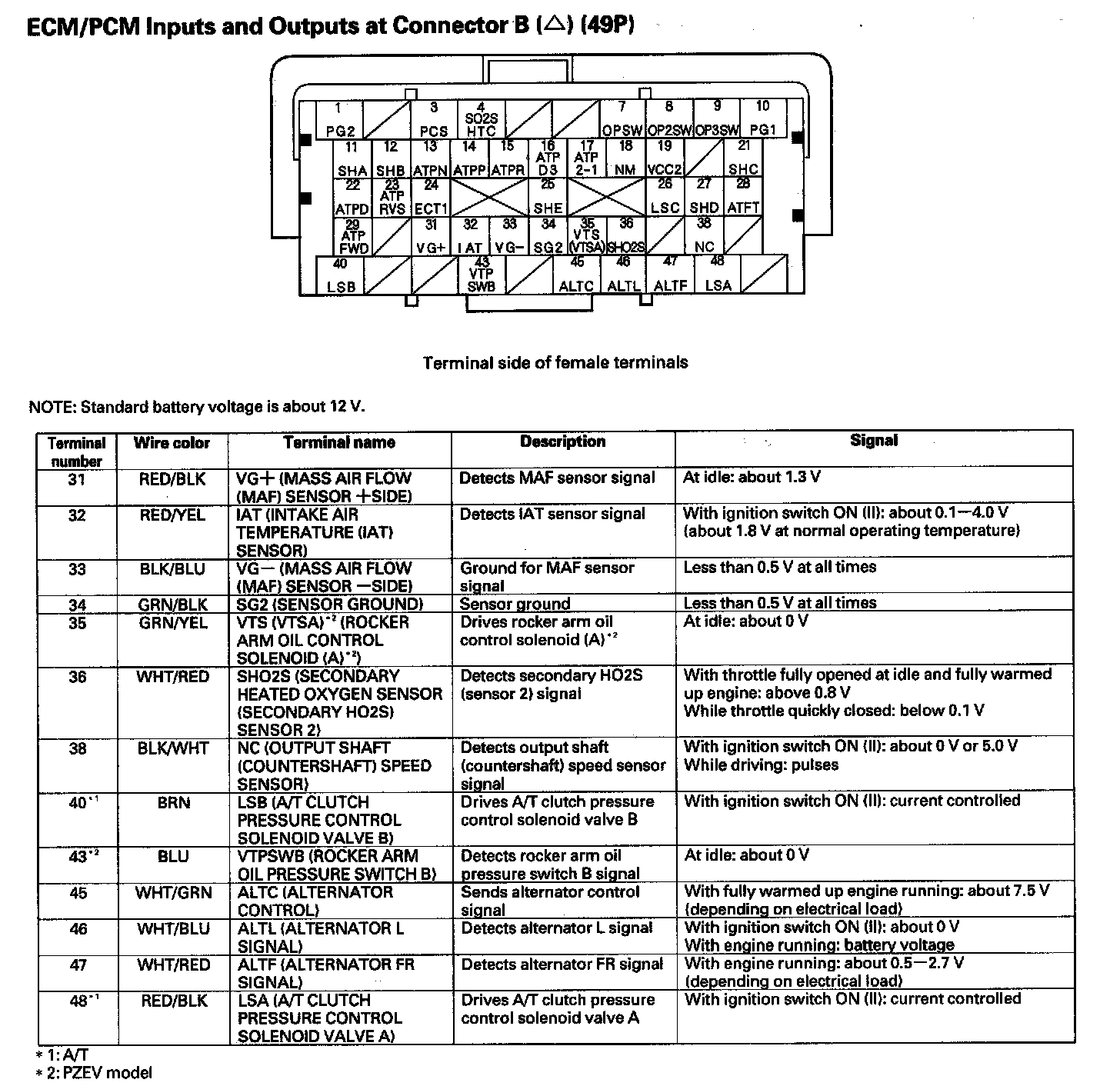

ECM/PCM Inputs And Outputs At Connector B (49P) (Part 3):

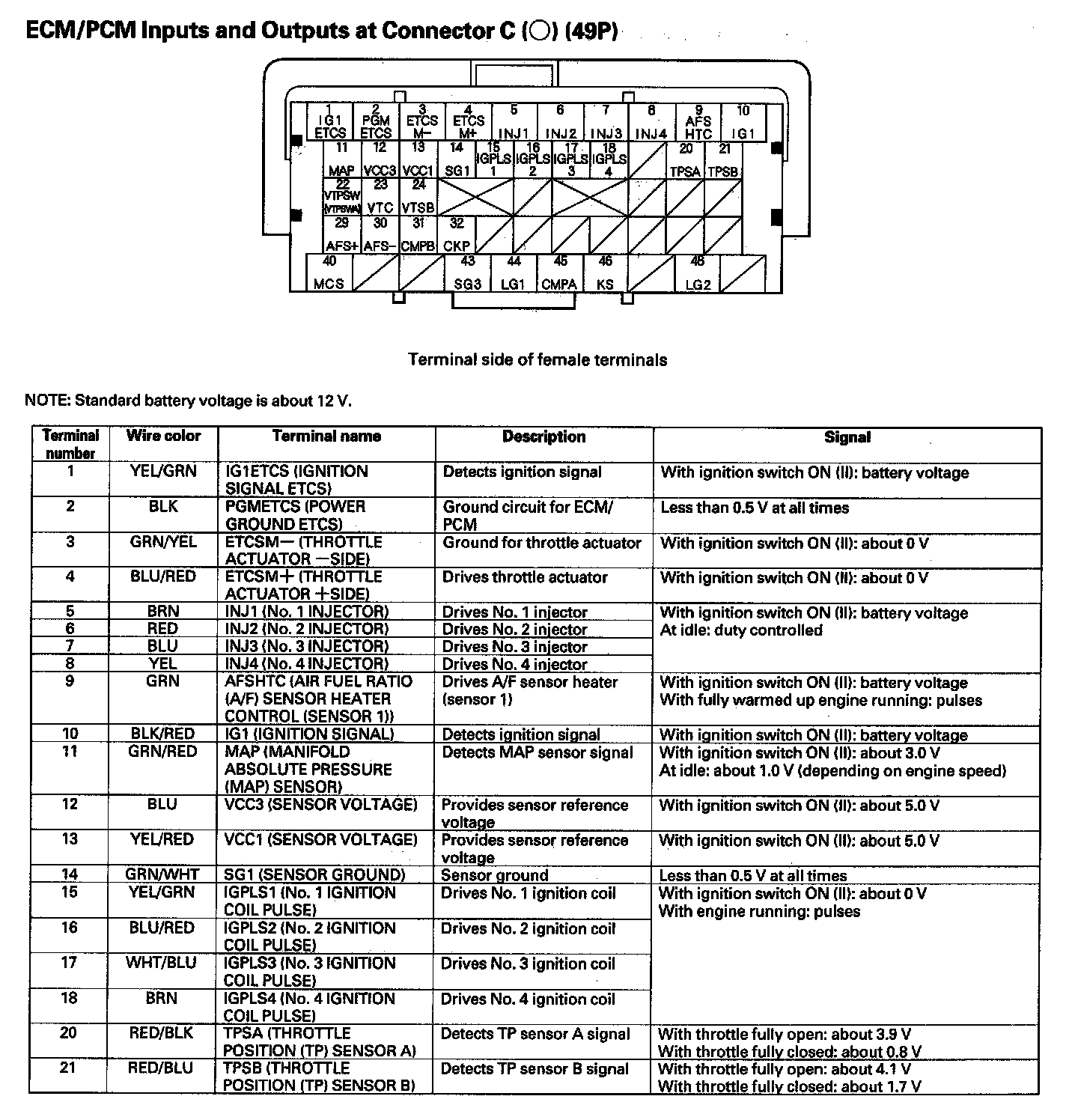

ECM/PCM Inputs And Outputs At Connector C (49P) (Part 1):

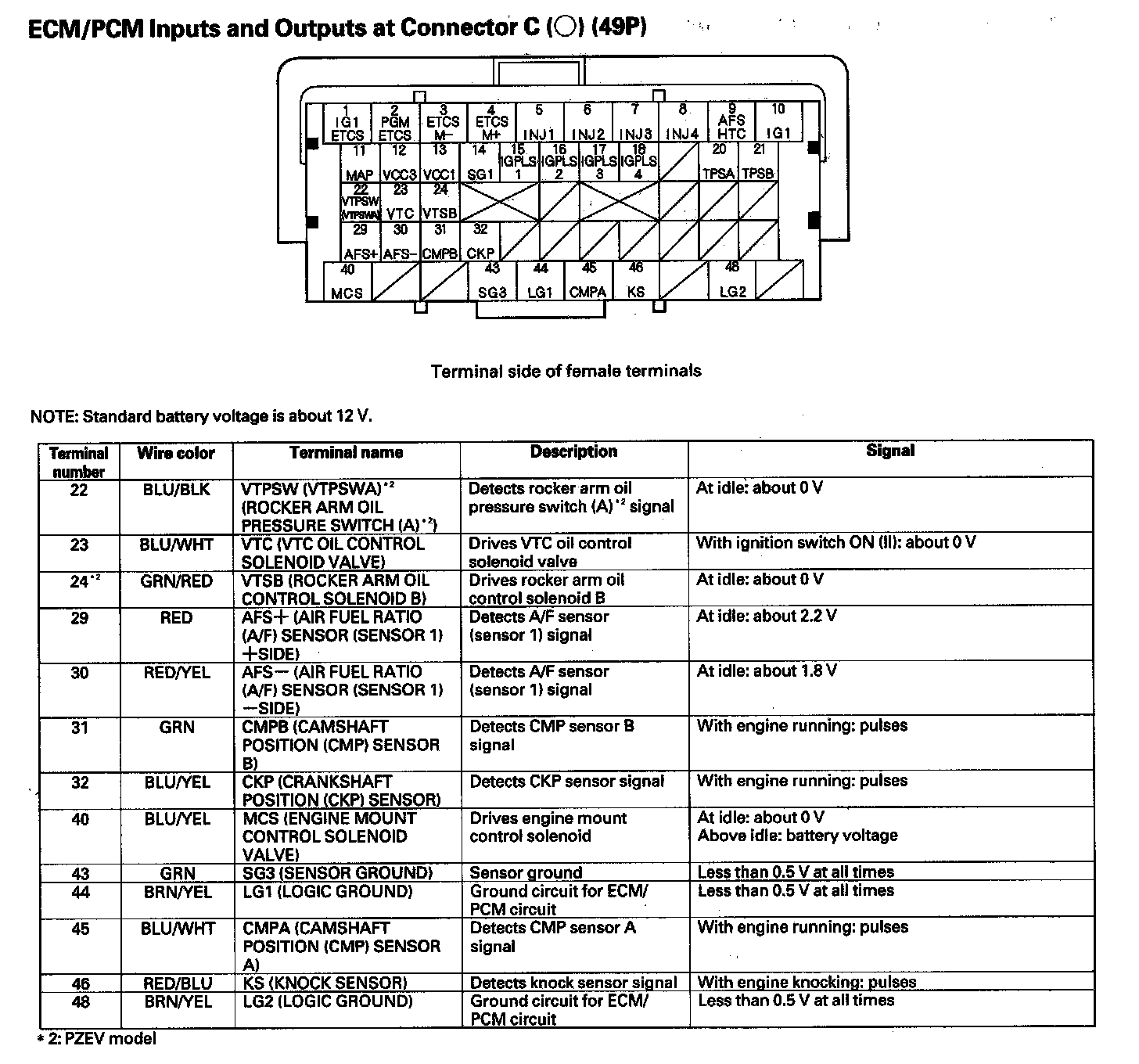

ECM/PCM Inputs And Outputs At Connector C (49P) (Part 2):
