Climate Control Switch Removal/Installation
Climate Control Switch Removal/InstallationWith Navigation
1. Remove the audio unit.

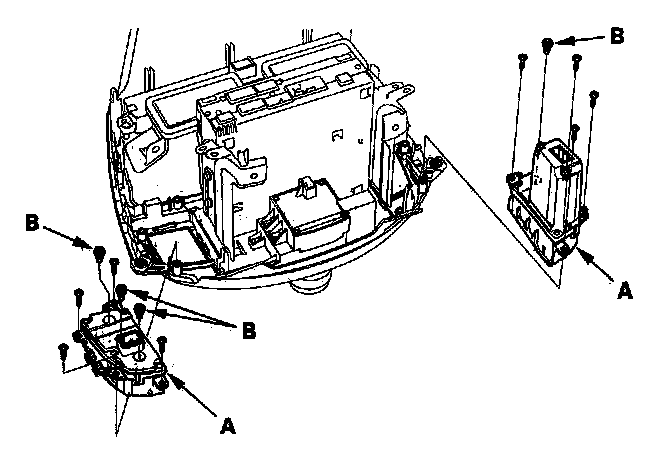

2. Remove the self-tapping screws and the climate control switches (A). If necessary, replace the bulbs (B).
3. Install the switches in the reverse order of removal.
4. Run the self-diagnostic function to confirm that there are no problems in the system.
