Home >> Honda >> 2007 >> S2000 L4-2.2L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Relay >> Diagrams

Ignition Relay: Diagrams

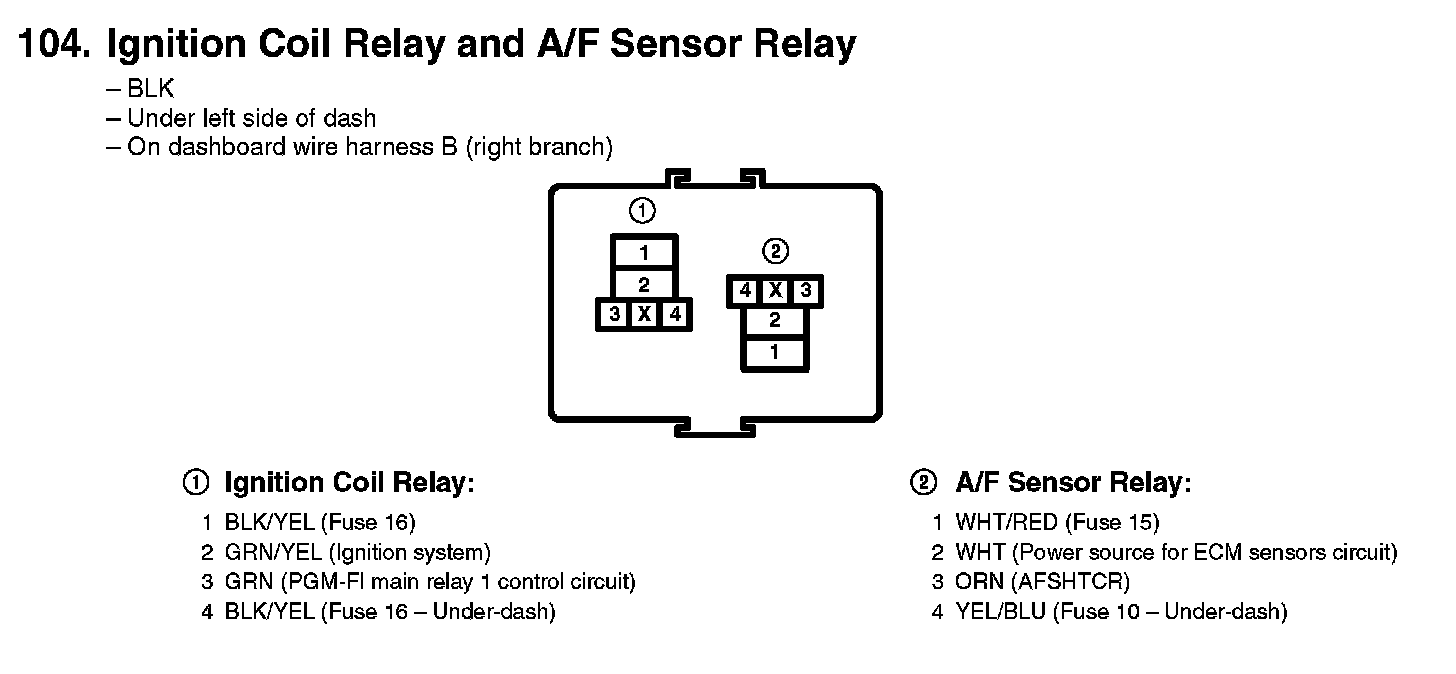

104. Ignition Coil Relay And A/F Sensor Relay:
