Home >> Honda >> 2007 >> S2000 L4-2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Diagrams

Oxygen Sensor: Diagrams

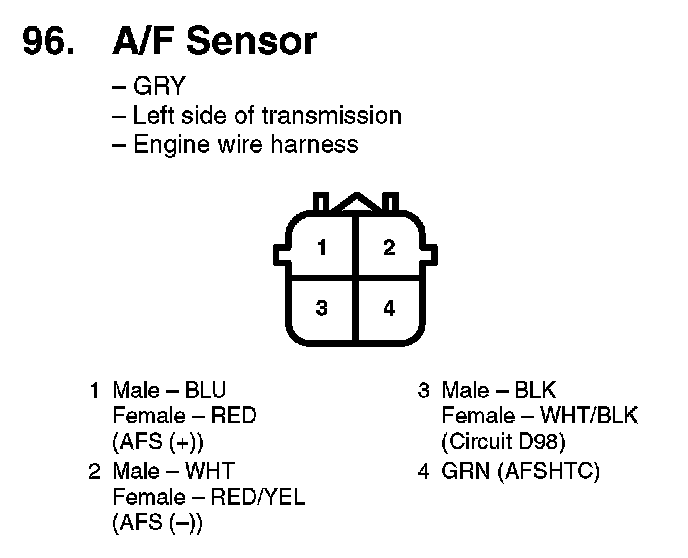

96. A/F Sensor:

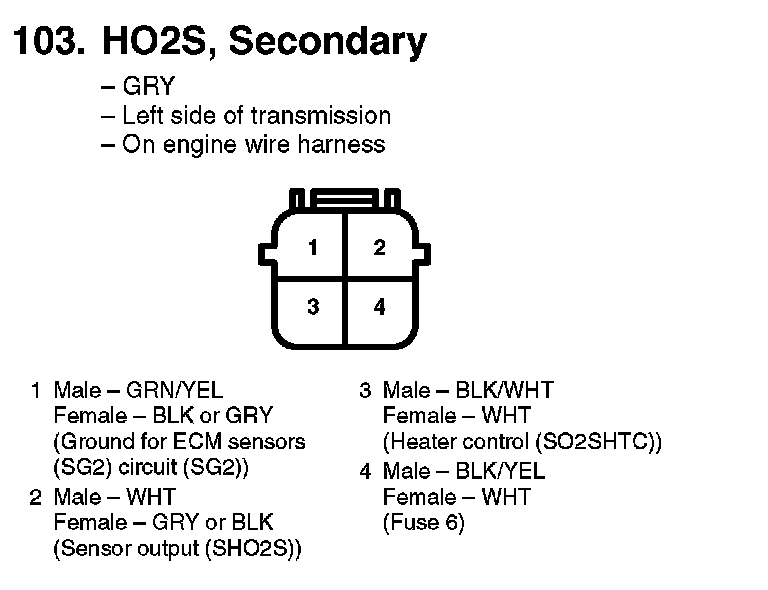

103. HO2S, Secondary:
