Component Locations

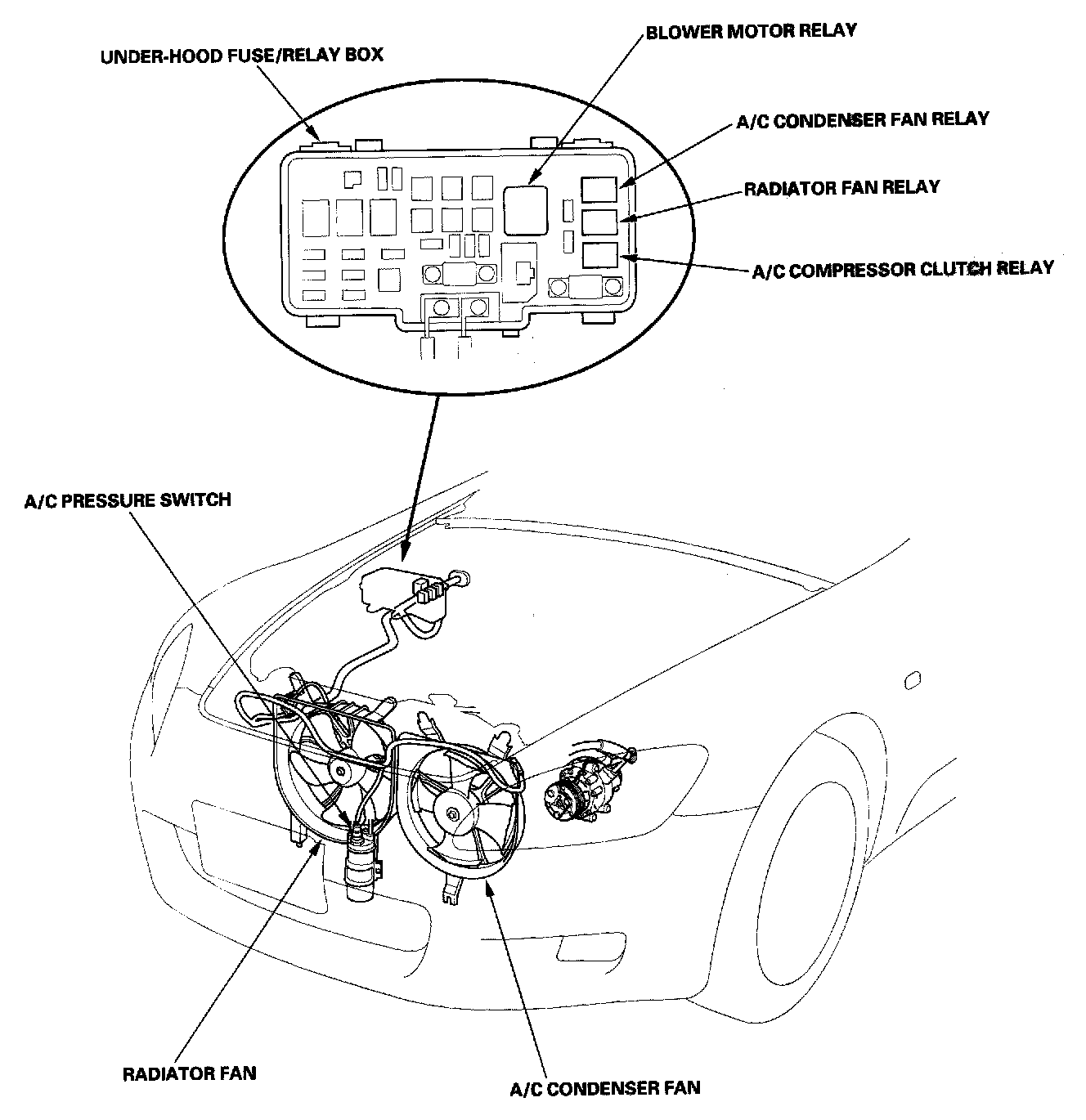

Heating/Air Conditioning - Component Location Index:



Relay And Control Unit Locations Engine Compartment:



Relay And Control Unit Locations Dashboard:

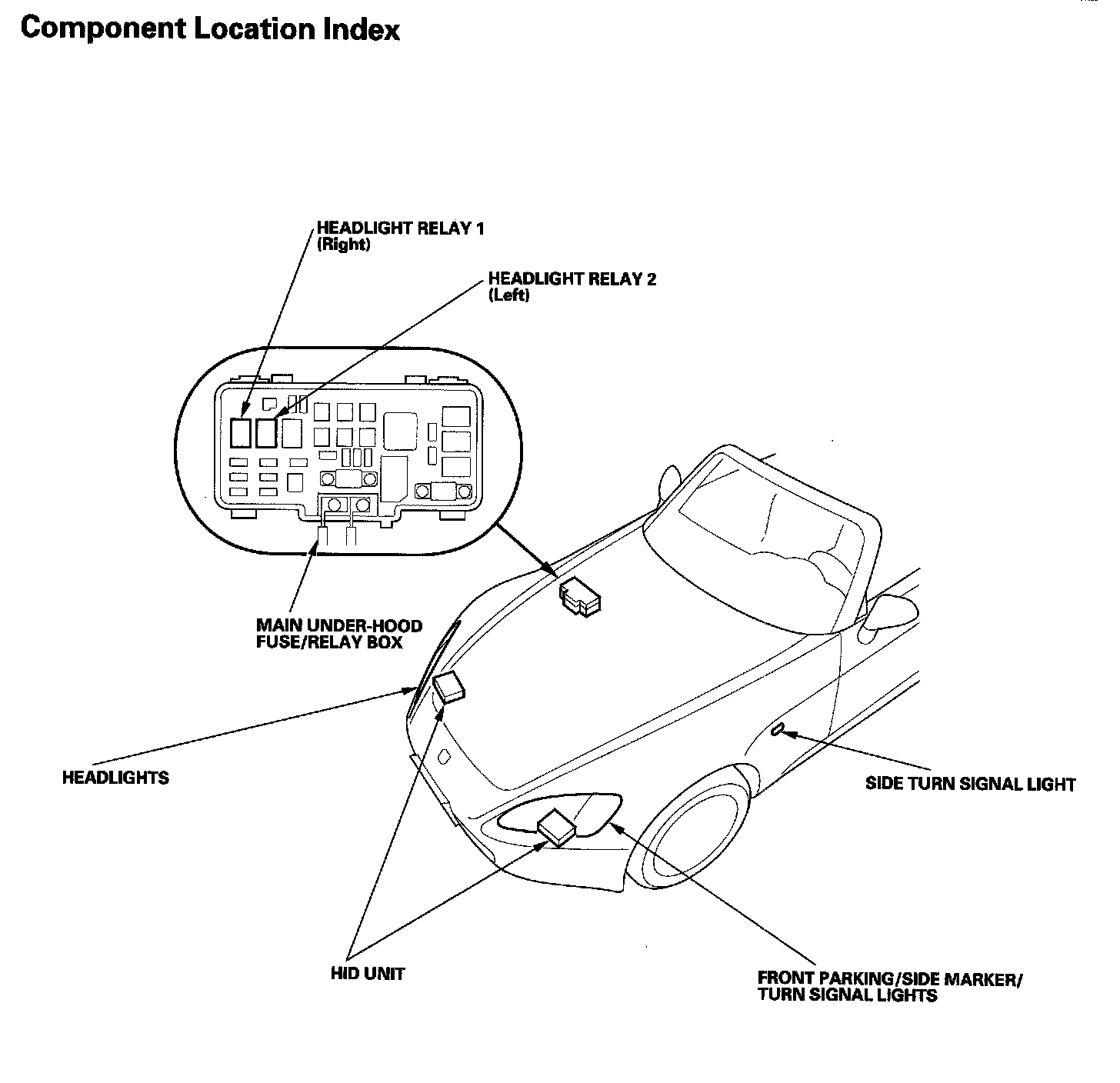

Exterior Lights Component Location Index:



Exterior Lights Component Location Index:

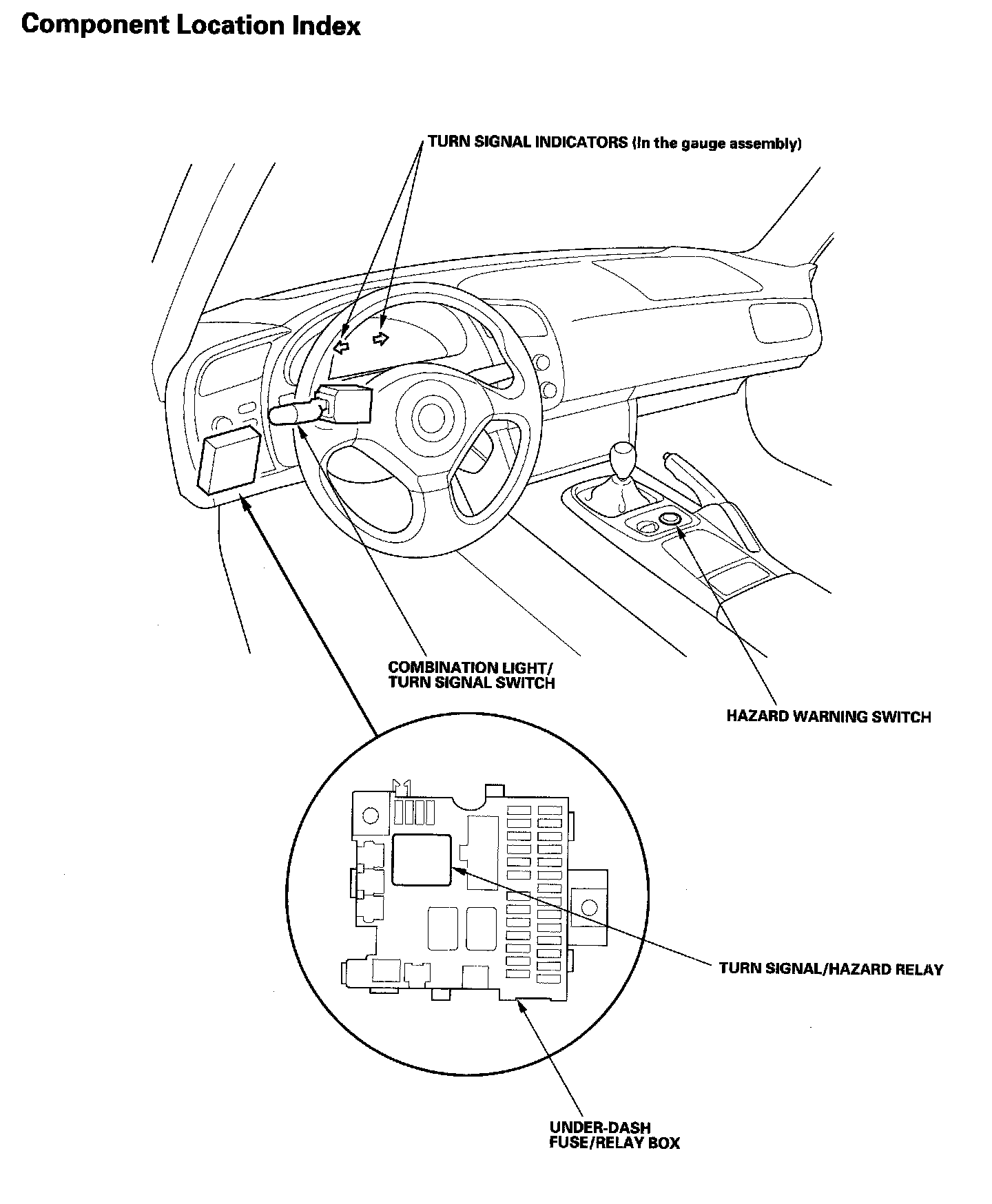

Turn Signal/Hazard Flasher Component Location Index:



Horns Component Location Index:

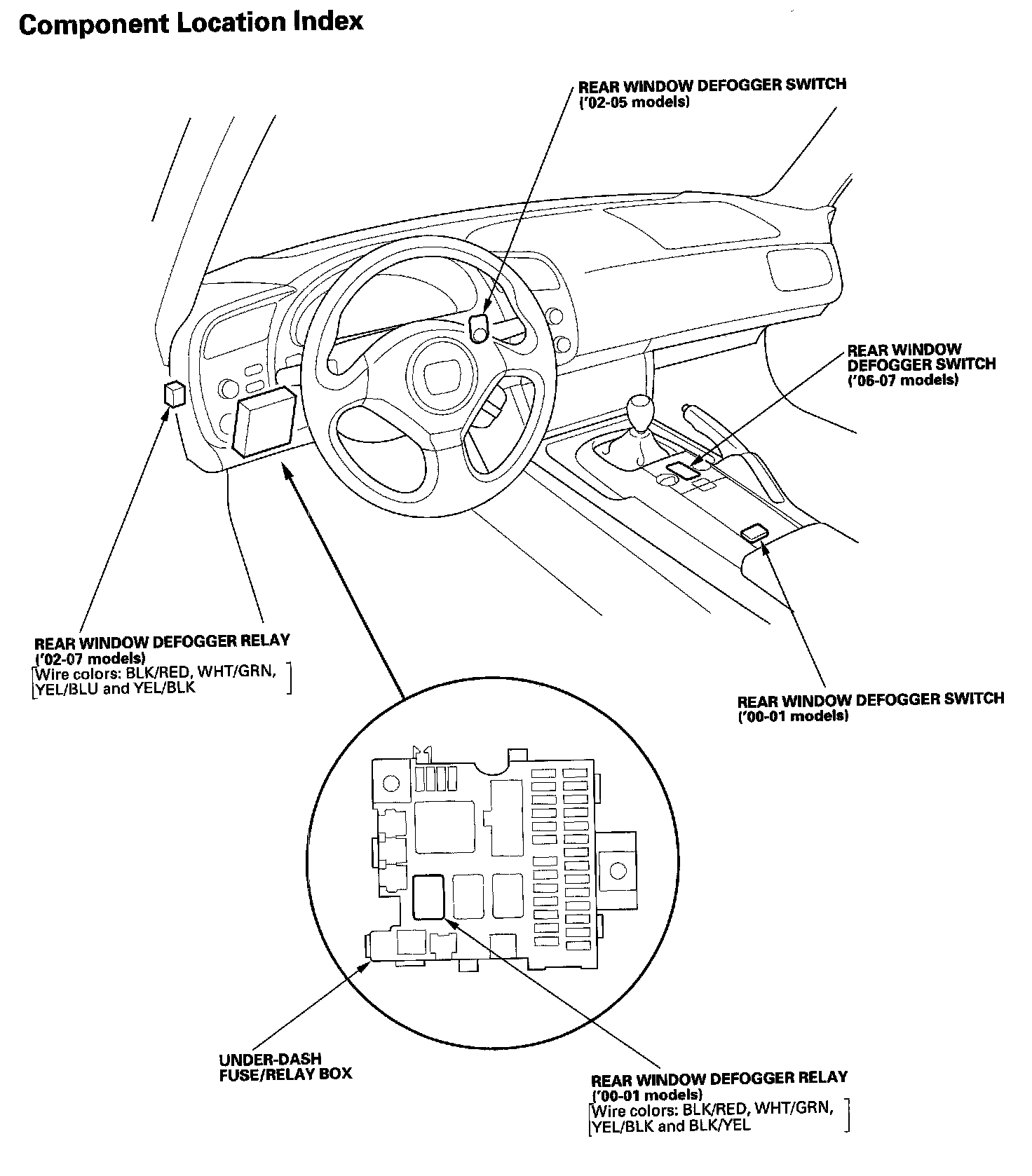

Rear Window Defogger Component Location Index:

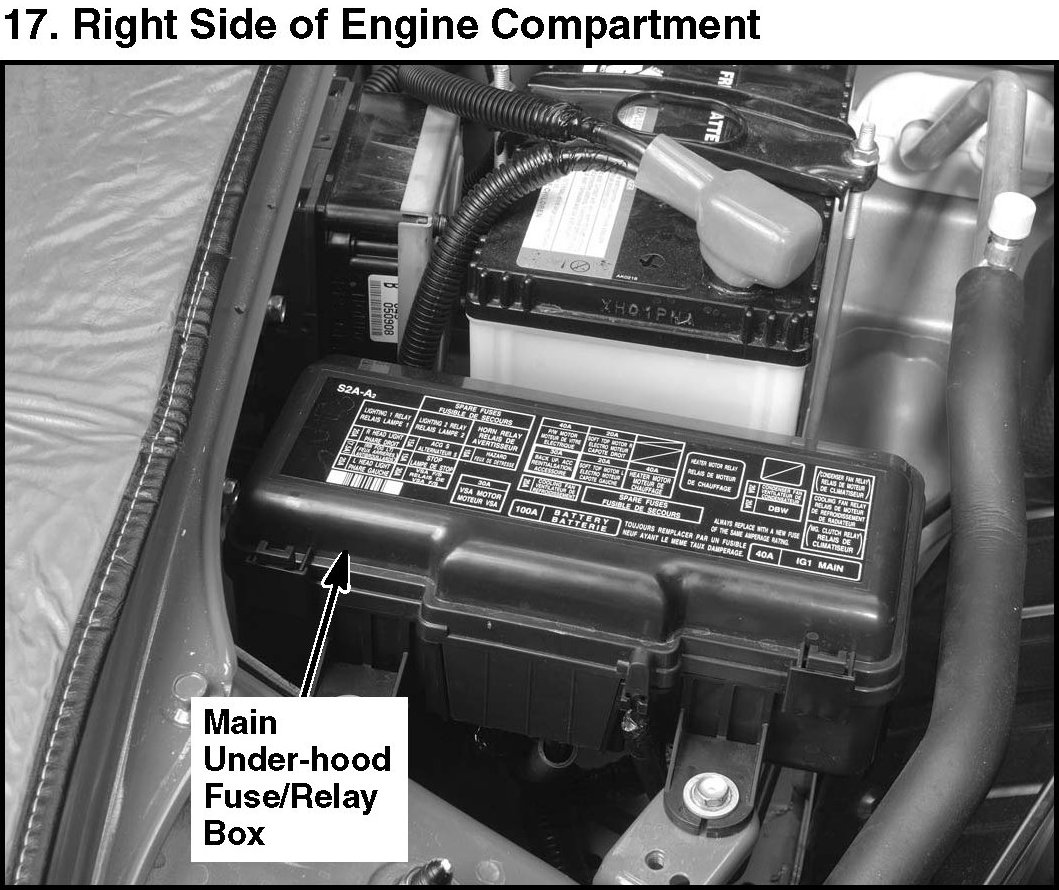

17. Right Side Of Engine Compartment:
