Drive Belt: Service and Repair

Drive Belt Replacement

Special Tools Required
Belt tension release tool Snap-on YA9317 or equivalent, commercially available

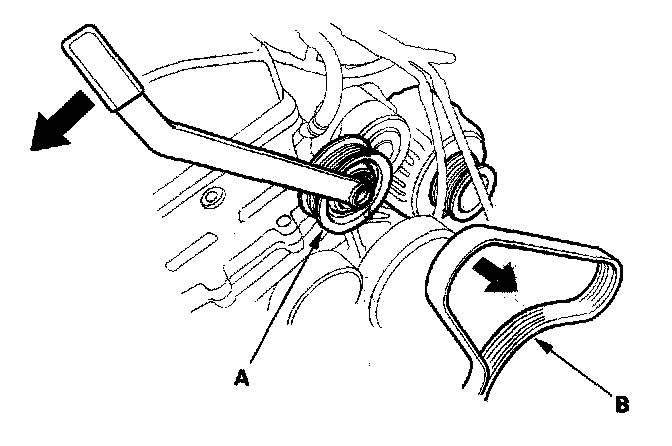

1. Move the auto-tensioner (A) to relieve tension from the drive belt (B), and remove the drive belt.
2. Install the new belt in the reverse order of removal.

NOTE: For belt routing, see the charging system component location index.
