Home >> Honda >> 2007 >> Ridgeline V6-3.5L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Instrument Panel Control Module >> Locations

Instrument Panel Control Module: Locations

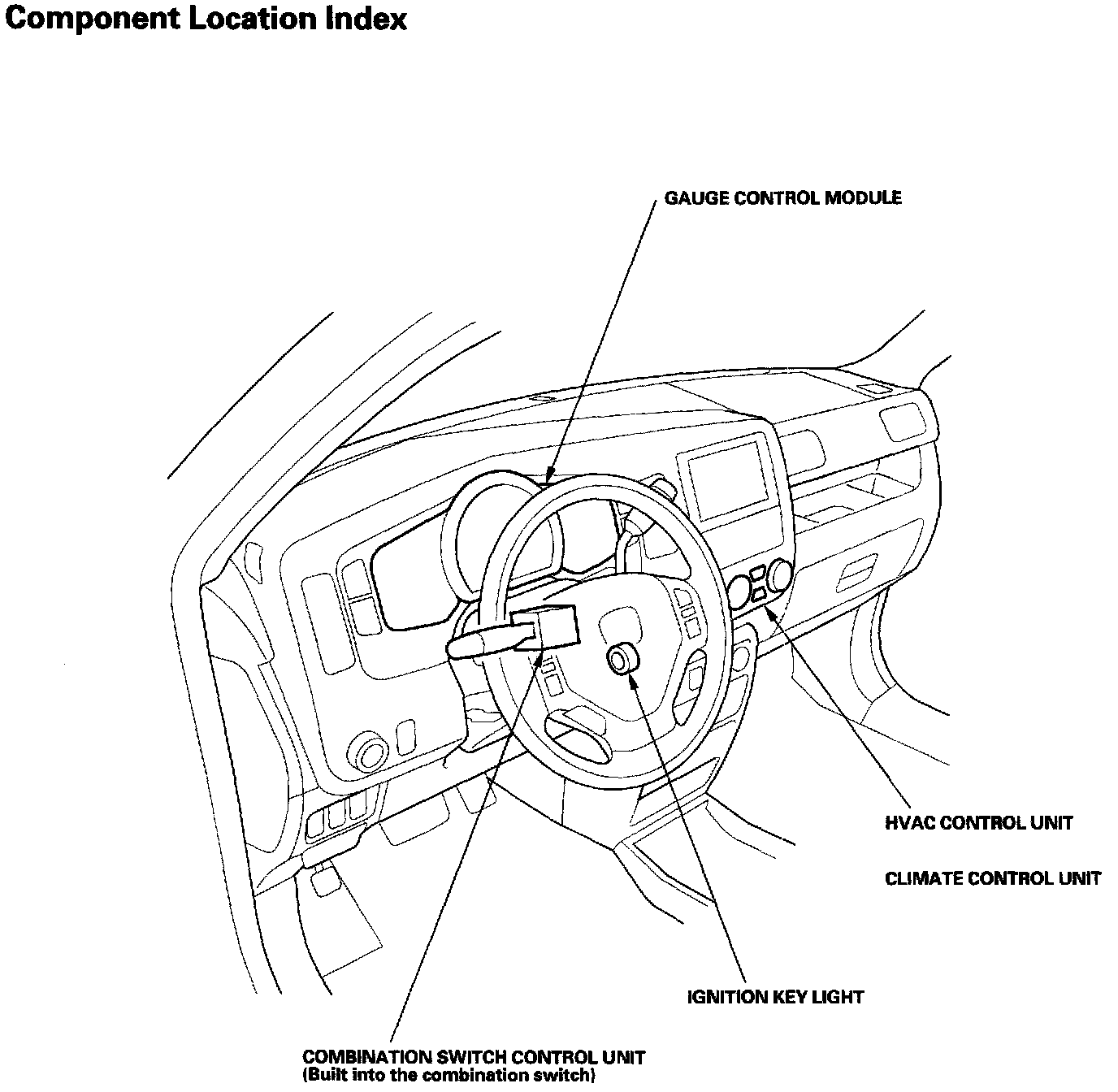

Multiplex Integrated Control System Component Location Index:

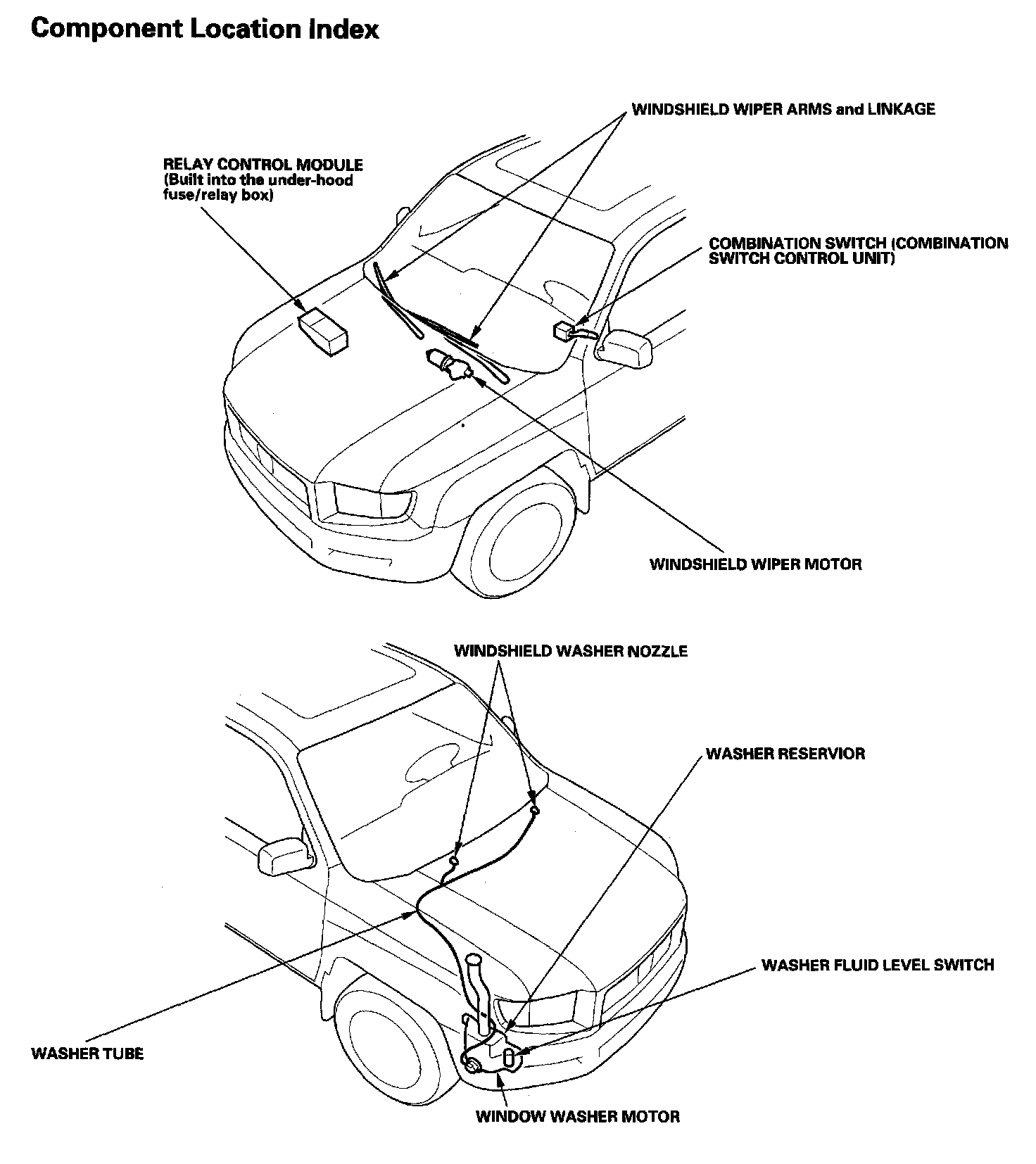

Wipers/Washers Component Location Index:

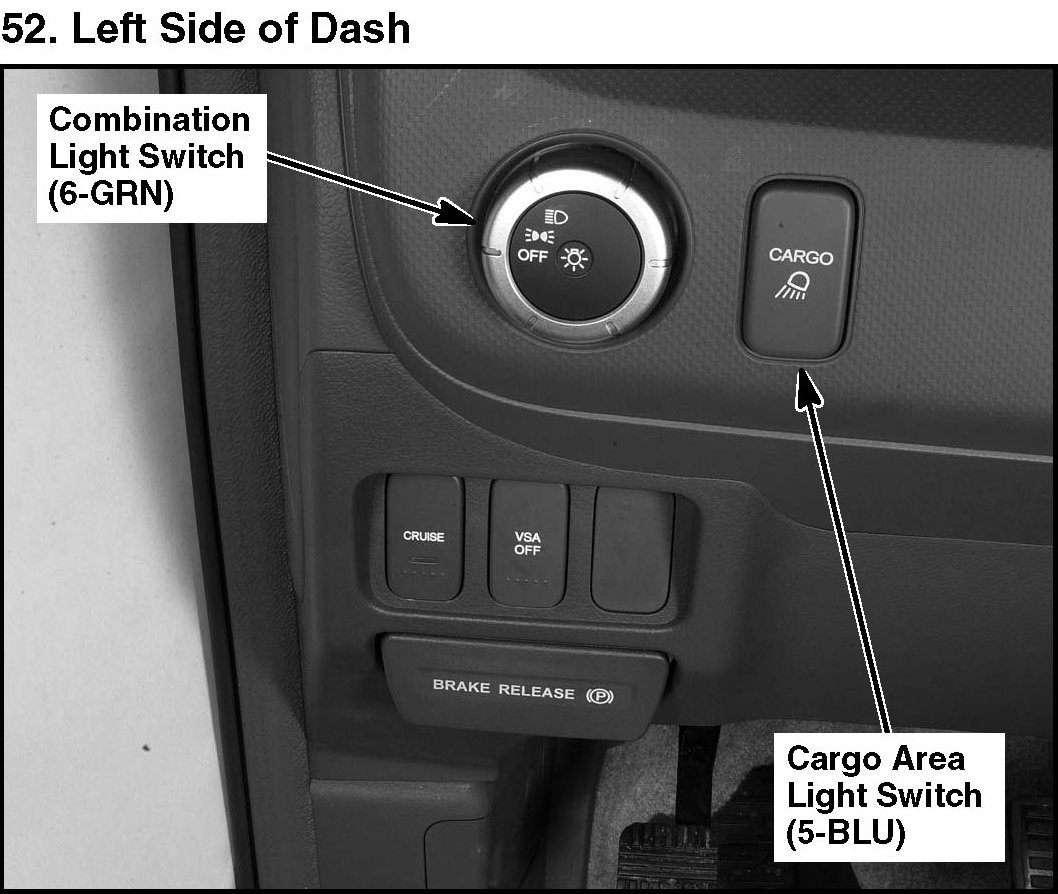

52. Left Side Of Dash:
