Home >> Honda >> 2007 >> Pilot 2WD V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Relay >> Diagrams

Ignition Relay: Diagrams

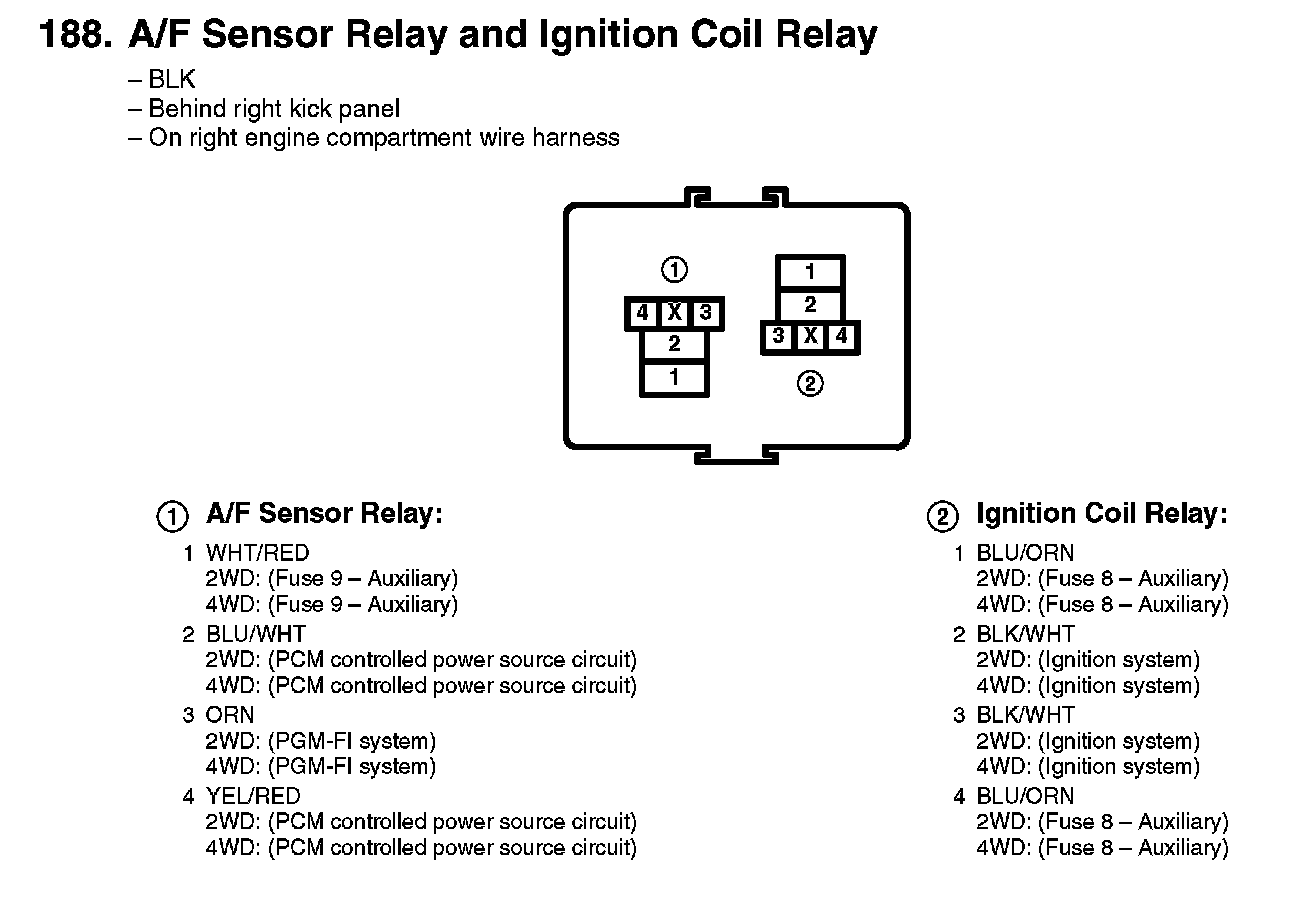

188. A/F Sensor Relay And Ignition Coil Relay:
