Home >> Honda >> 2007 >> Pilot 2WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Block Assembly

Cylinder Block Assembly

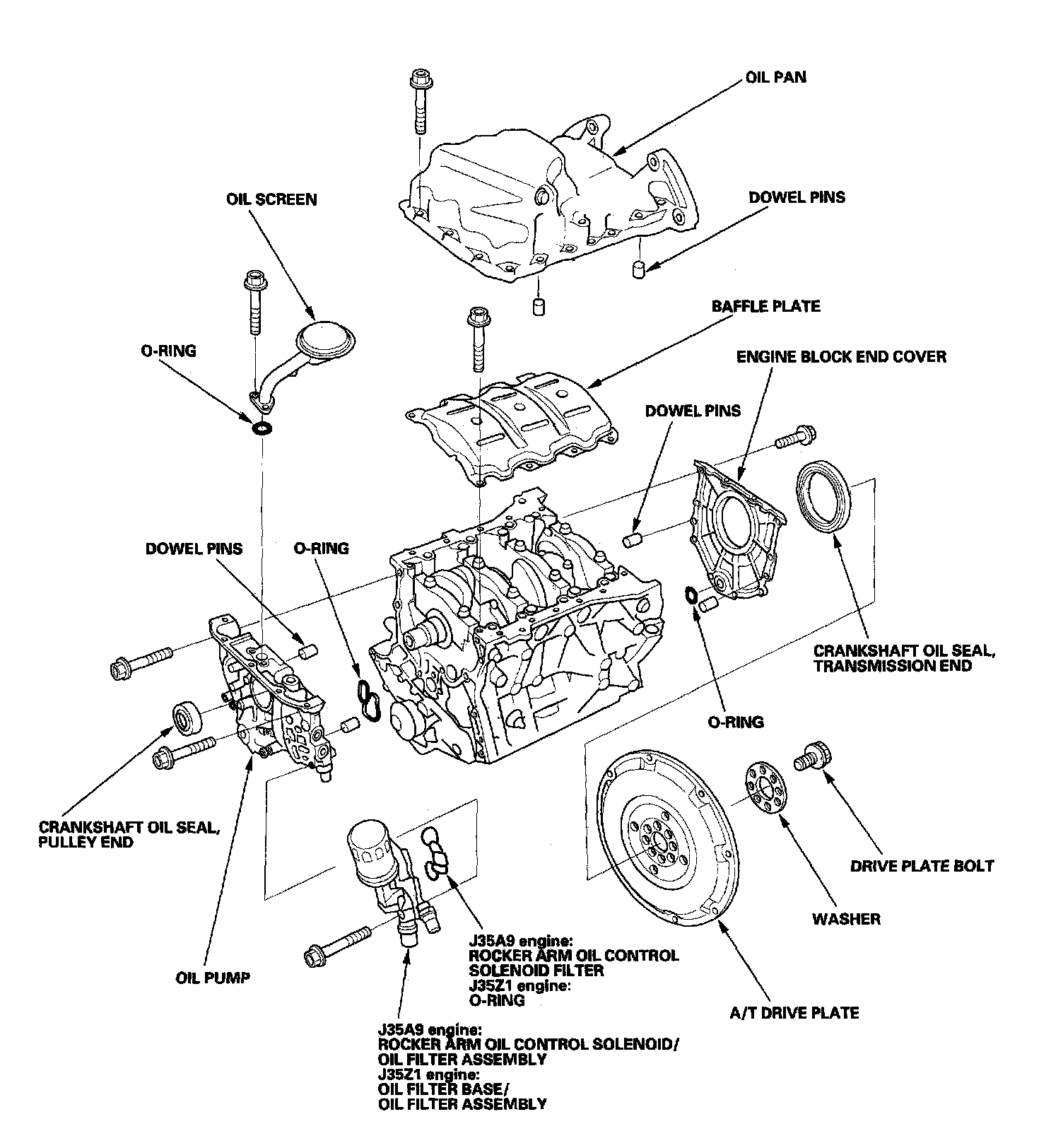

Engine Block Component Location Index:

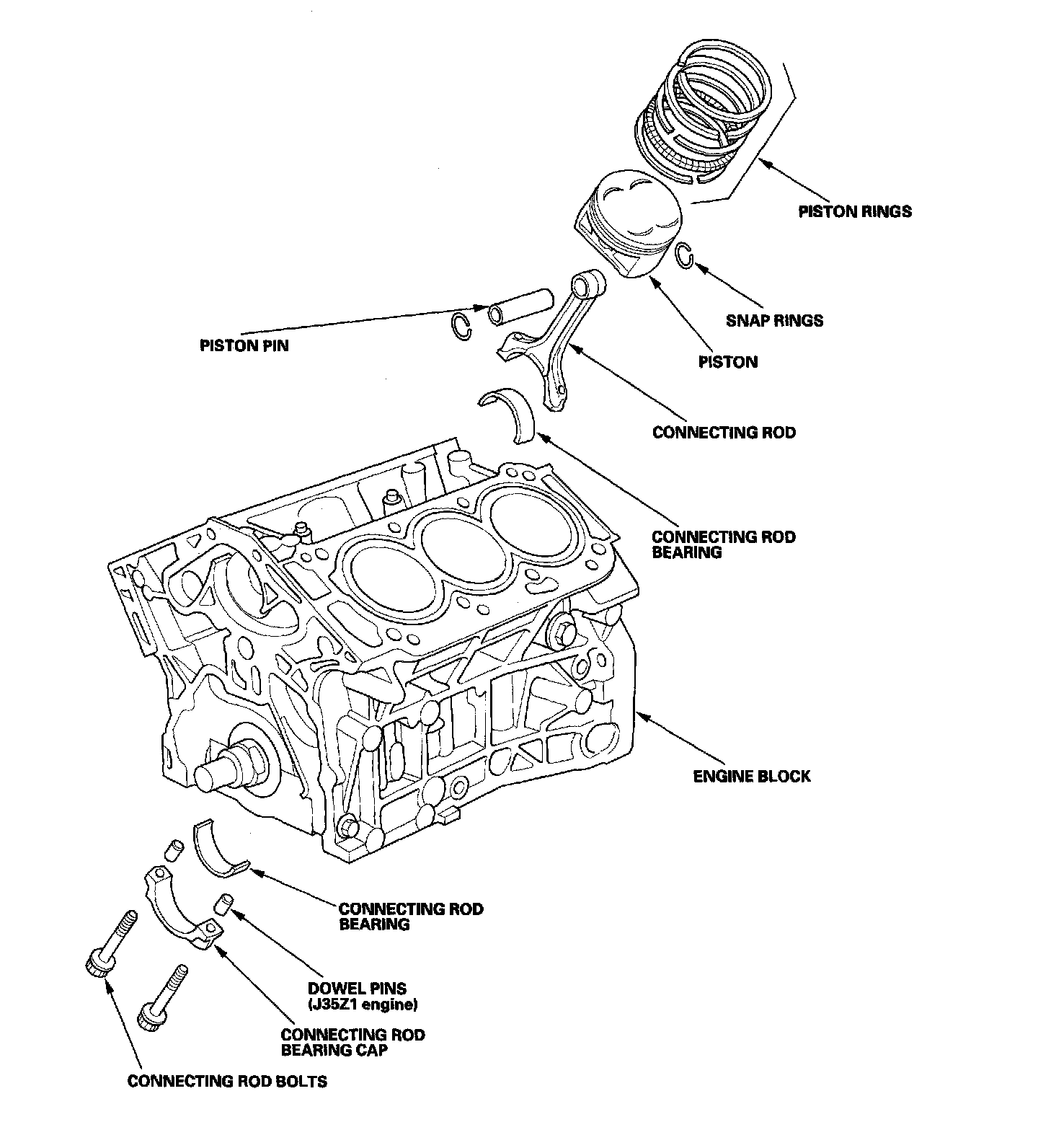

Engine Block Component Location Index:

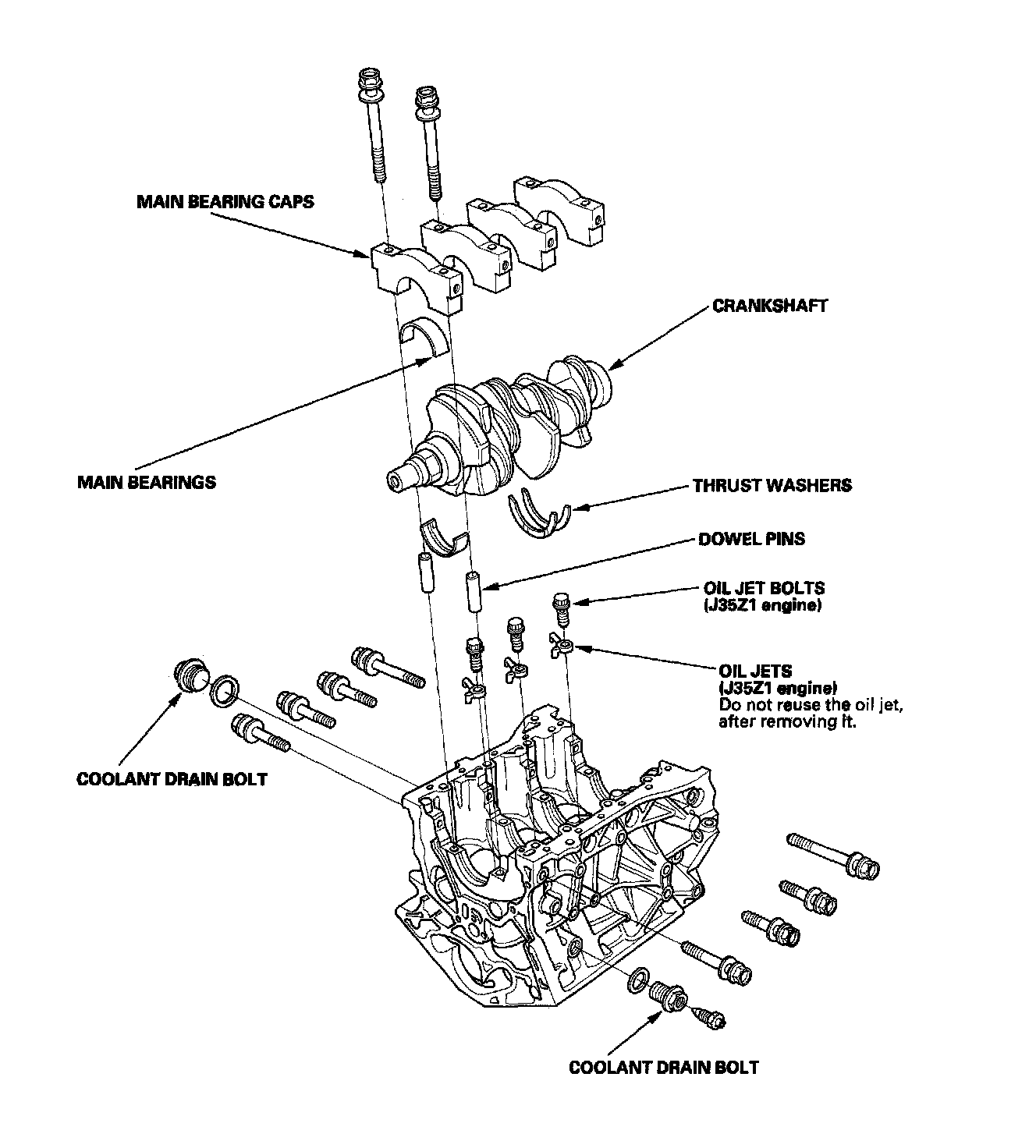

Engine Block Component Location Index:
