Trailer Lighting Module
Trailer Lighting Module

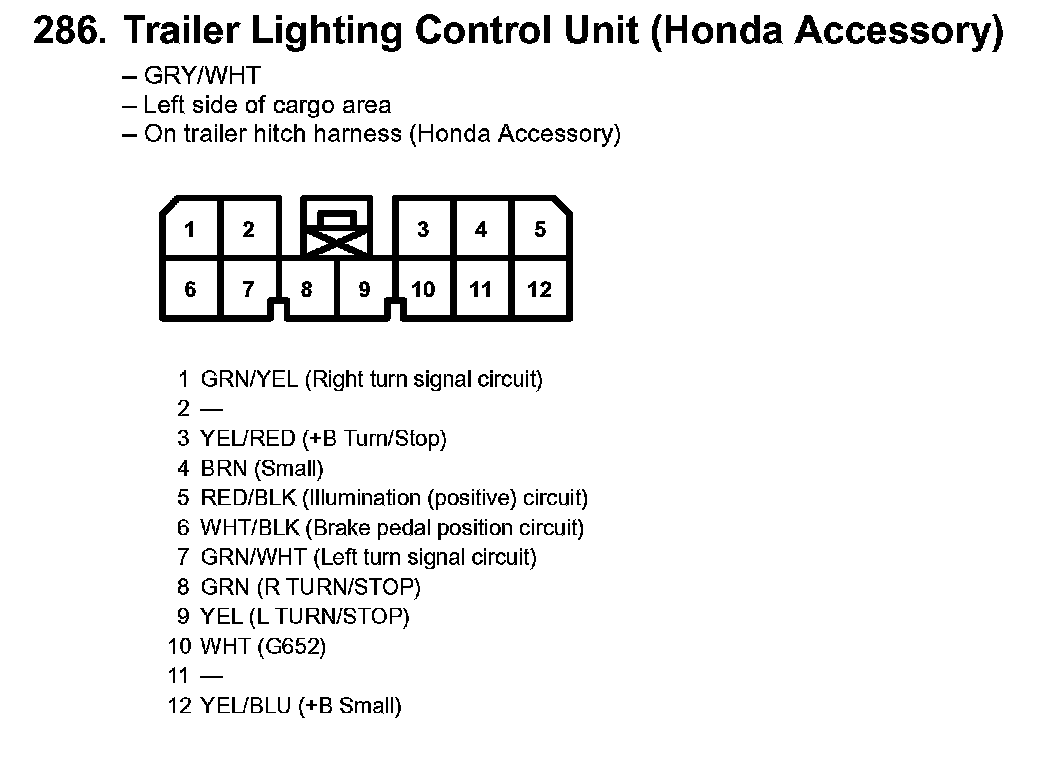

286. Trailer Lighting Control Unit (Honda Accessory):
