Home >> Honda >> 2007 >> Pilot 2WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Navigation System >> Navigation Display

Navigation Display

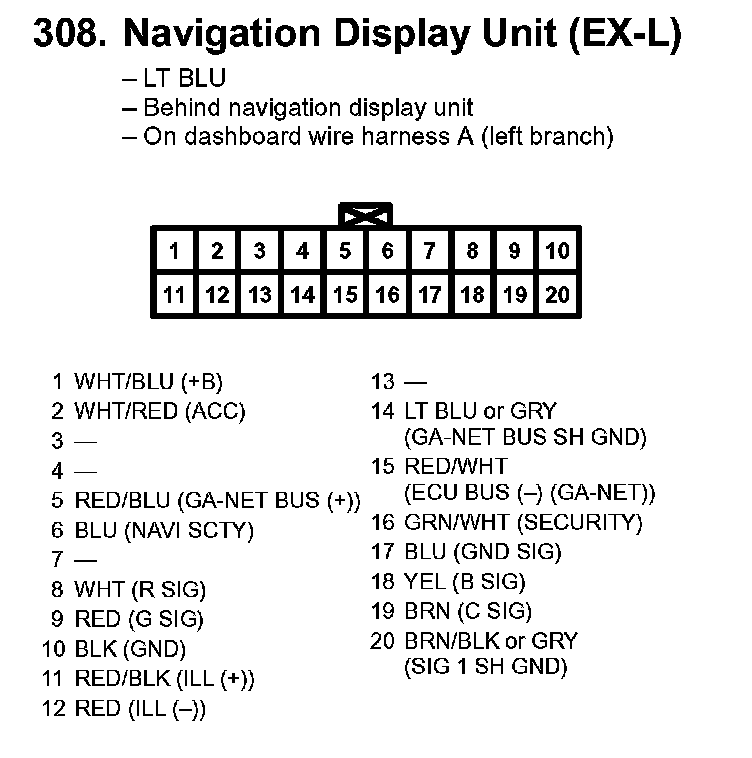

308. Navigation Display Unit (EX-L):
