Map Light
Map Light

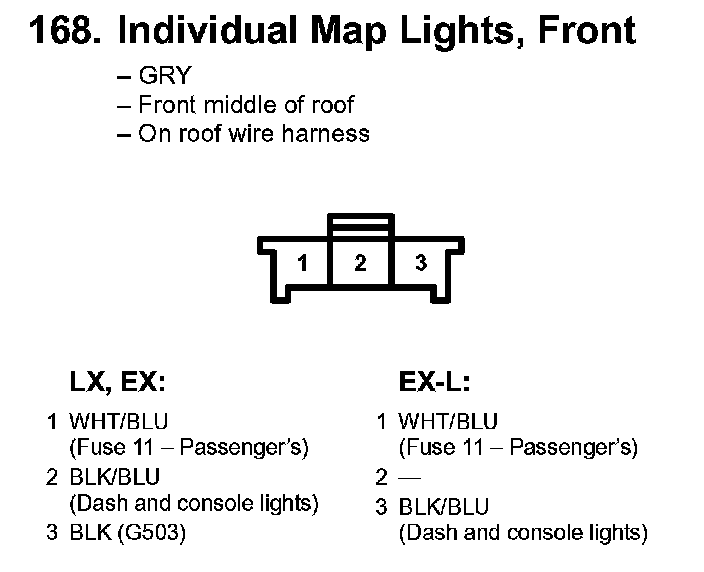

168. Individual Map Lights, Front:

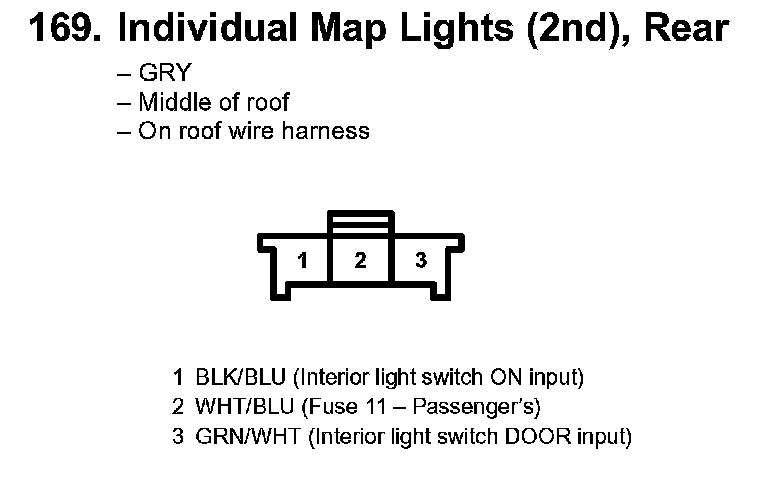

169. Individual Map Lights (2nd), Rear:

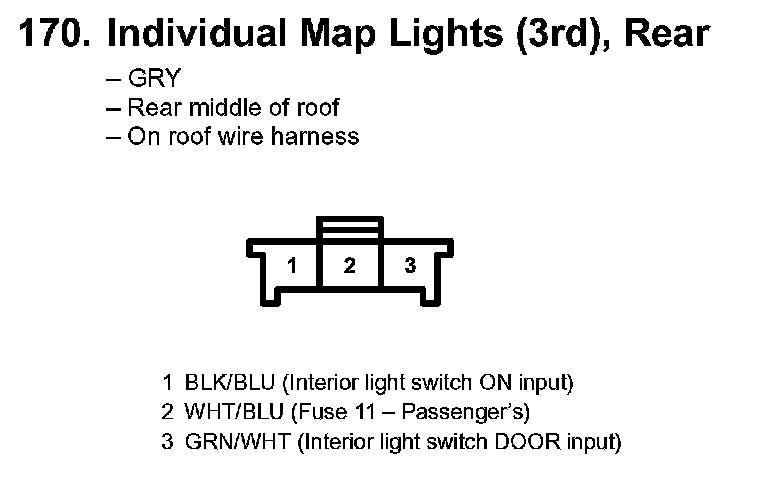

170. Individual Map Lights (3rd), Rear:
