Entertainment System Control Panel
Entertainment System Control Panel

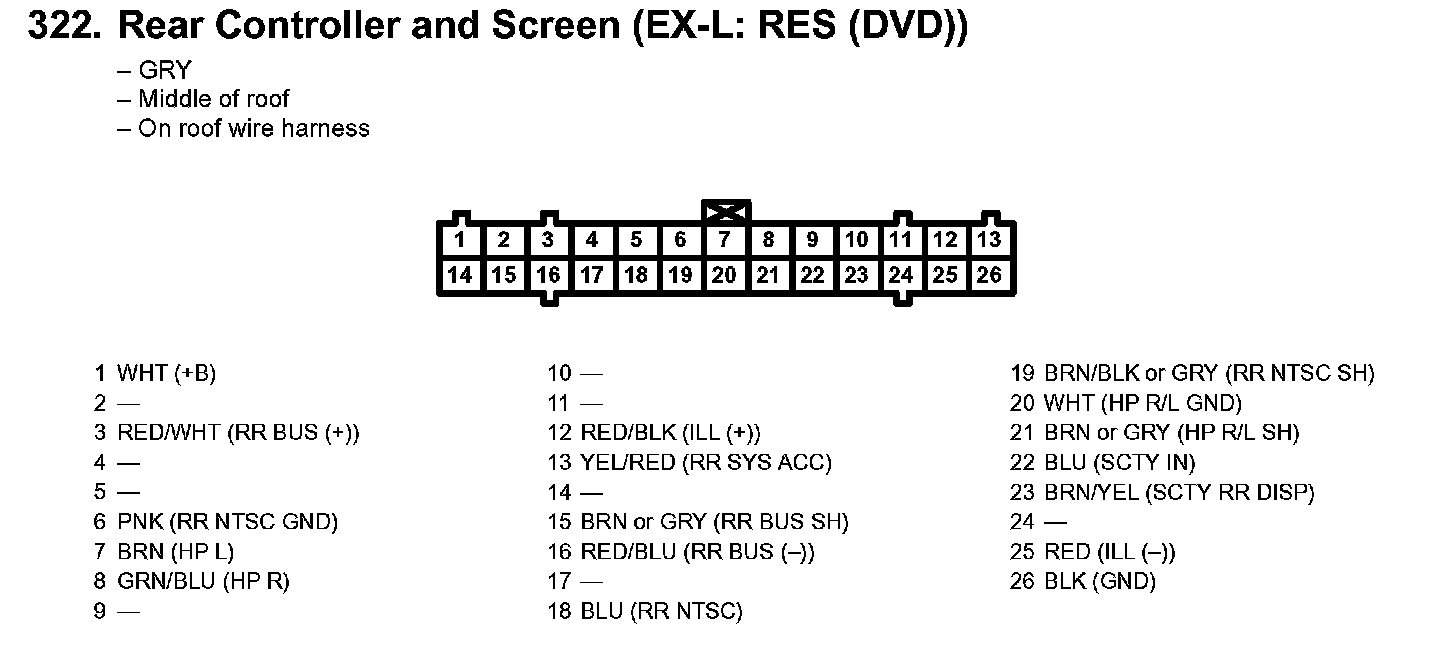

322. Rear Controller And Screen (EX-L: RES (DVD)):
