Collision Avoidance Sensor

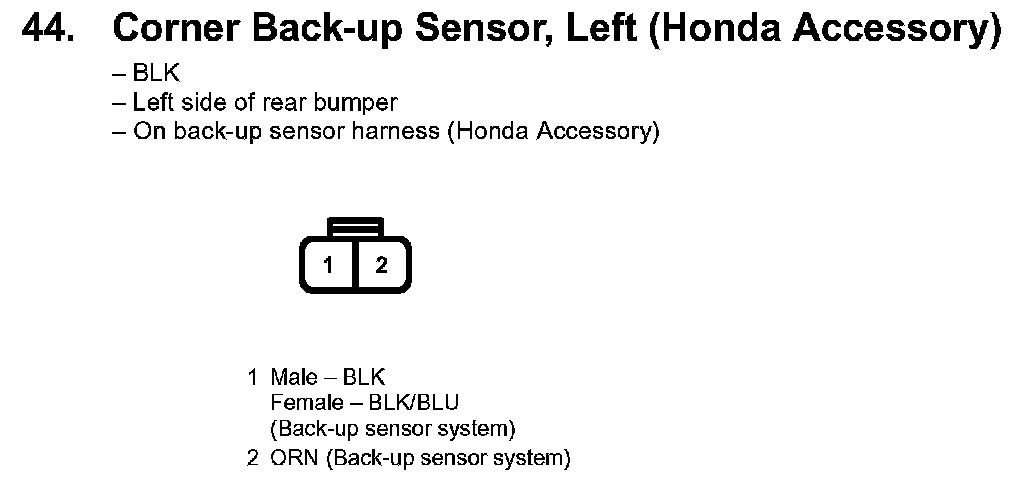

44. Corner Back-up Sensor, Left (Honda Accessory):

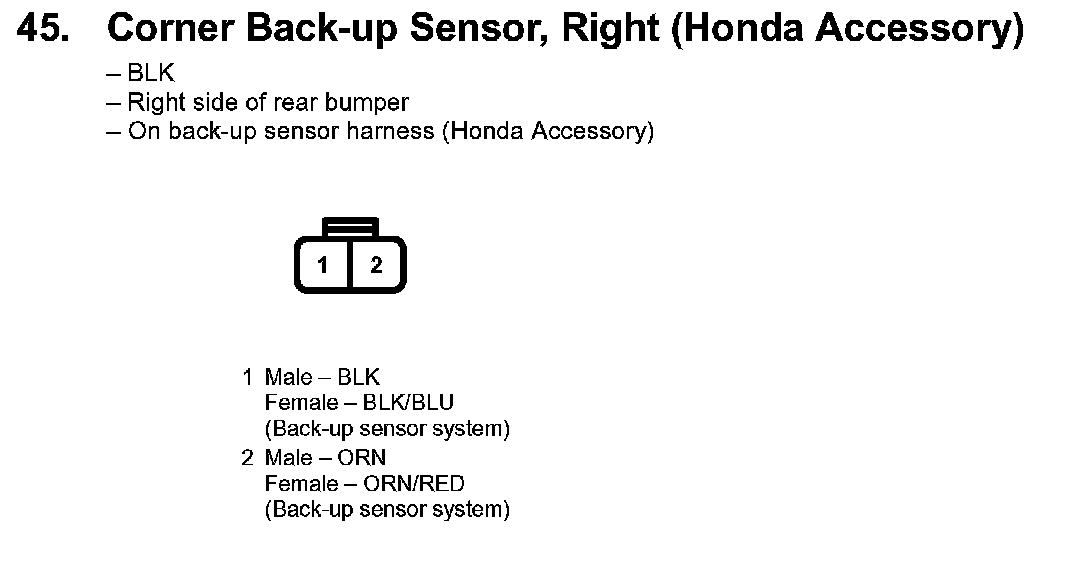

45. Corner Back-up Sensor, Right (Honda Accessory):

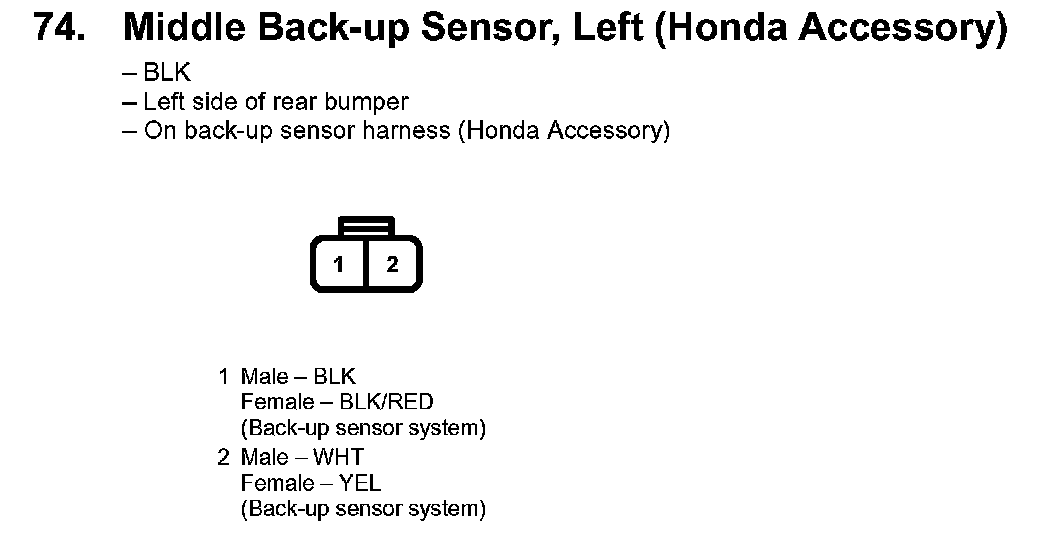

74. Middle Back-up Sensor, Left (Honda Accessory):

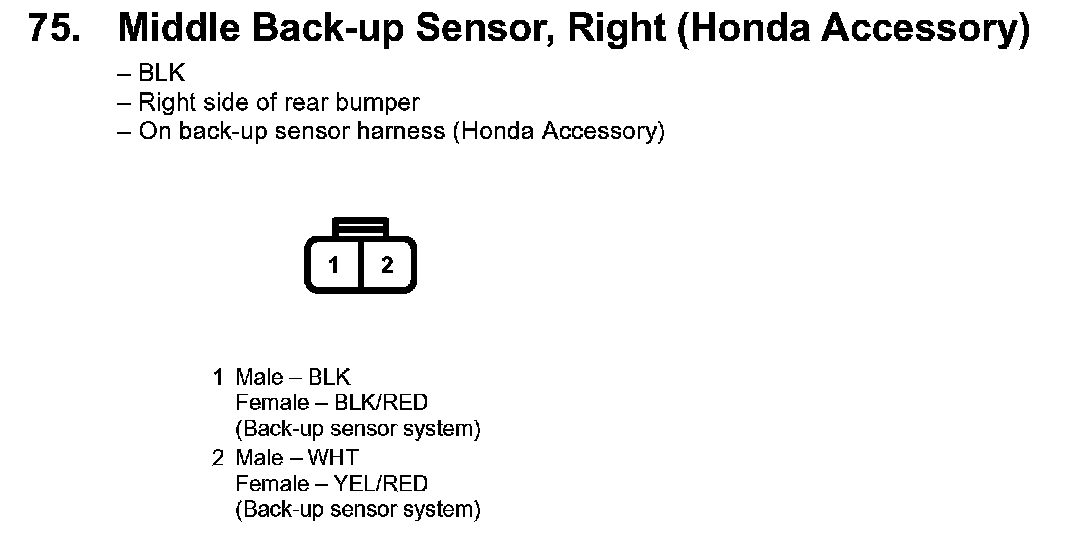

75. Middle Back-up Sensor, Right (Honda Accessory):

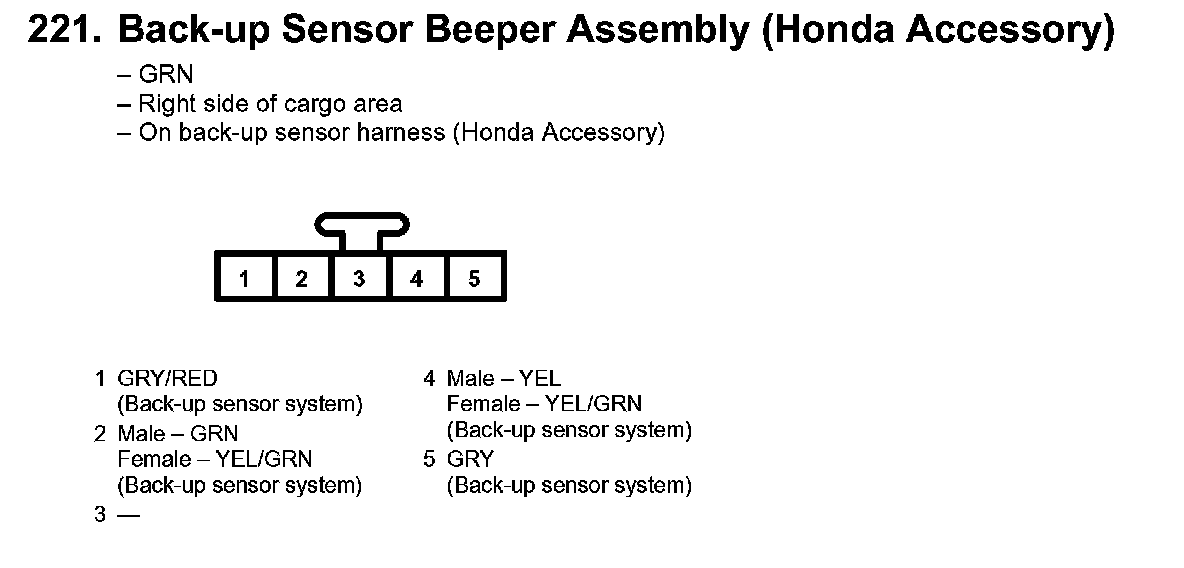

221. Back-up Sensor Beeper Assembly (Honda Accessory):
