Honda
>>
2007
>>
Pilot 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

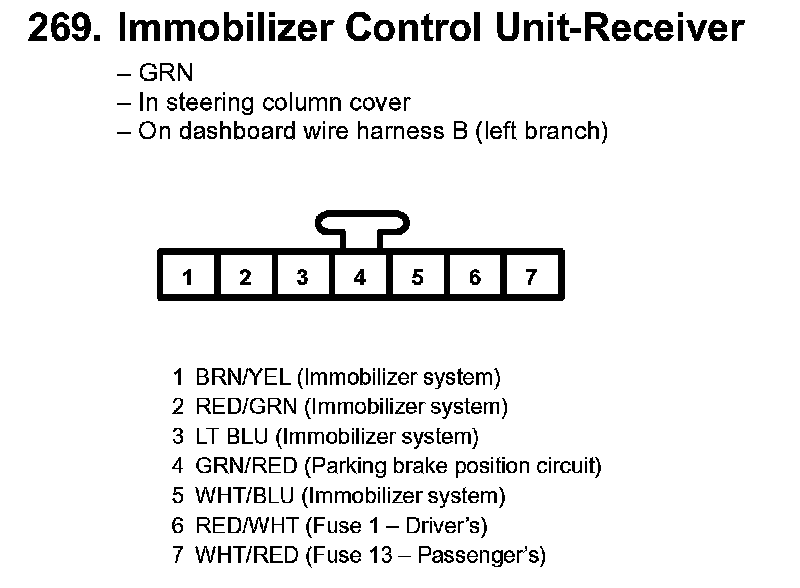

269. Immobilizer Control Unit-Receiver:

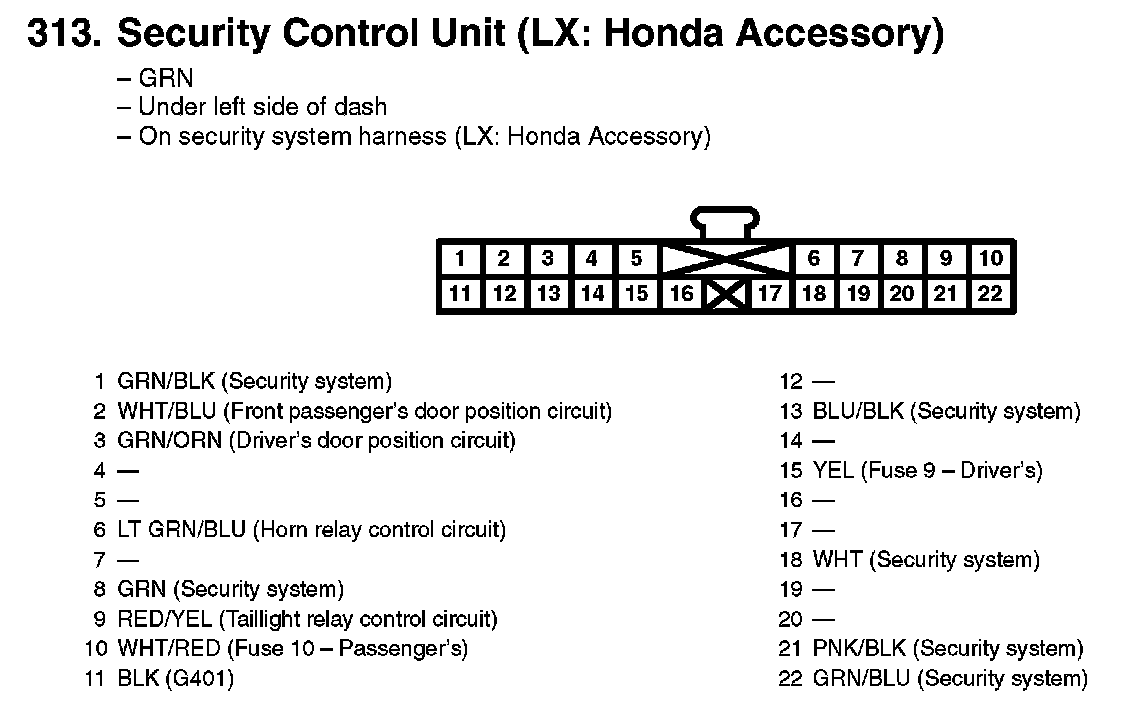

313. Security Control Unit (LX: Honda Accessory):
