Instrument Panel Control Module: Service and Repair

Gauge Control Module Replacement

1. Remove the instrument panel.

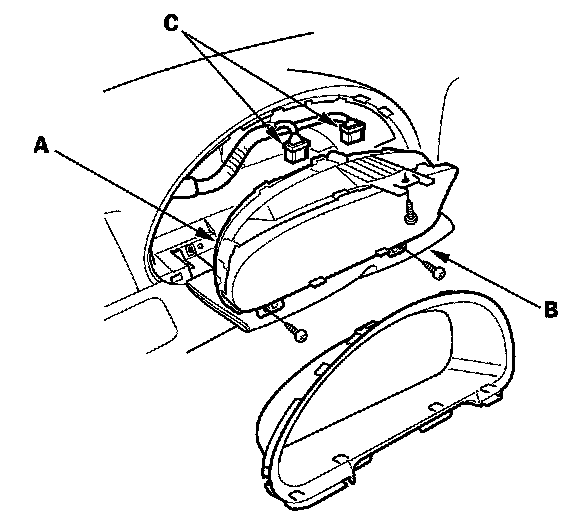

2. Remove the screws from the gauge control module (A), and spread a protective cloth (B) on the upper column cover.
3. Disconnect the connectors (C), and remove the gauge control module.
4. Install the gauge in the reverse order of removal.
