Home >> Honda >> 2007 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Intake Manifold

Intake Manifold

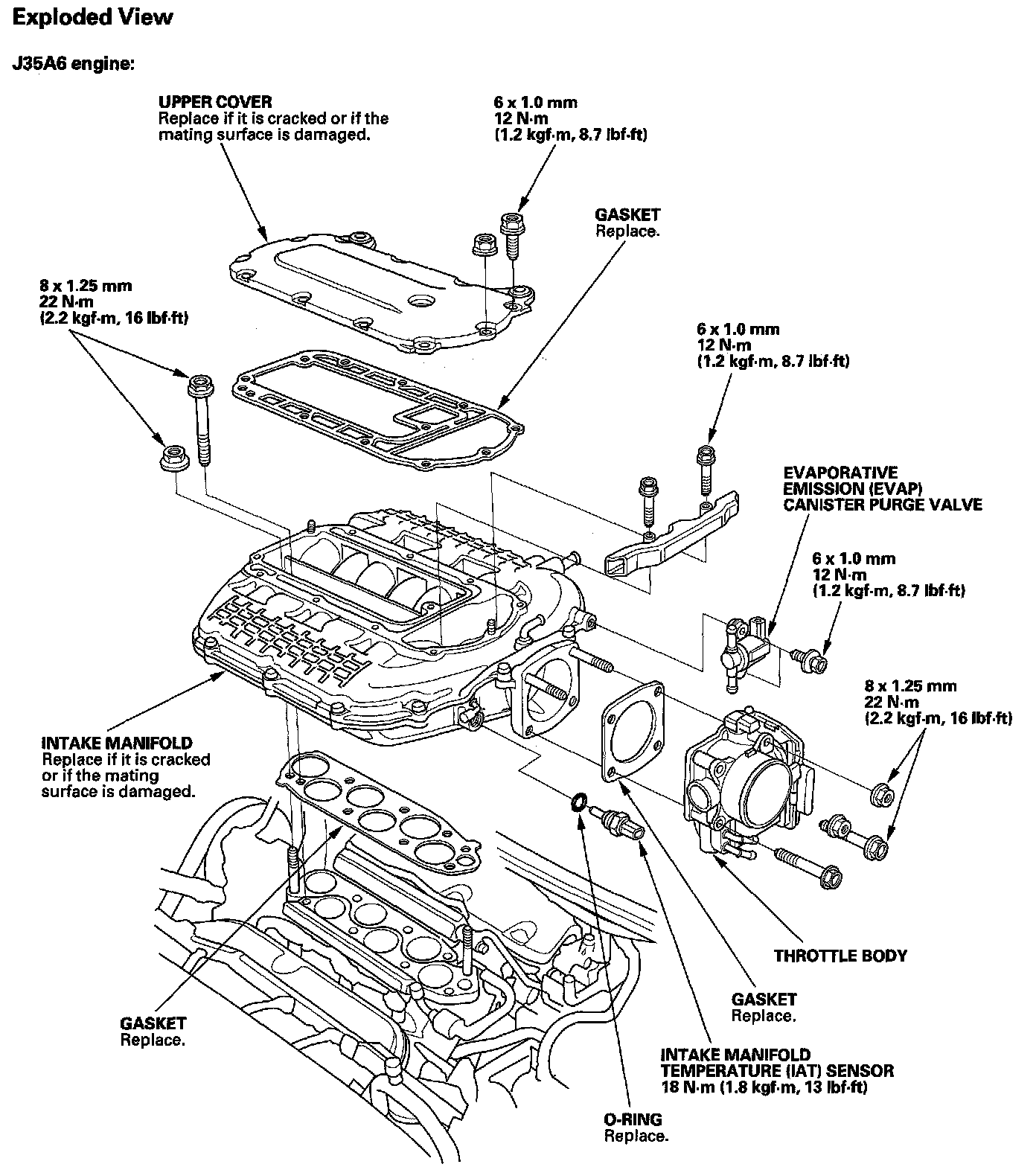

Intake Manifold (J35A6):

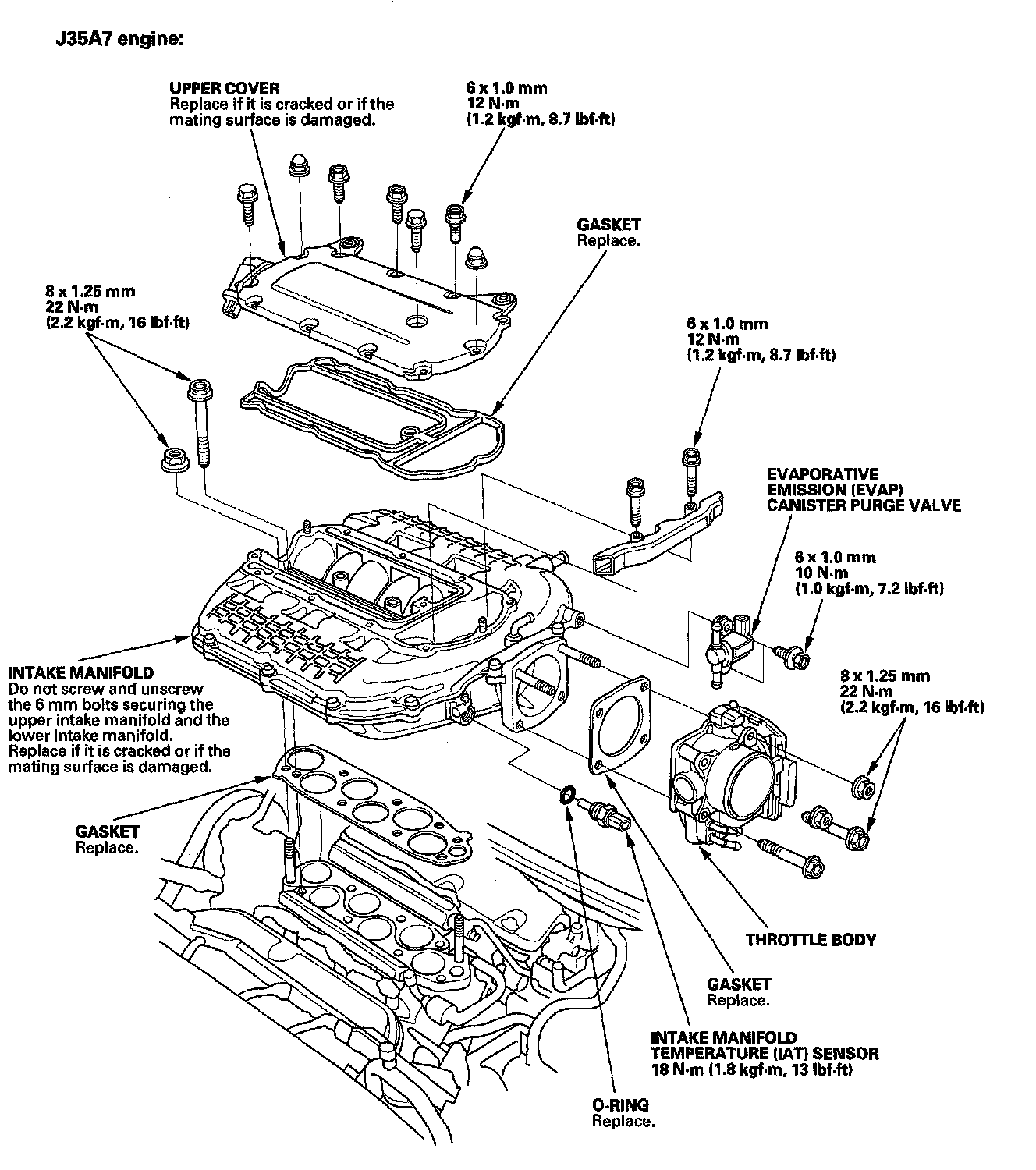

Intake Manifold (J35A7):
