Home >> Honda >> 2007 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Block Assembly >> J35A7 Engine

J35A7 Engine

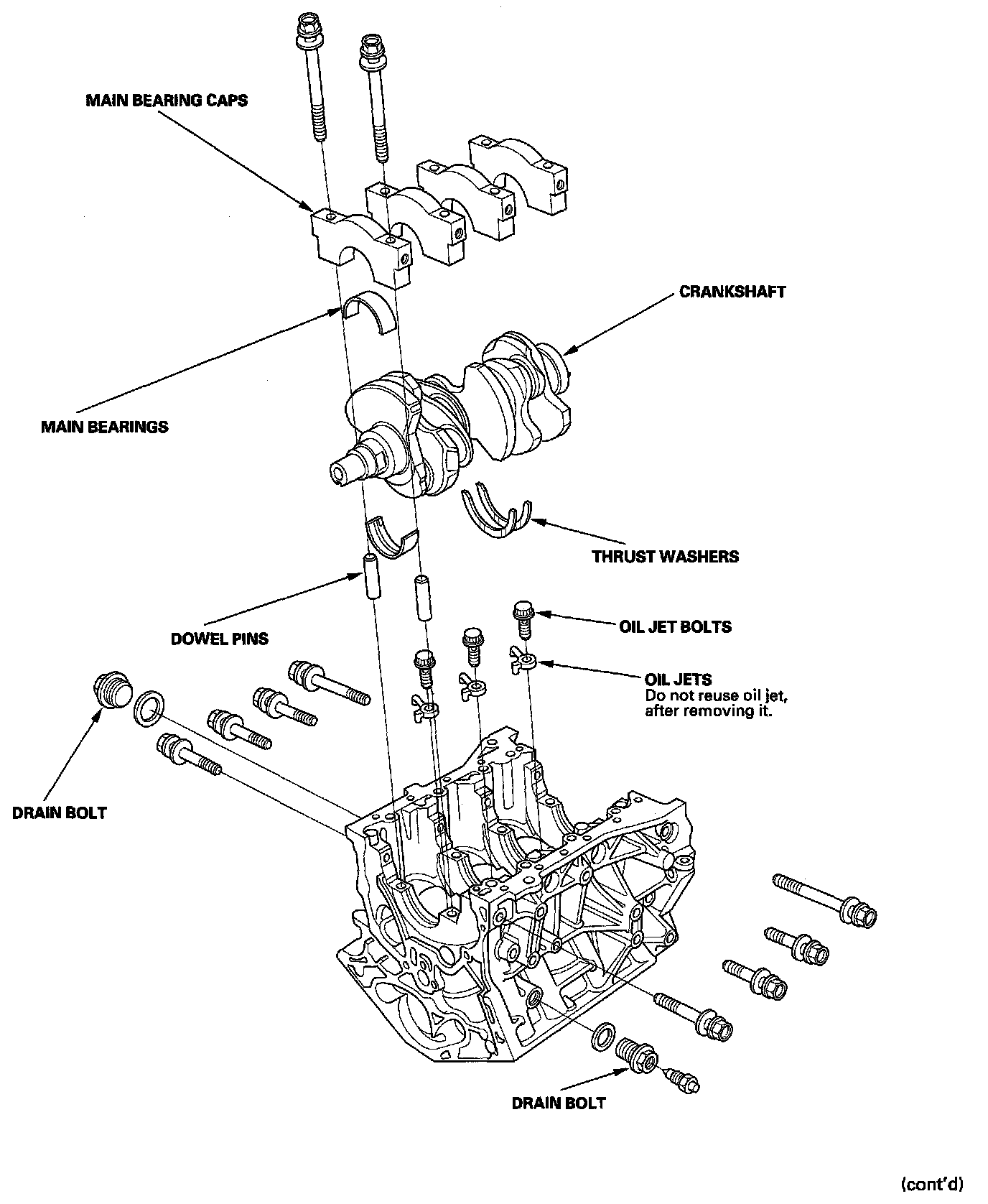

Engine Block Component Location Index (Part 1):

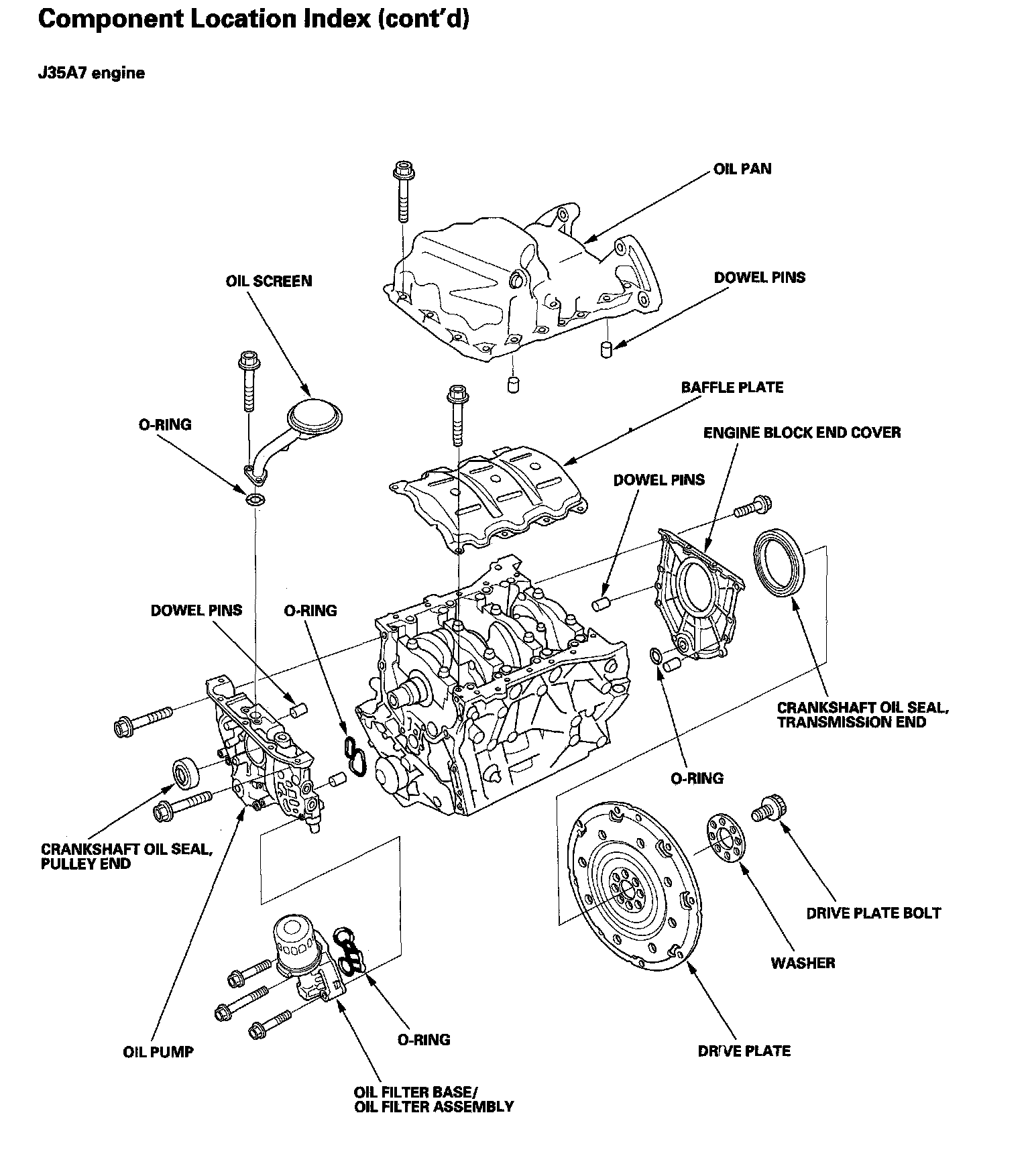

Engine Block Component Location Index (Part 2):

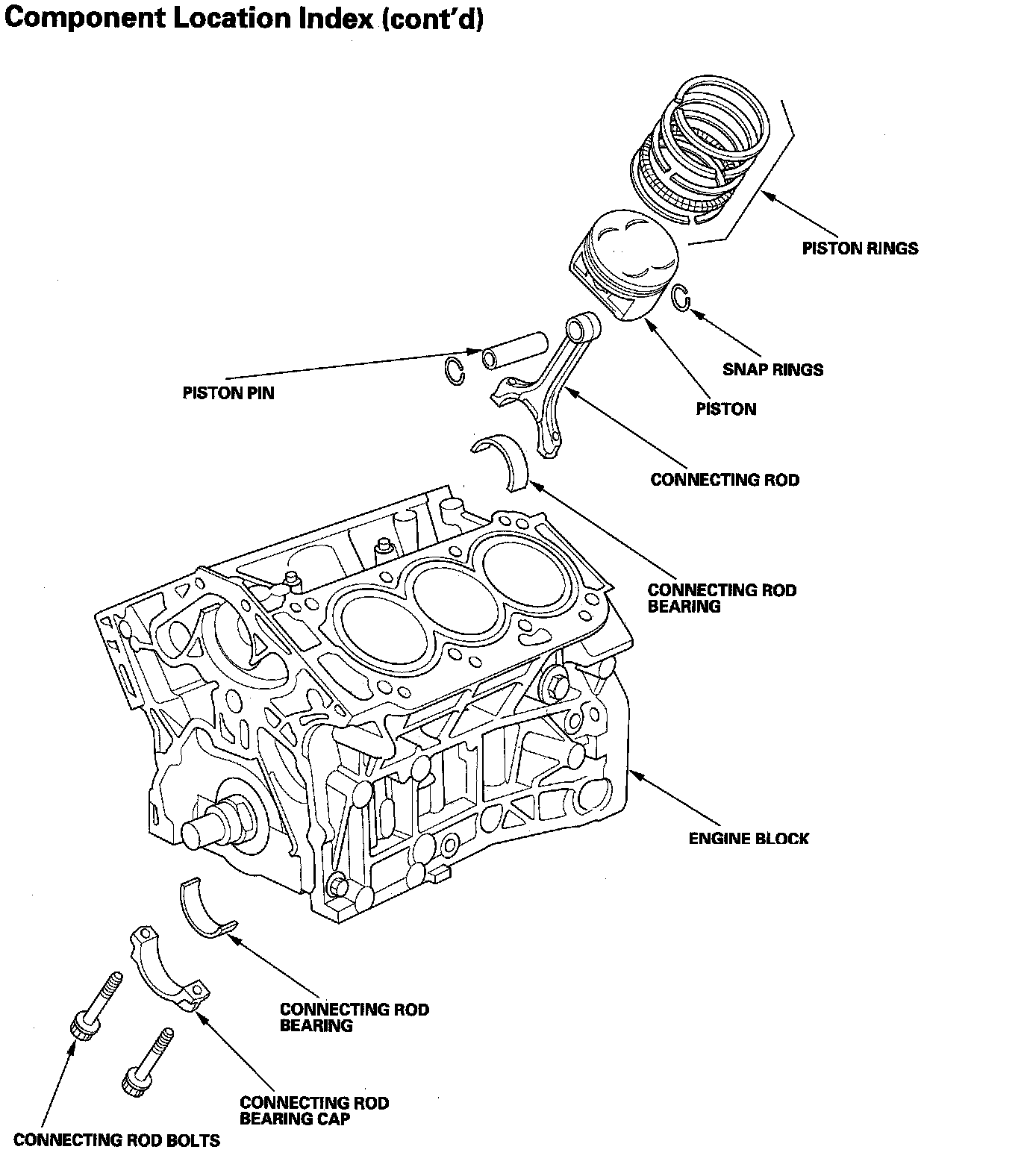

Engine Block Component Location Index (Part 3):
