Trailer Lighting Module
Trailer Lighting Module

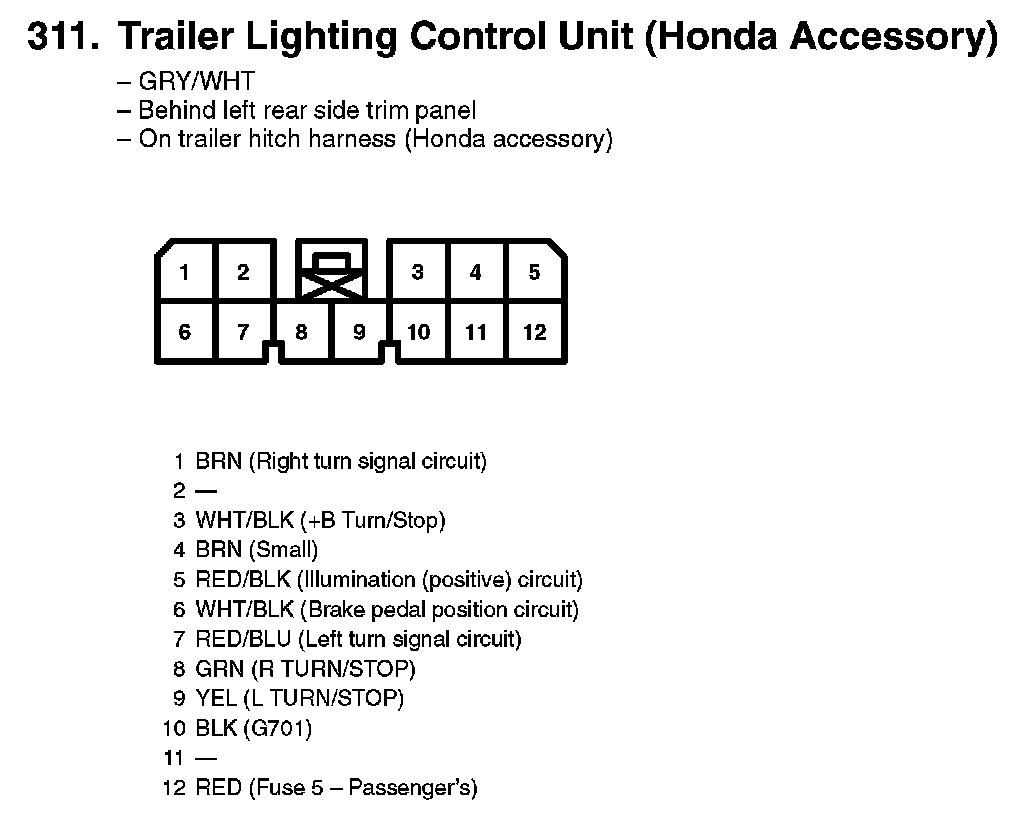

311. Trailer Lighting Control Unit (Honda Accessory):
