Power Trunk / Liftgate Control Module
Power Trunk / Liftgate Control Module

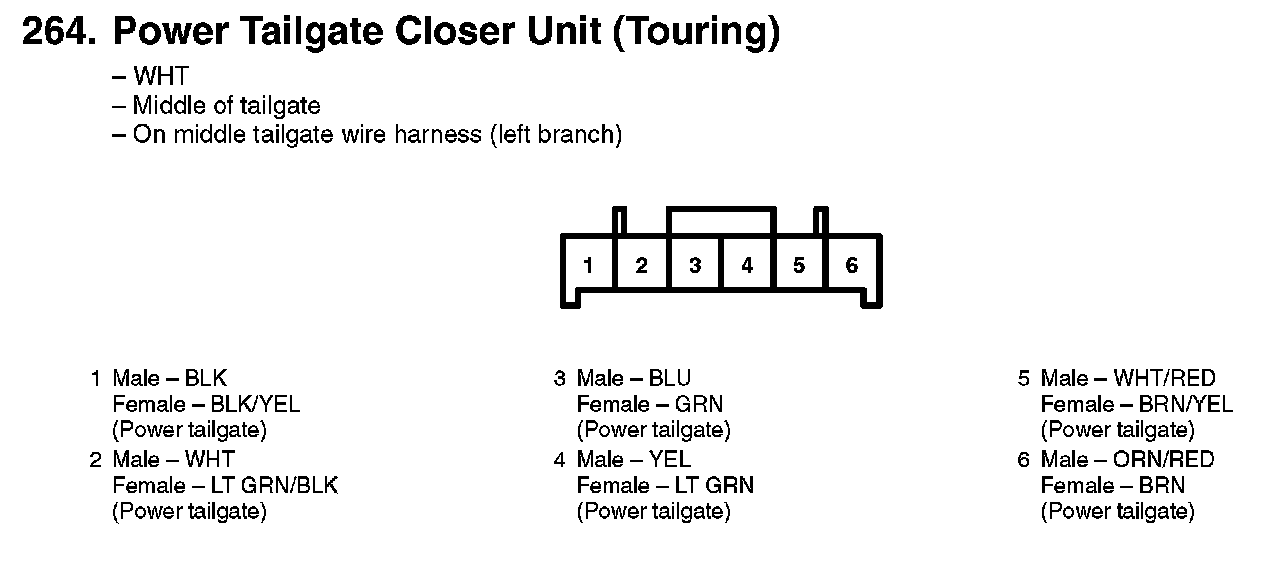

264. Power Tailgate Closer Unit (Touring):

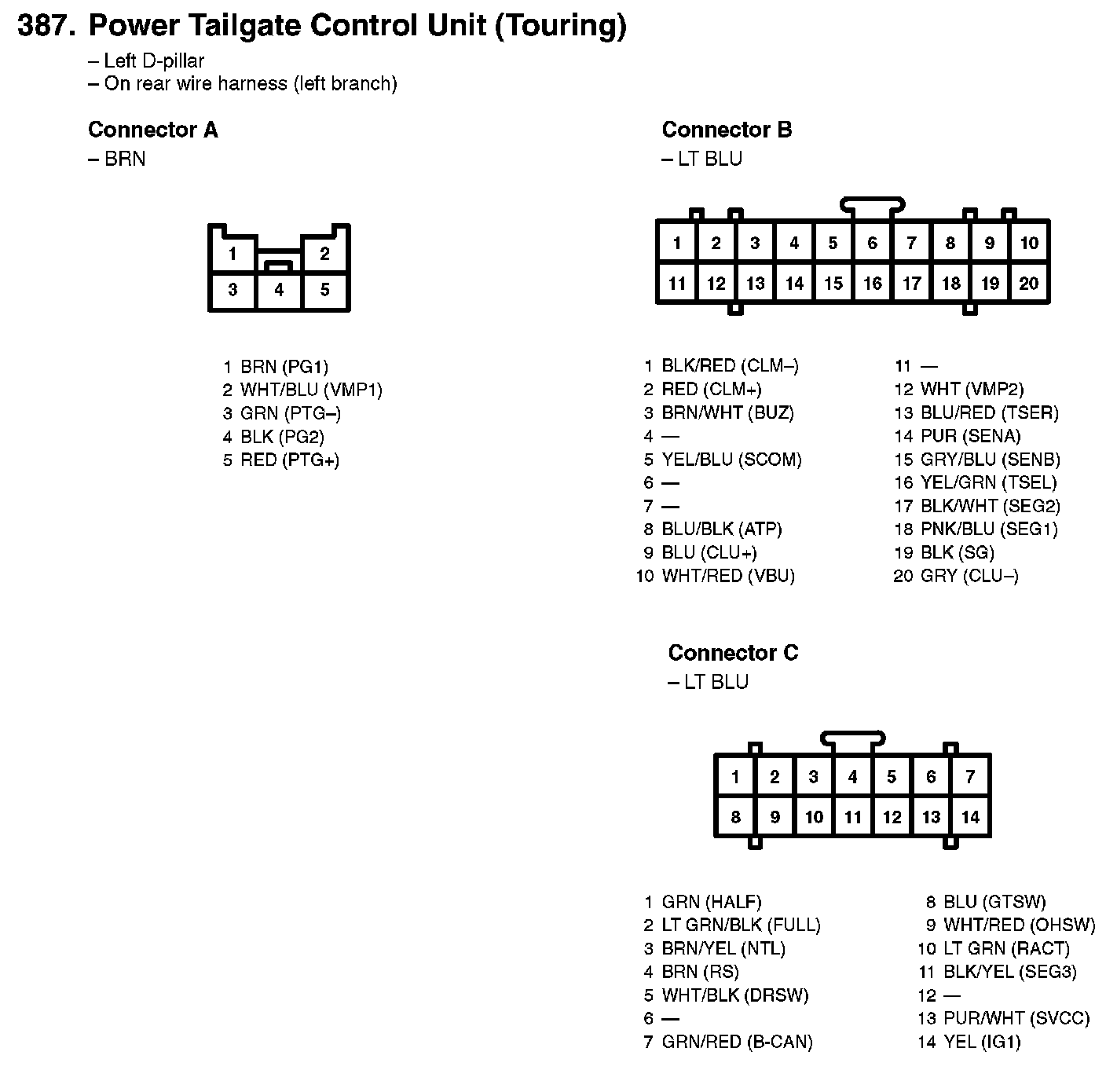

387. Power Tailgate Control Unit (Touring):

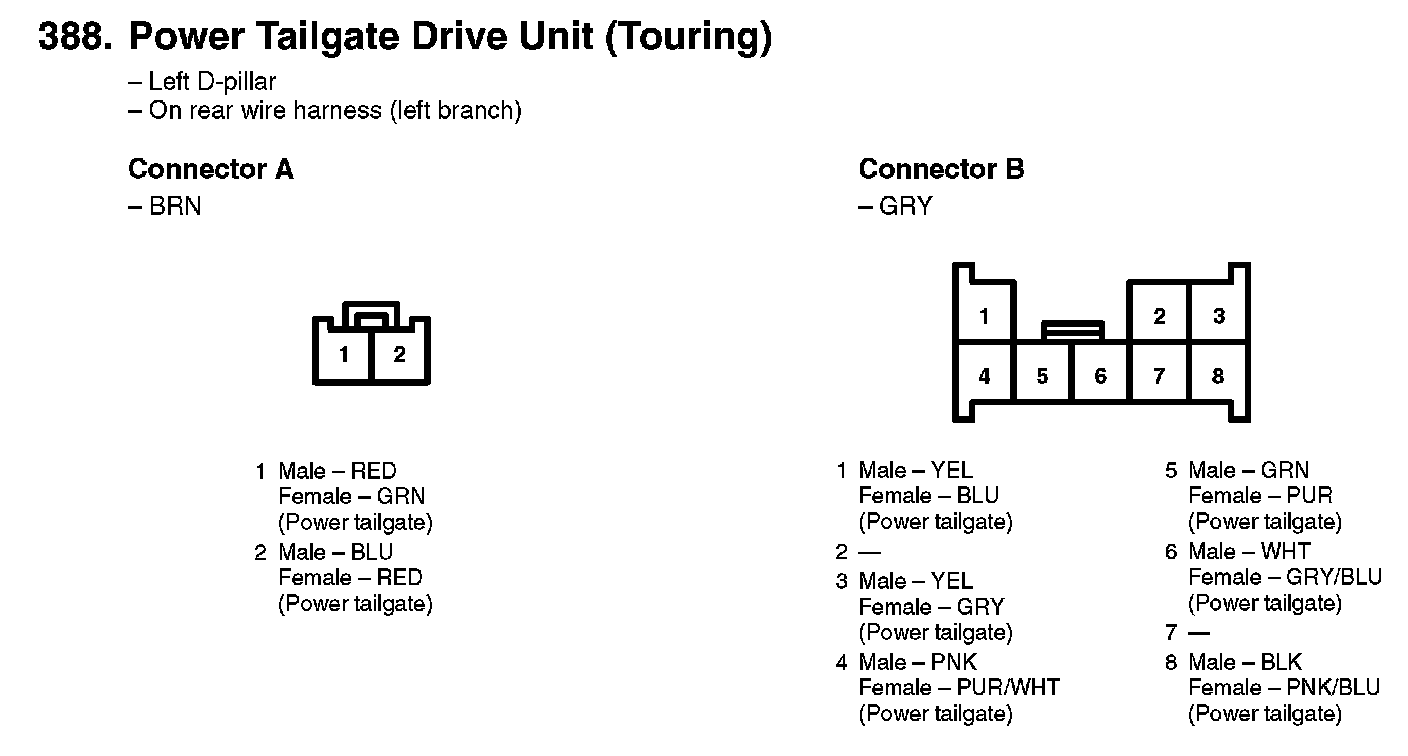

388. Power Tailgate Drive Unit (Touring):
