lemon-mirror
:
Home
>>
Honda
>>
2007
>>
Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
Navigation Module
Navigation Module

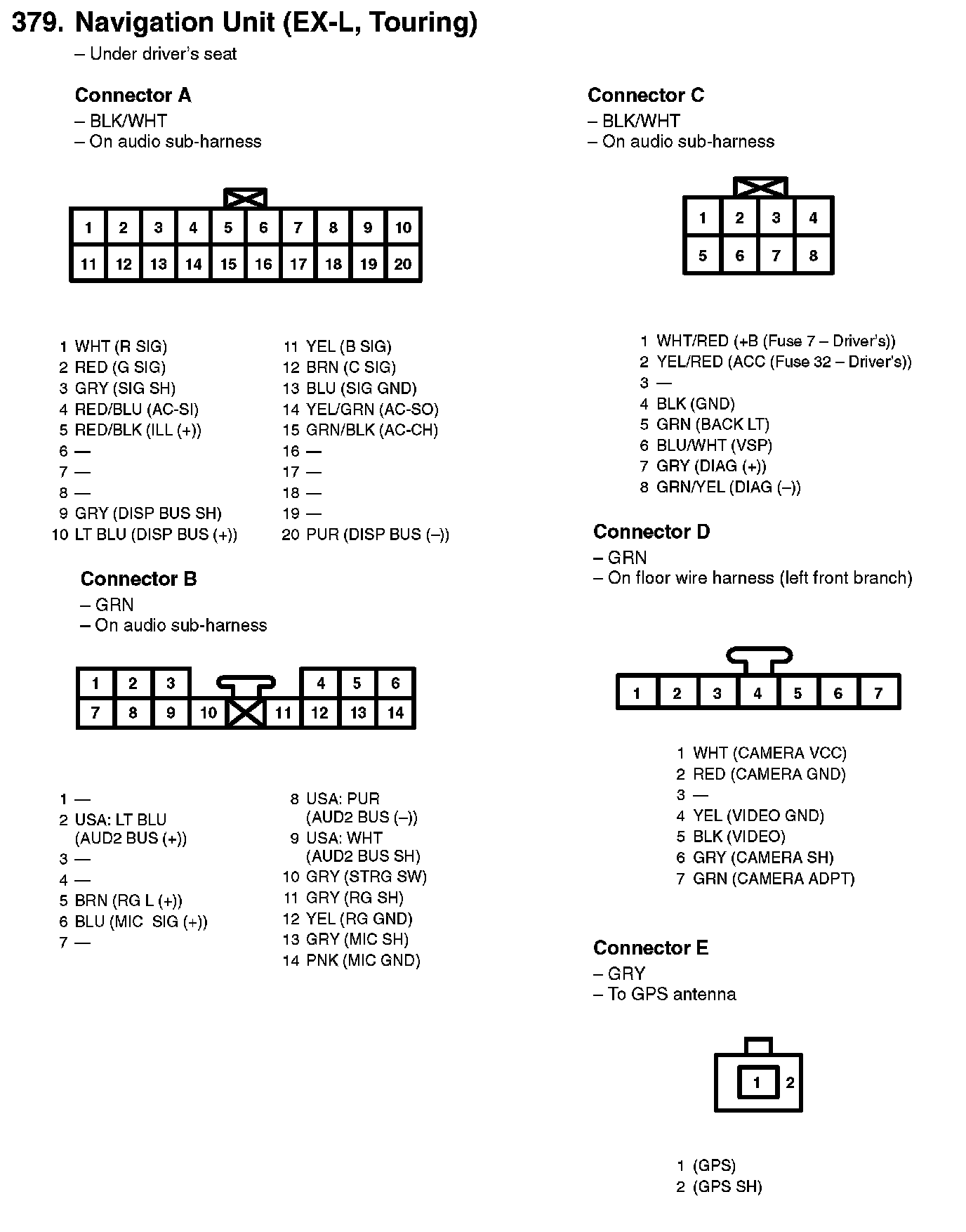

379. Navigation Unit (EX-L, Touring):
