Home >> Honda >> 2007 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Entertainment System Control Panel

Entertainment System Control Panel

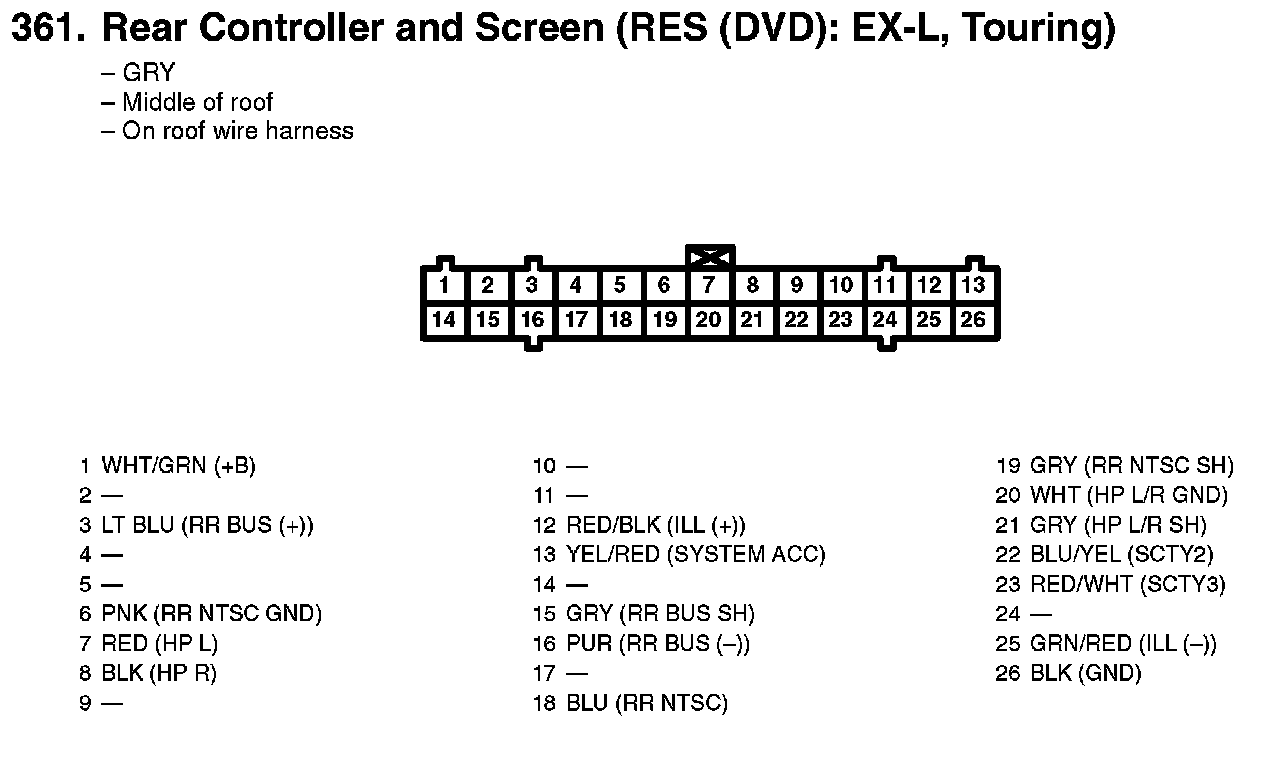

361. Rear Controller And Screen (RES (DVD): EX-L, Touring):
