Collision Avoidance Module
Collision Avoidance Module

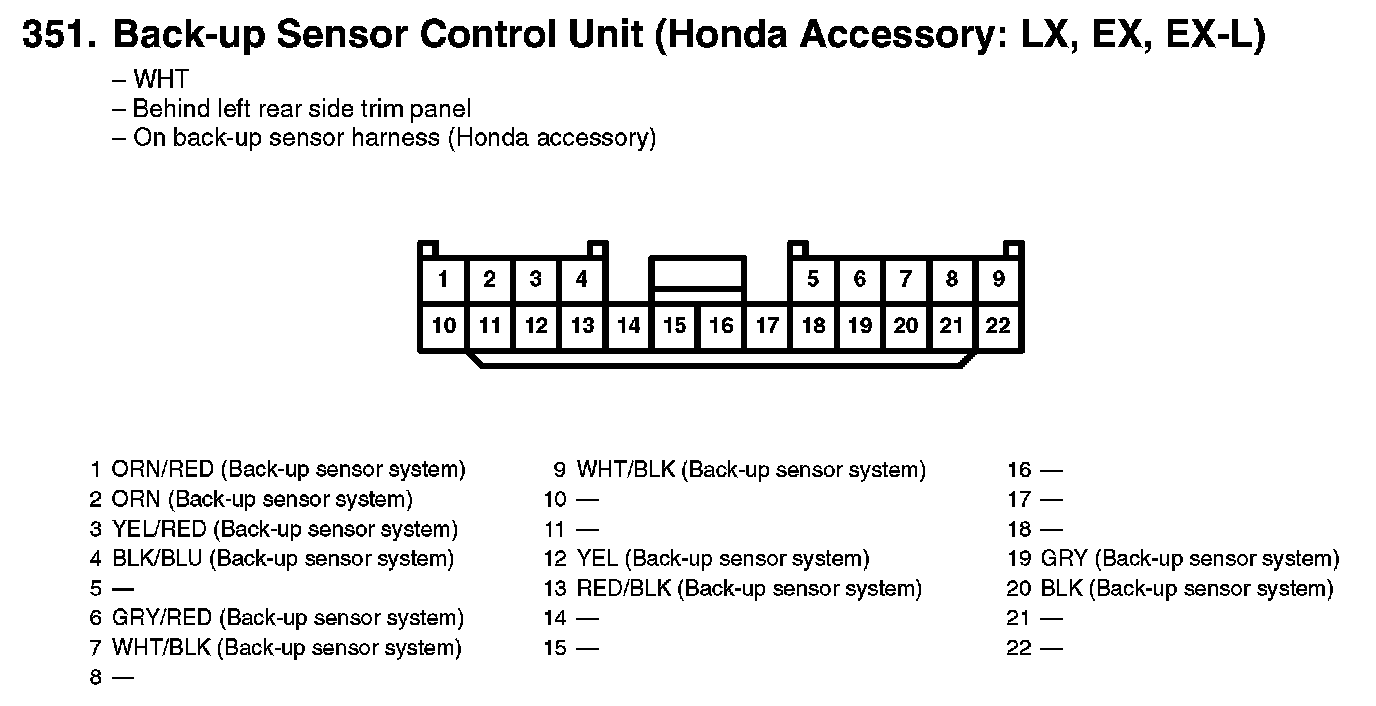

351. Back-up Sensor Control Unit (Honda Accessory: LX, EX, EX-L):

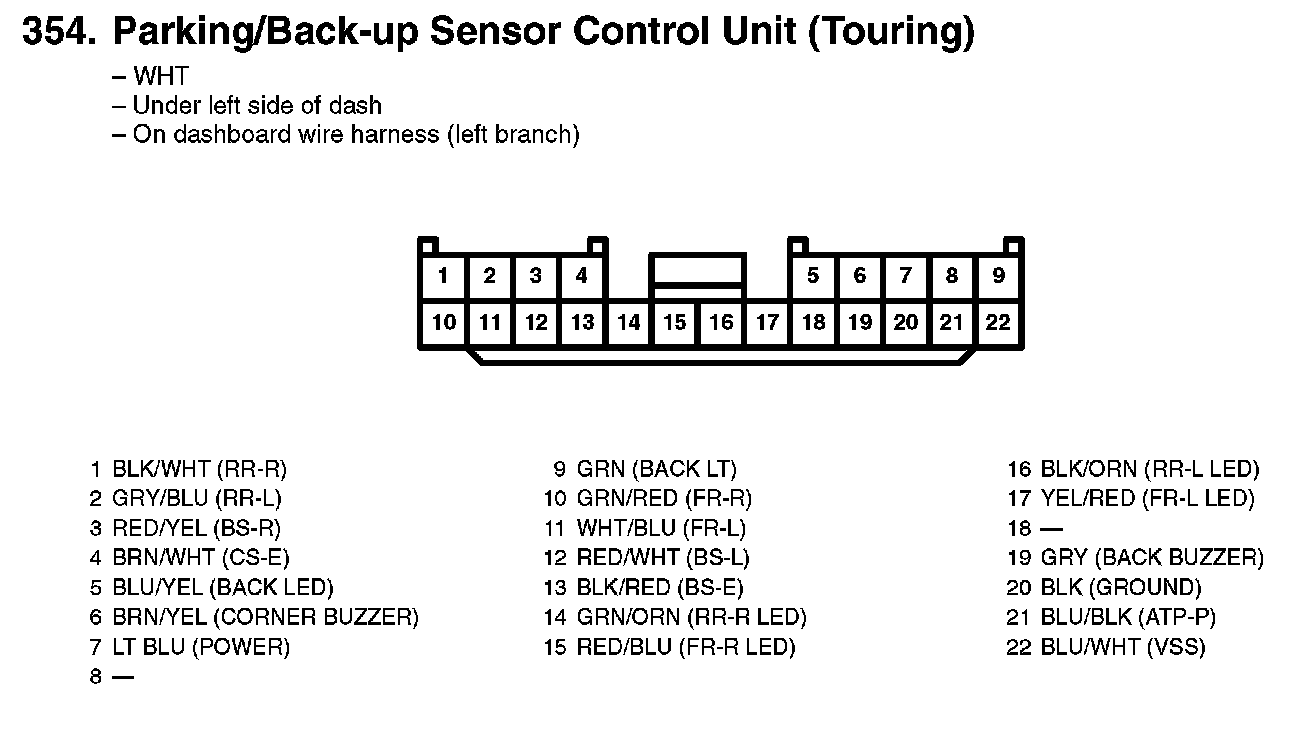

354. Parking/Back-up Sensor Control Unit (Touring):
