Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

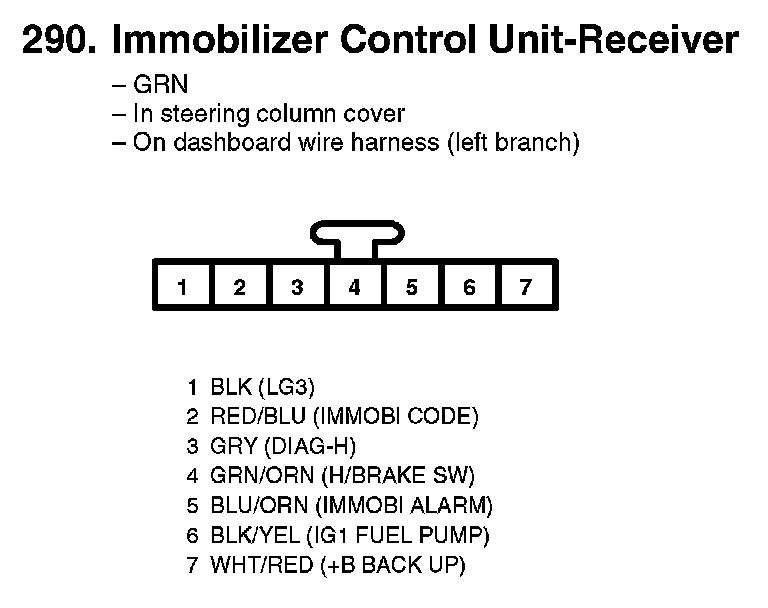

290. Immobilizer Control Unit-Receiver:

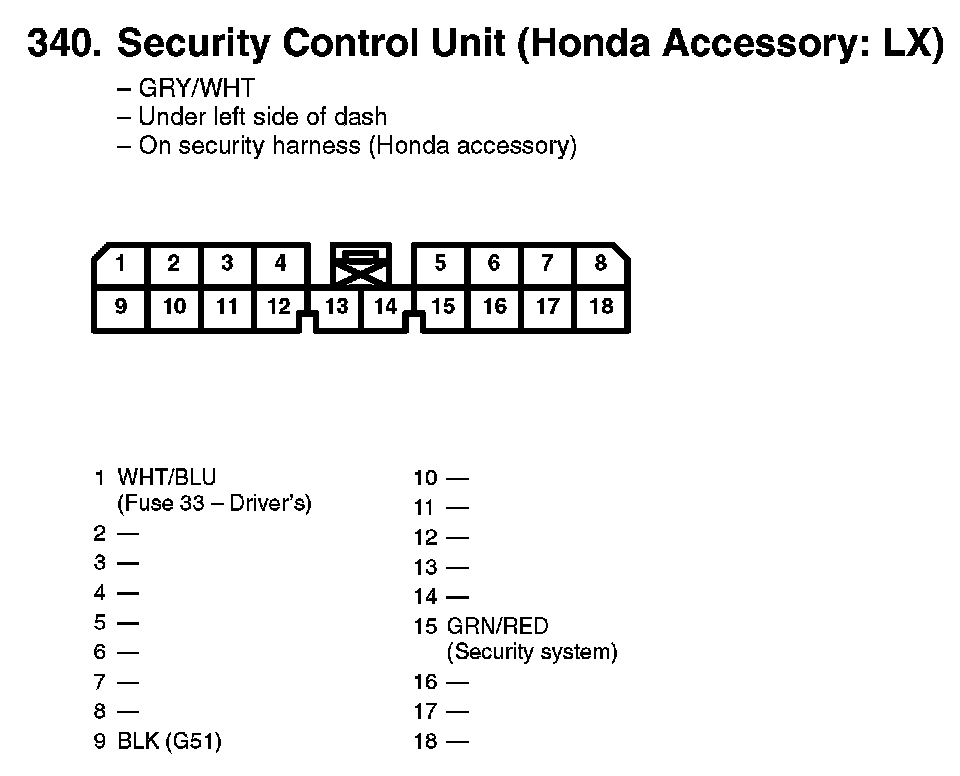

340. Security Control Unit (Honda Accessory: LX):
