Home >> Honda >> 2007 >> Fit L4-1.5L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Instrument Panel Control Module >> Locations

Instrument Panel Control Module: Locations

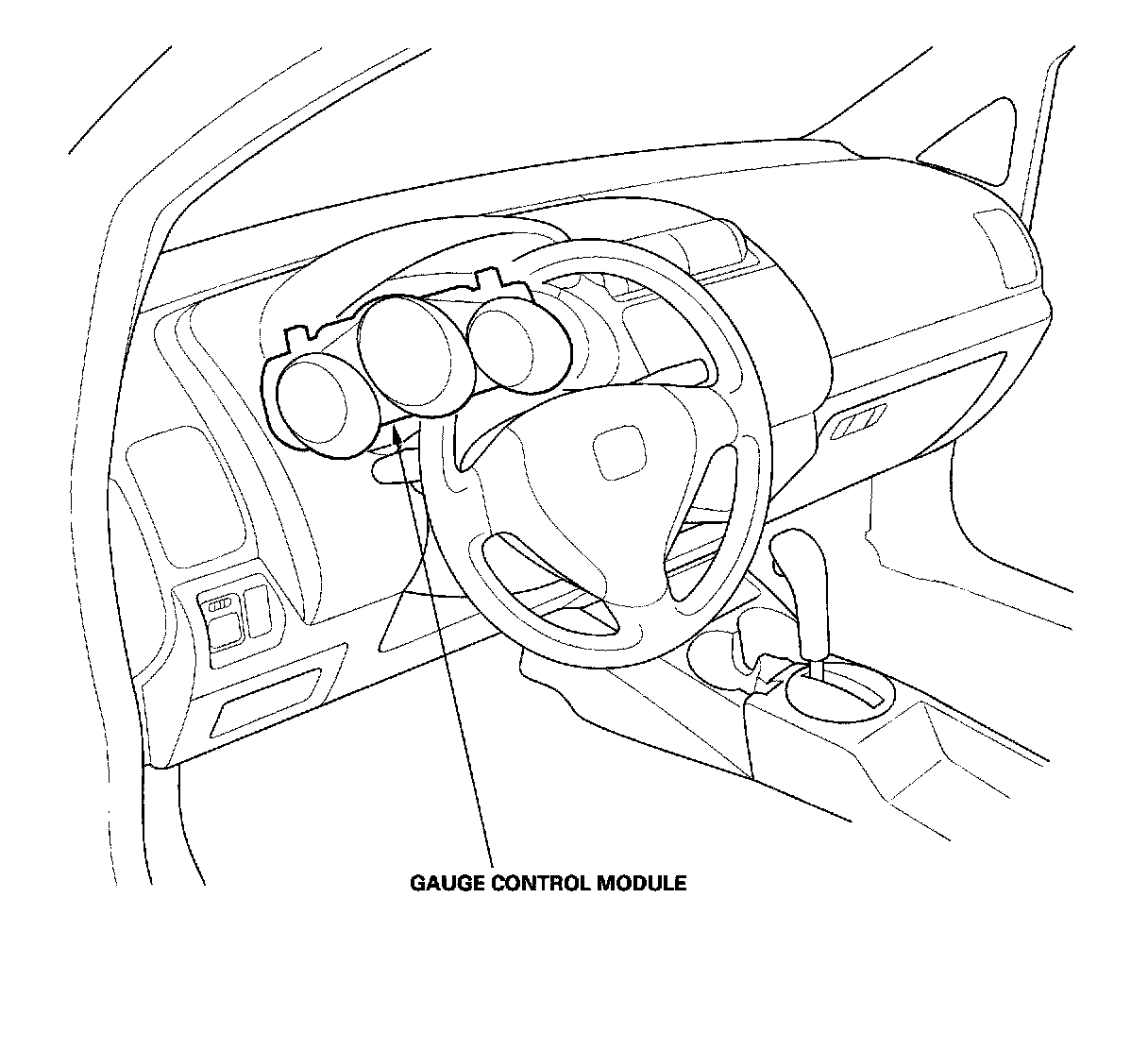

Gauges Component Location Index:

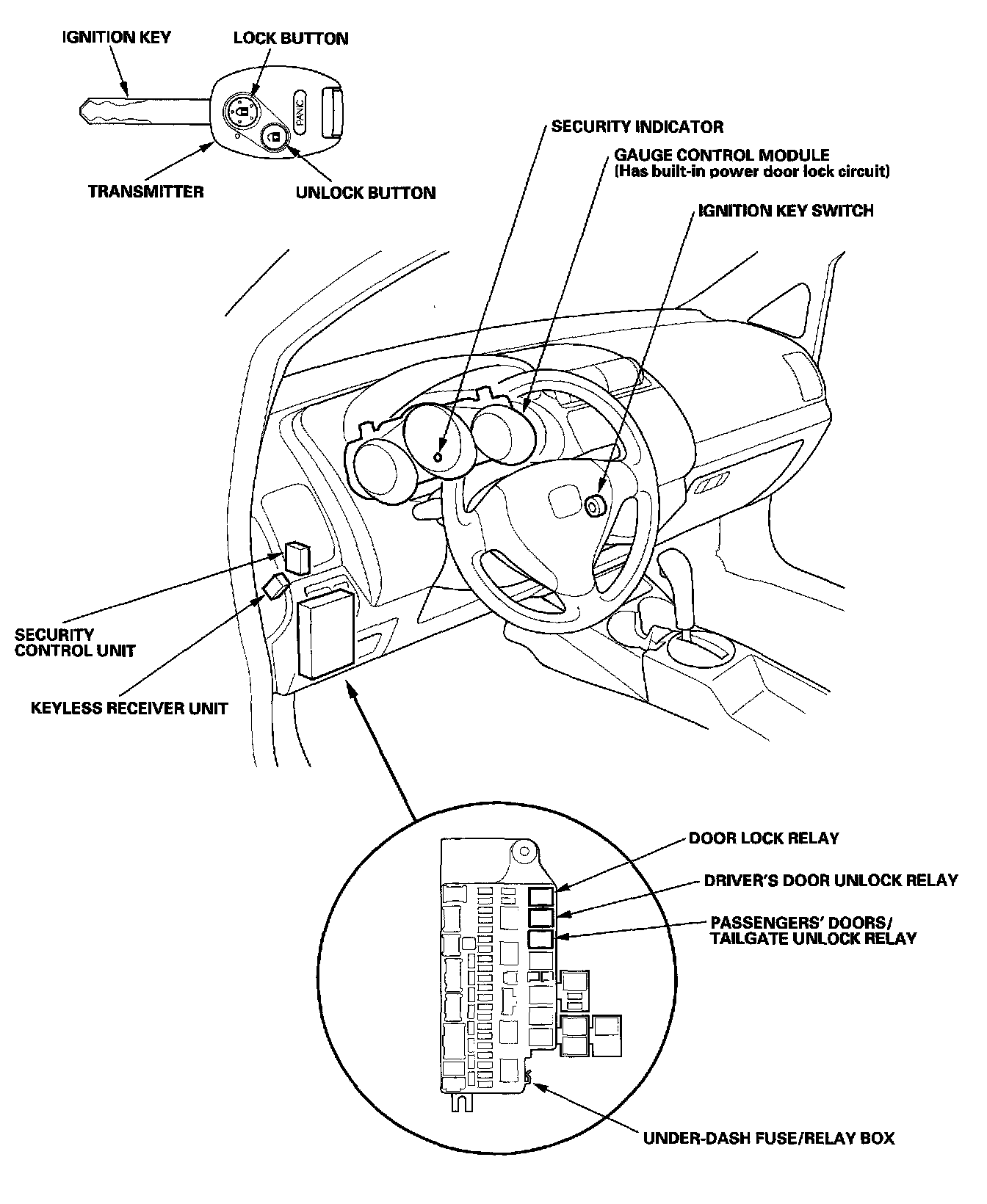

Keyless/power Door Locks/security System Component Location Index:



Entry Lights Control System Component Location Index:

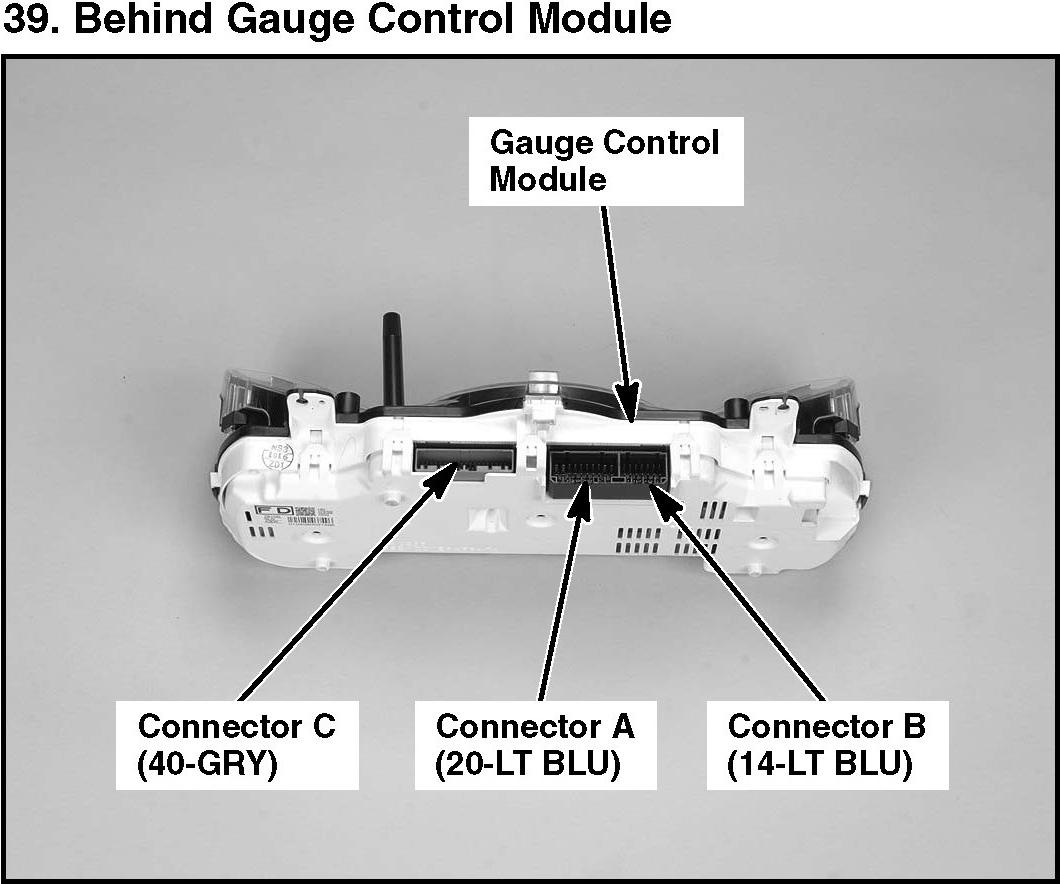

39. Behind Gauge Control Module:
