Home >> Honda >> 2007 >> Fit L4-1.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Relay Box

Relay Box

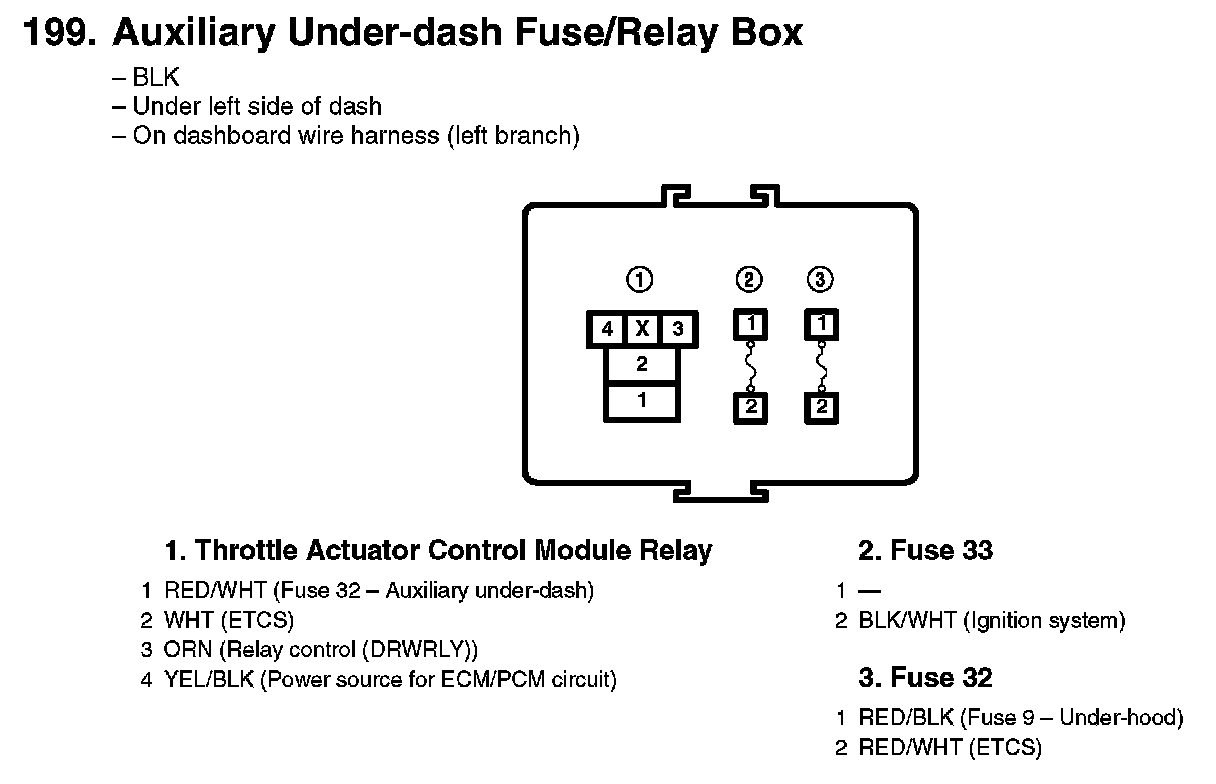

199. Auxiliary Under-dash Fuse/Relay Box:

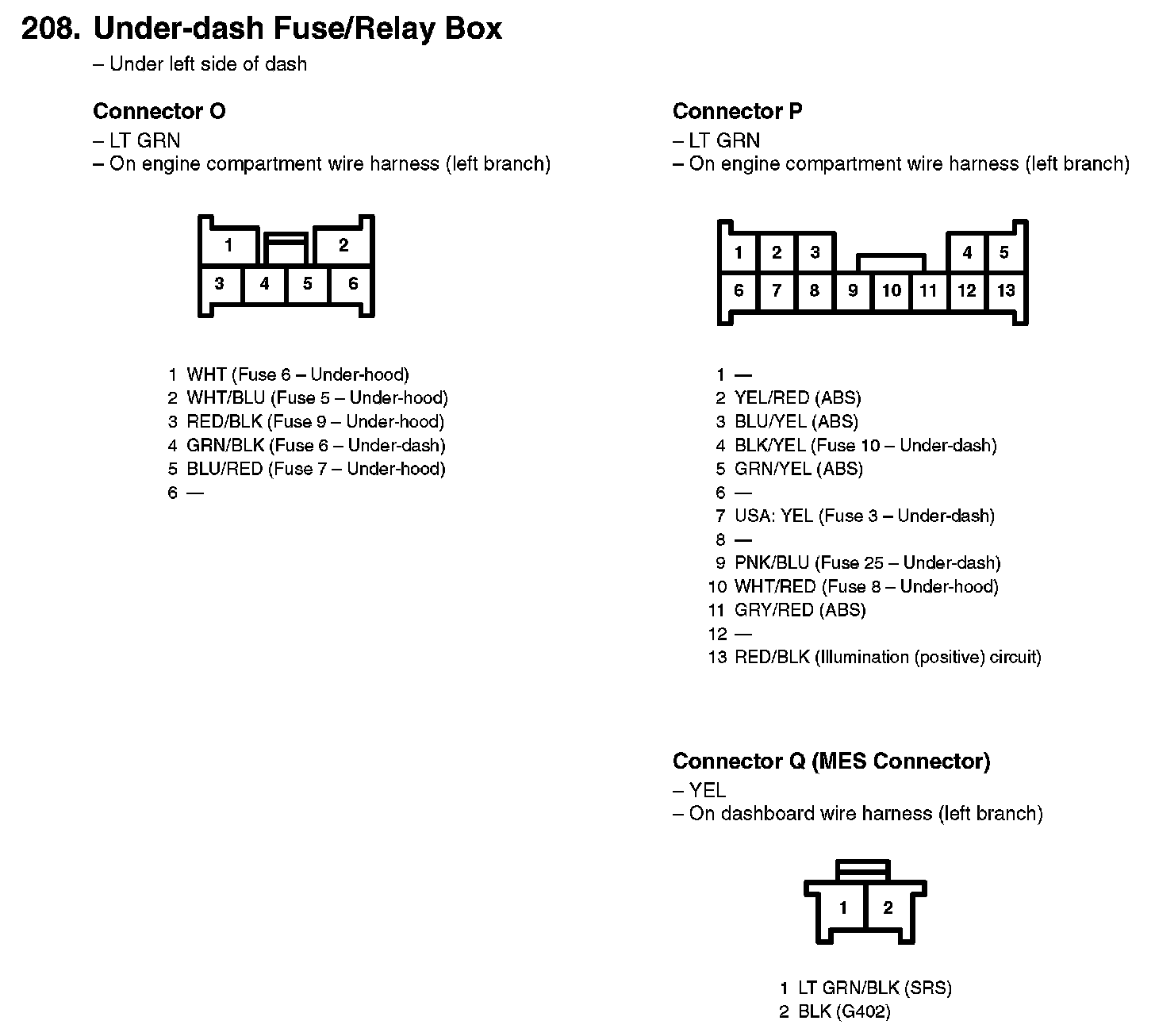

208. Under-dash Fuse/Relay Box:

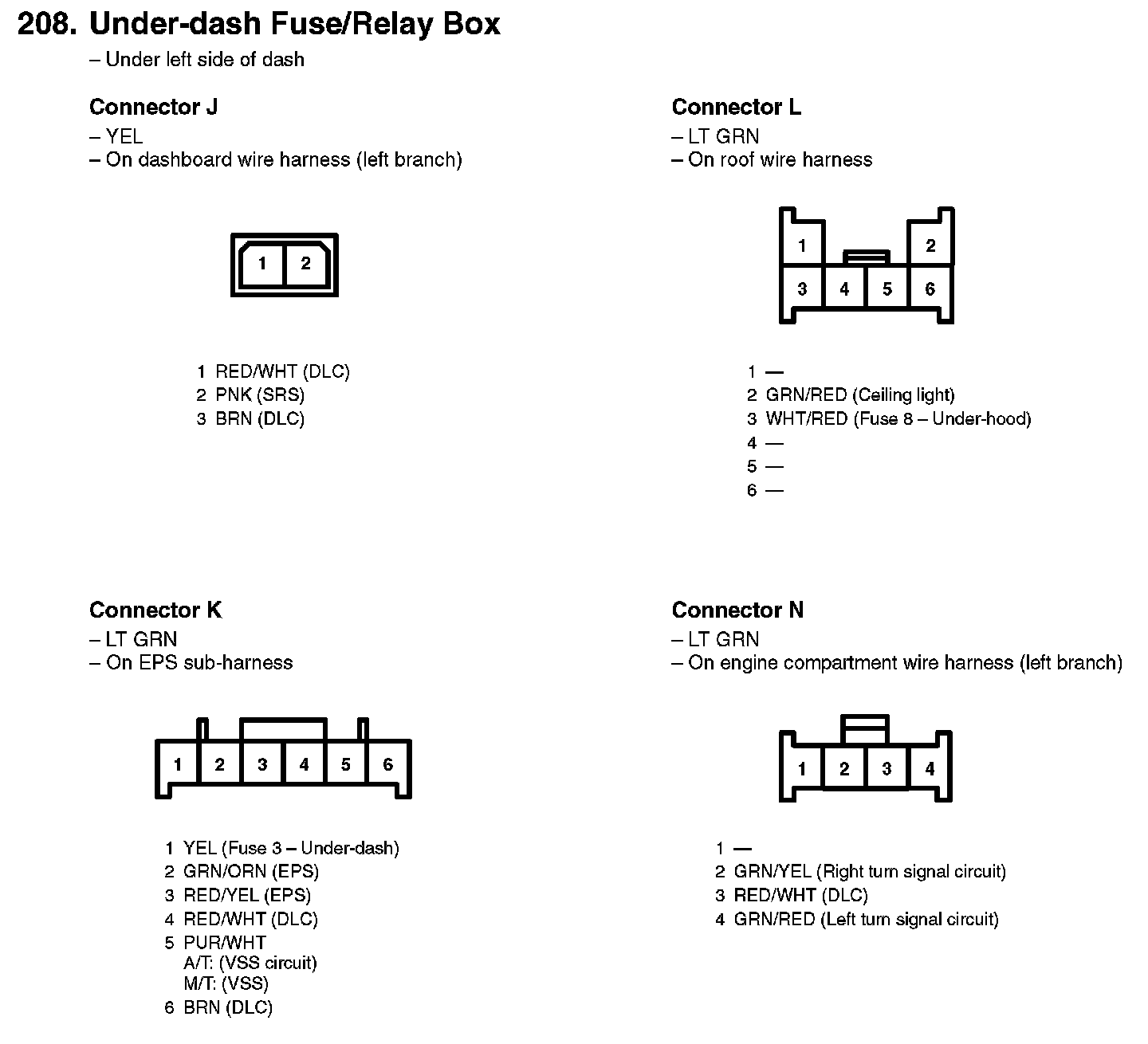

208. Under-dash Fuse/Relay Box:

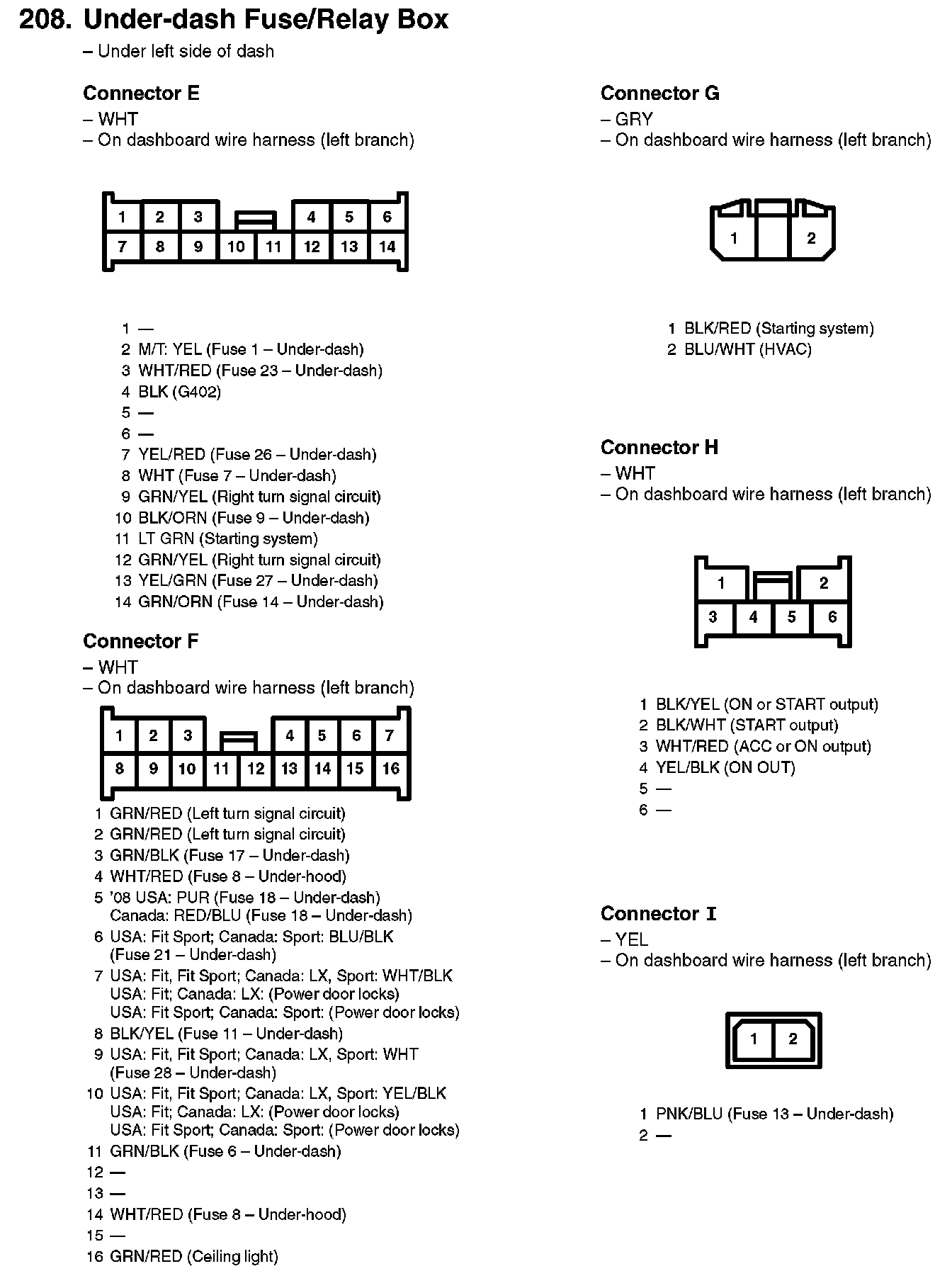

208. Under-dash Fuse/Relay Box:

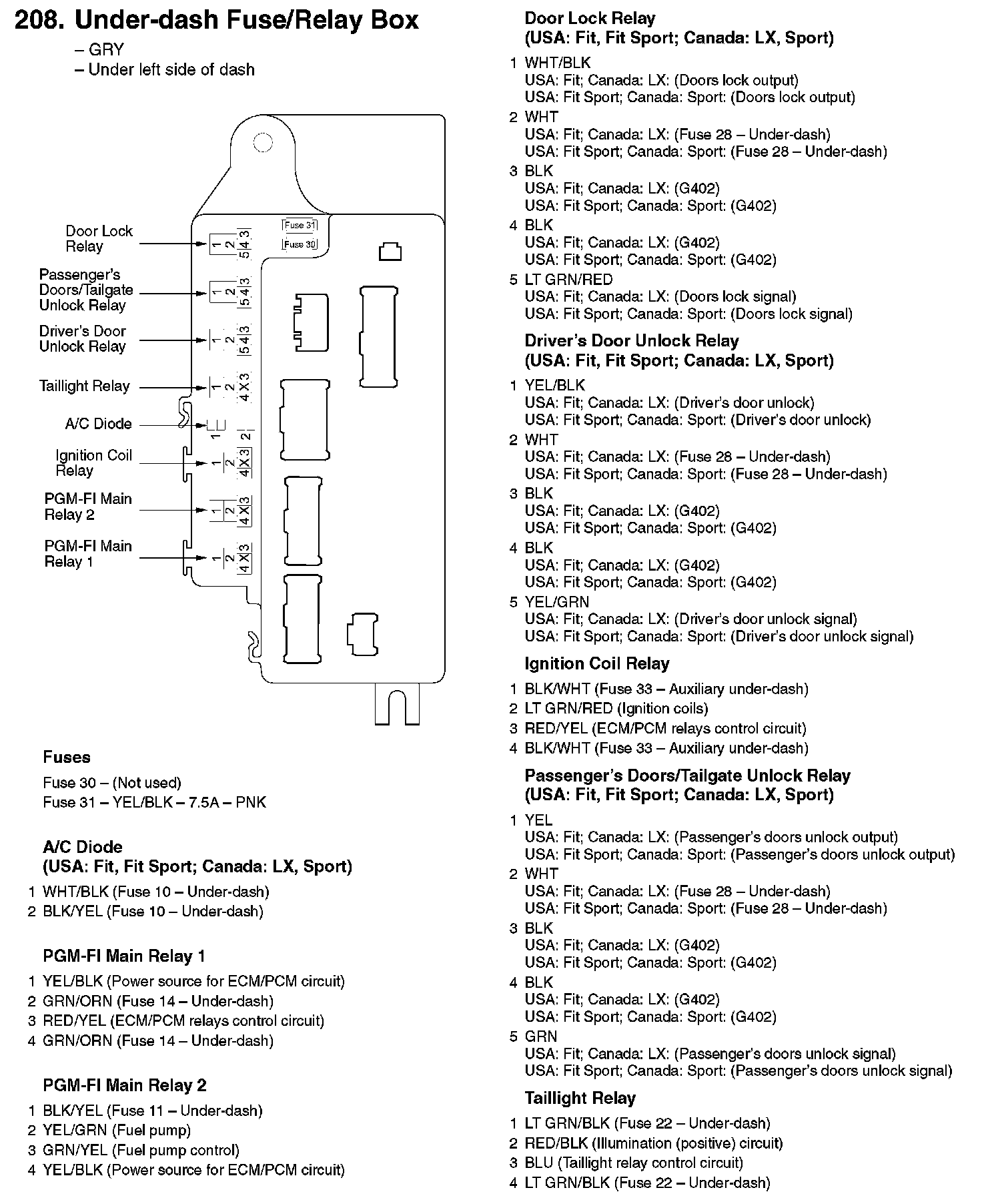

208. Under-dash Fuse/Relay Box:

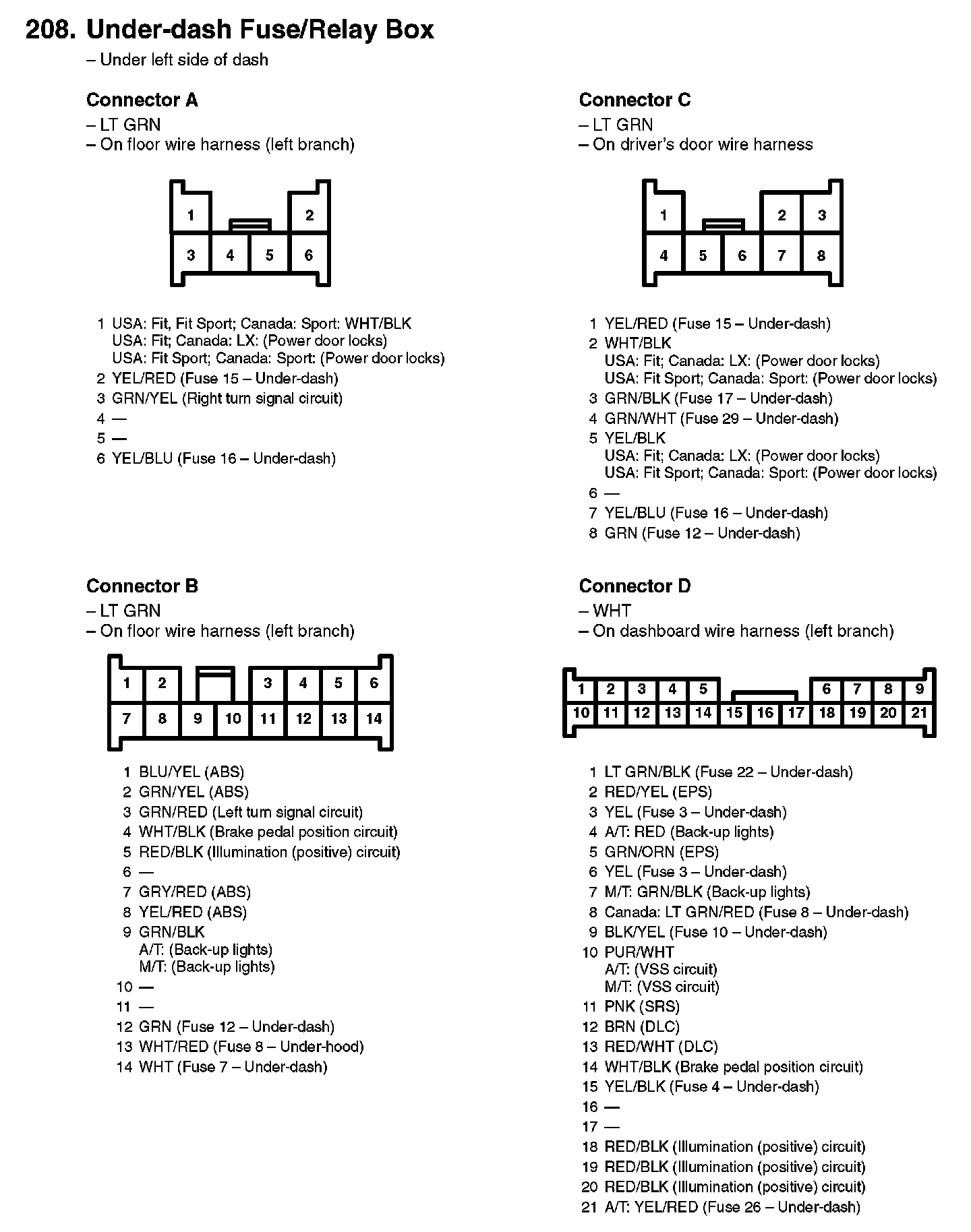

208. Under-dash Fuse/Relay Box:

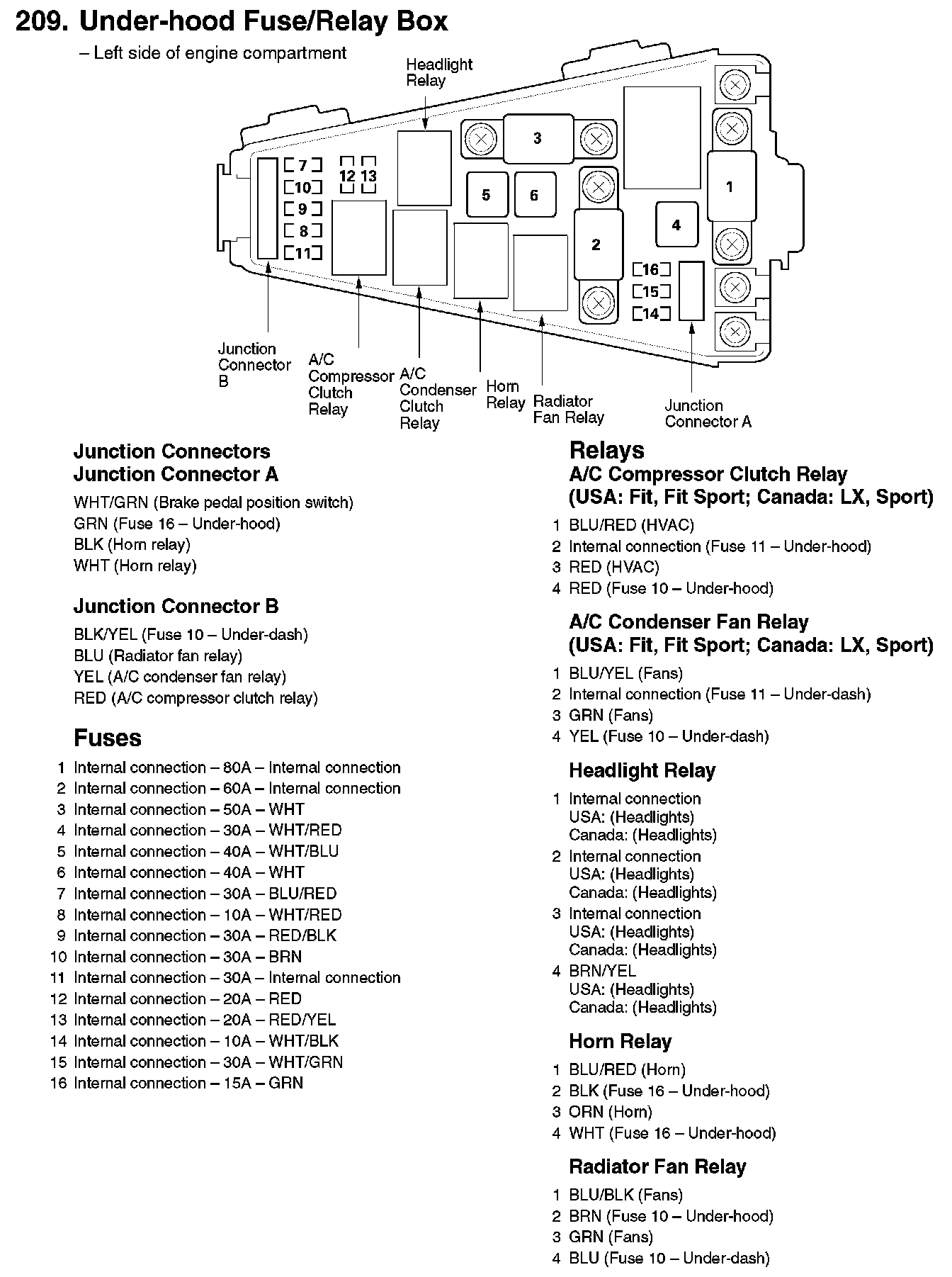

209. Under-hood Fuse/Relay Box:
