Home >> Honda >> 2007 >> Fit L4-1.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Throttle Control Module

Electronic Throttle Control Module

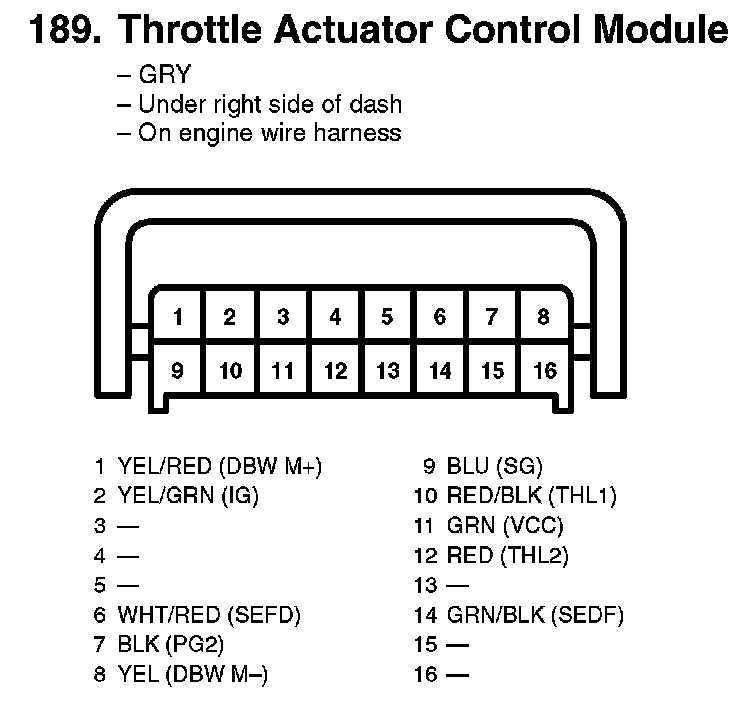

189. Throttle Actuator Control Module:
