Electronic Brake Control Module
Electronic Brake Control Module

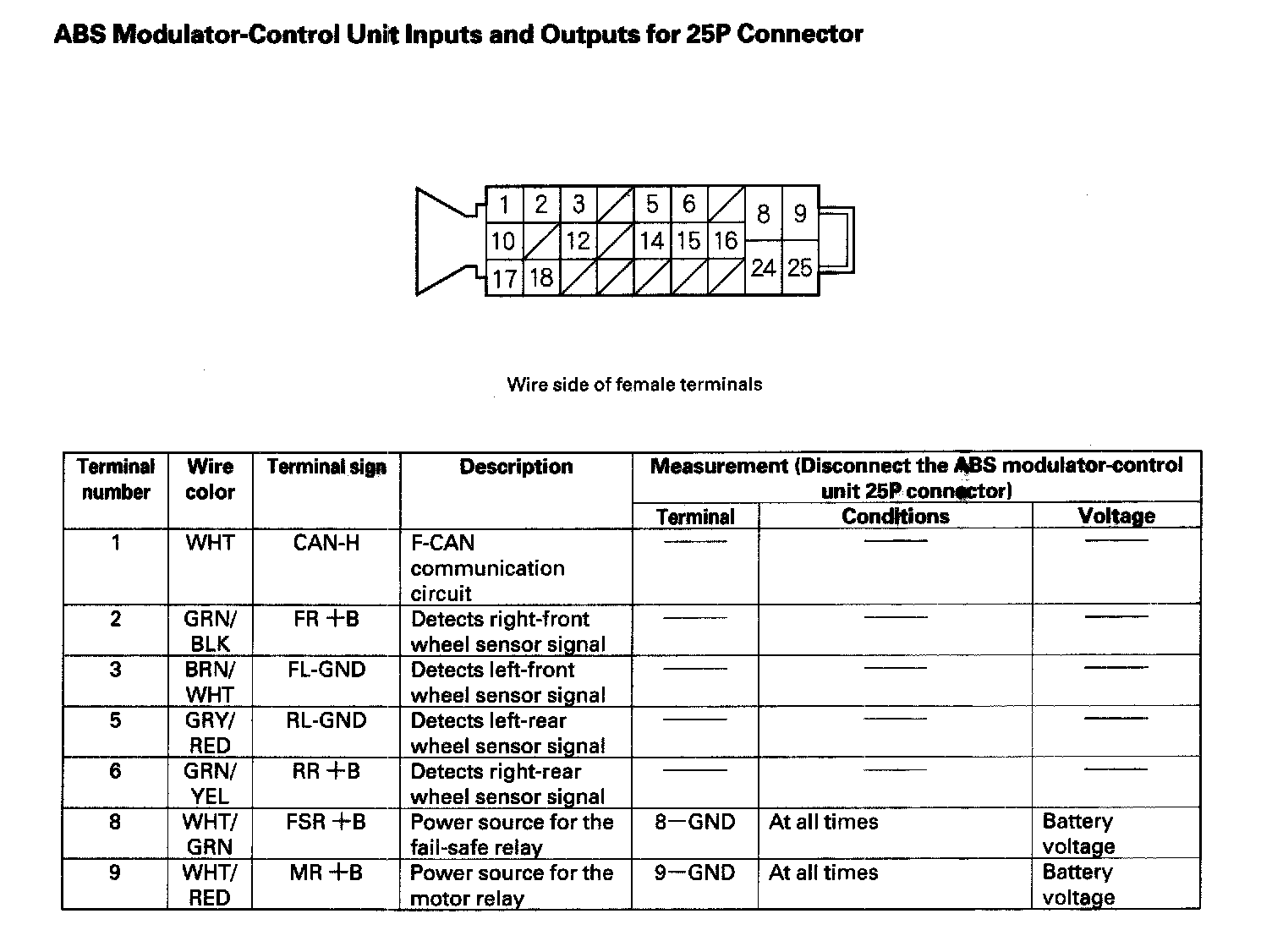

ABS Modulator-Control Unit Inputs and Outputs for 25P Connector (Part 1):

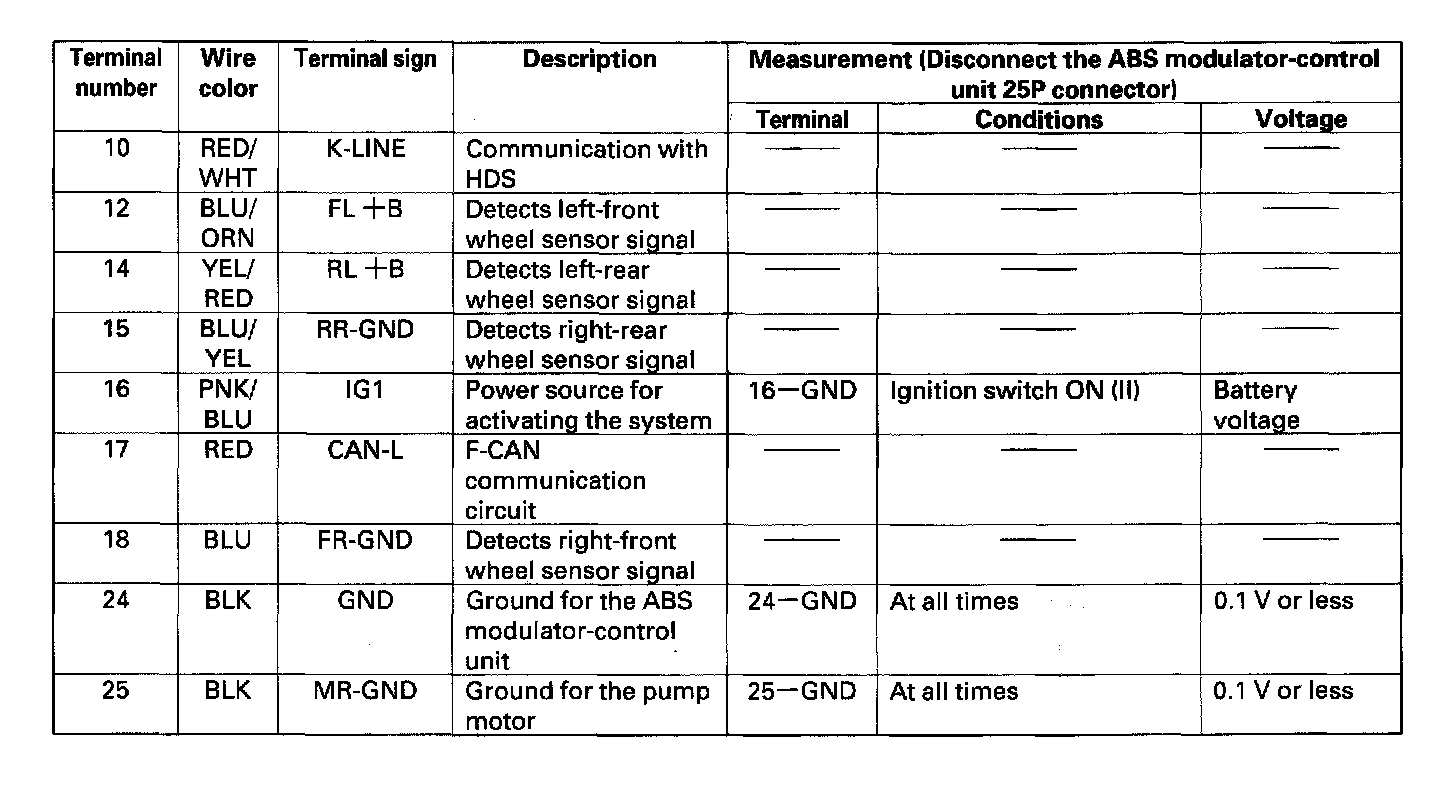

ABS Modulator-Control Unit Inputs and Outputs for 25P Connector (Part 2):
