Home >> Honda >> 2007 >> Fit L4-1.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC

Control Assembly, HVAC

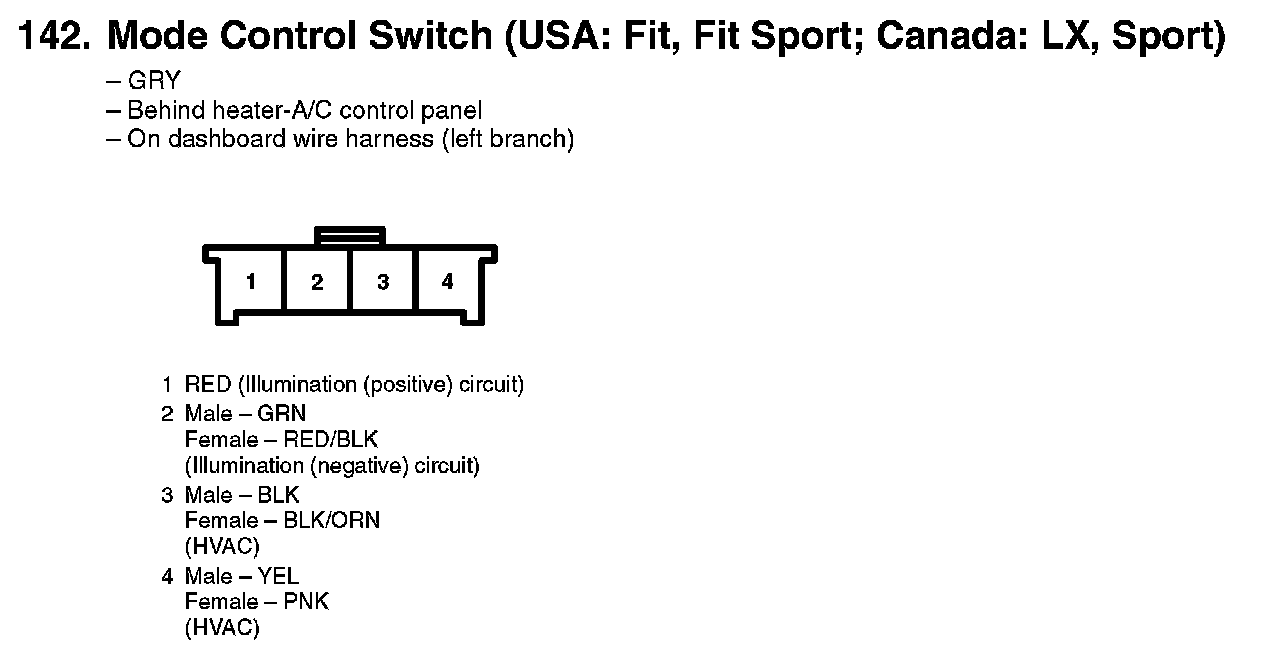

142. Mode Control Switch (USA: Fit, Fit Sport; Canada: LX, Sport):
