Home >> Honda >> 2007 >> Fit L4-1.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Compressor HVAC

Compressor HVAC

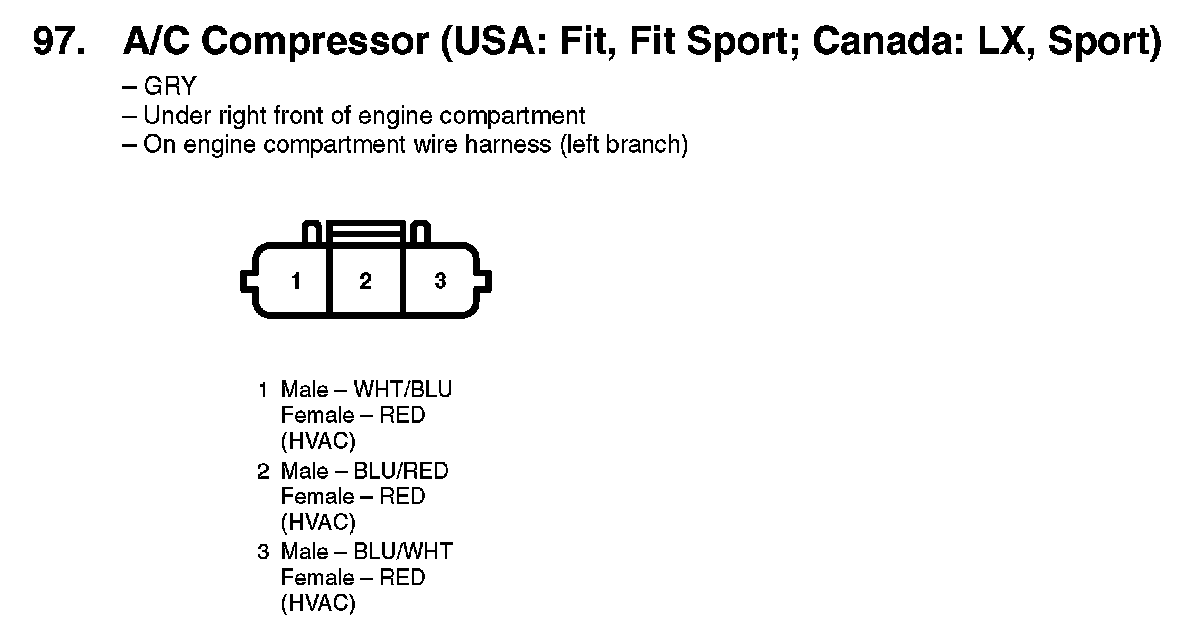

97. A/C Compressor (USA: Fit, Fit Sport; Canada: LX, Sport):
