Home >> Honda >> 2007 >> Fit L4-1.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

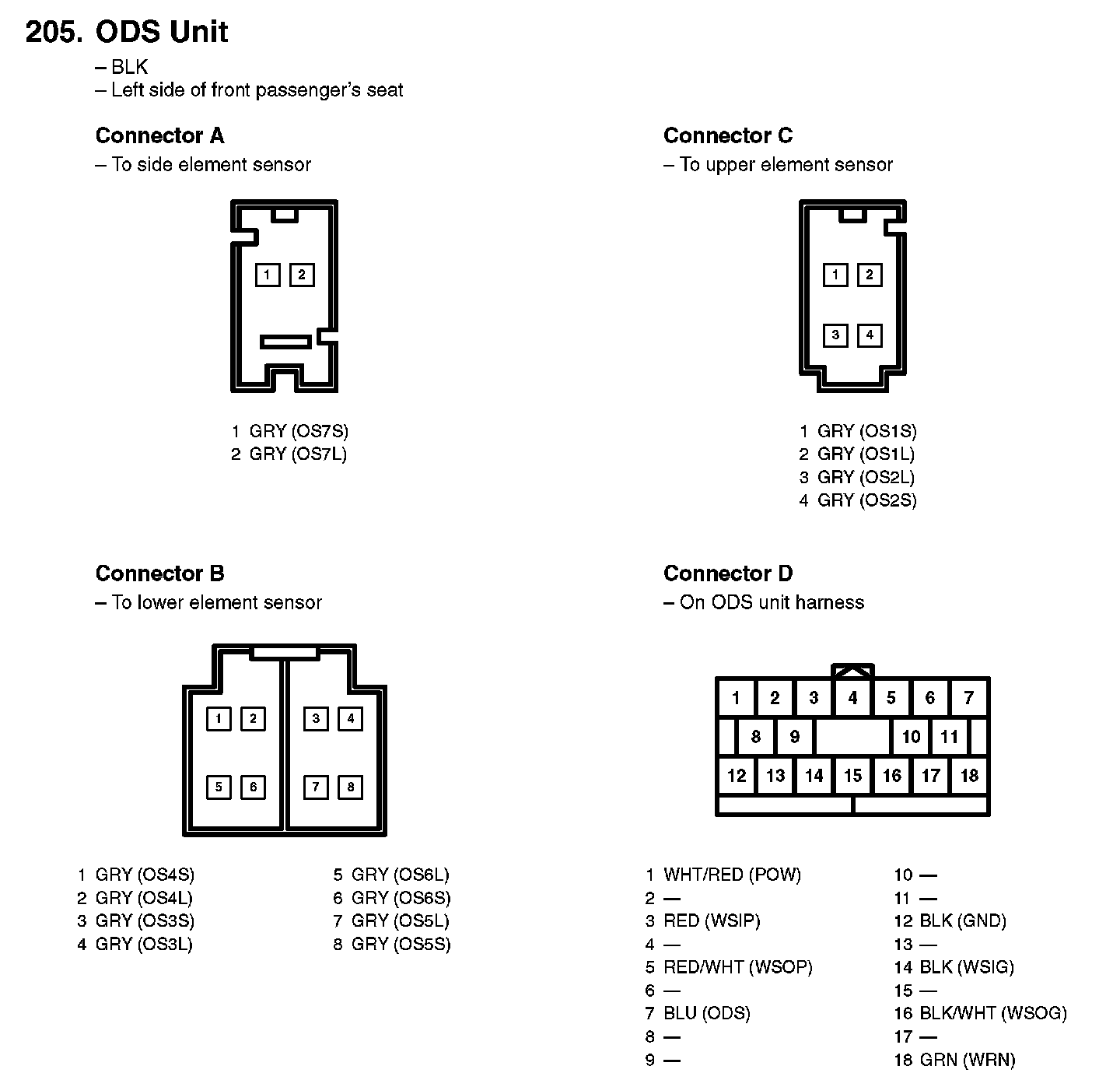

205. ODS Unit:

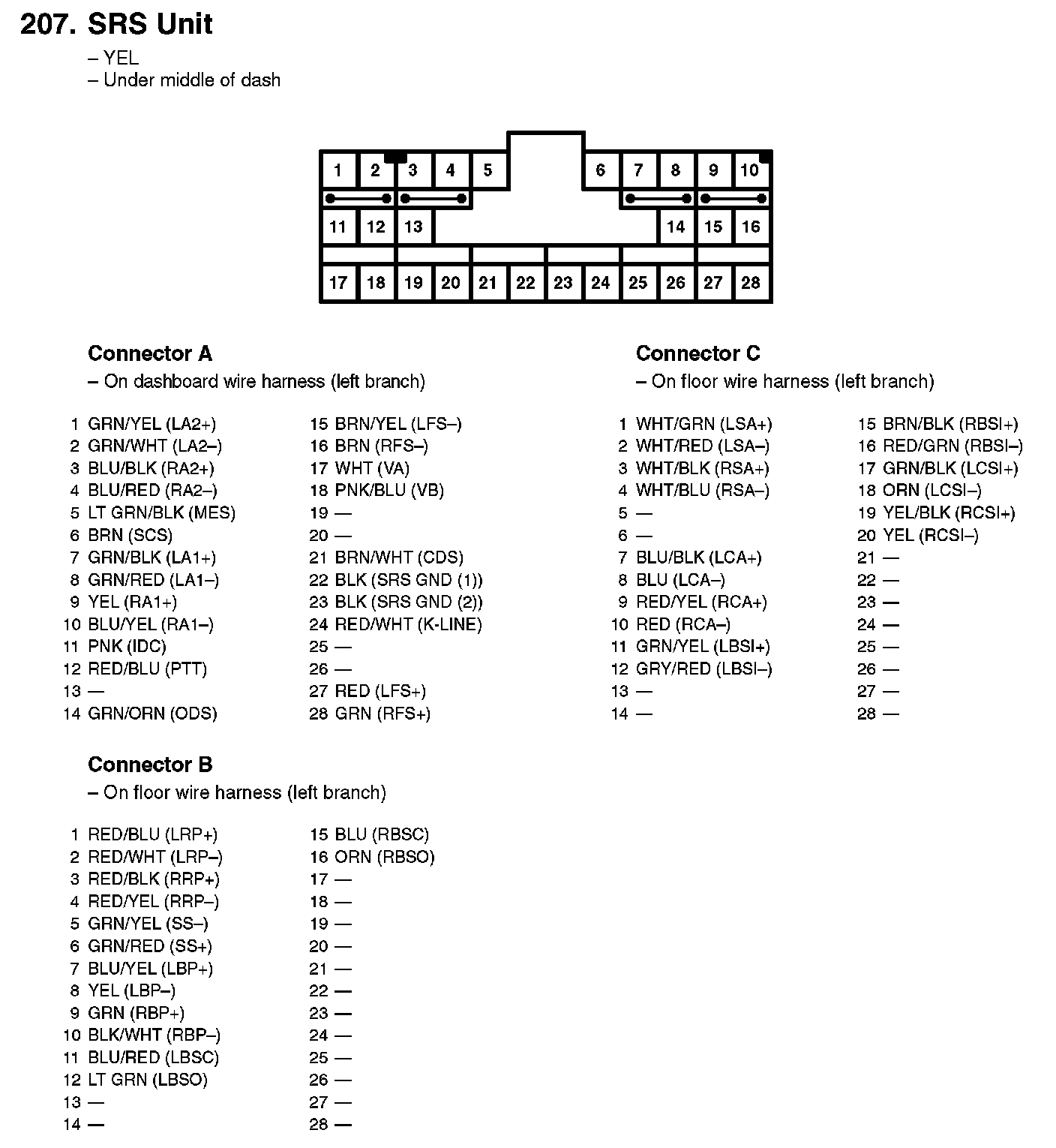

207. SRS Unit:
