Transmission Position Sensor/Switch: Locations

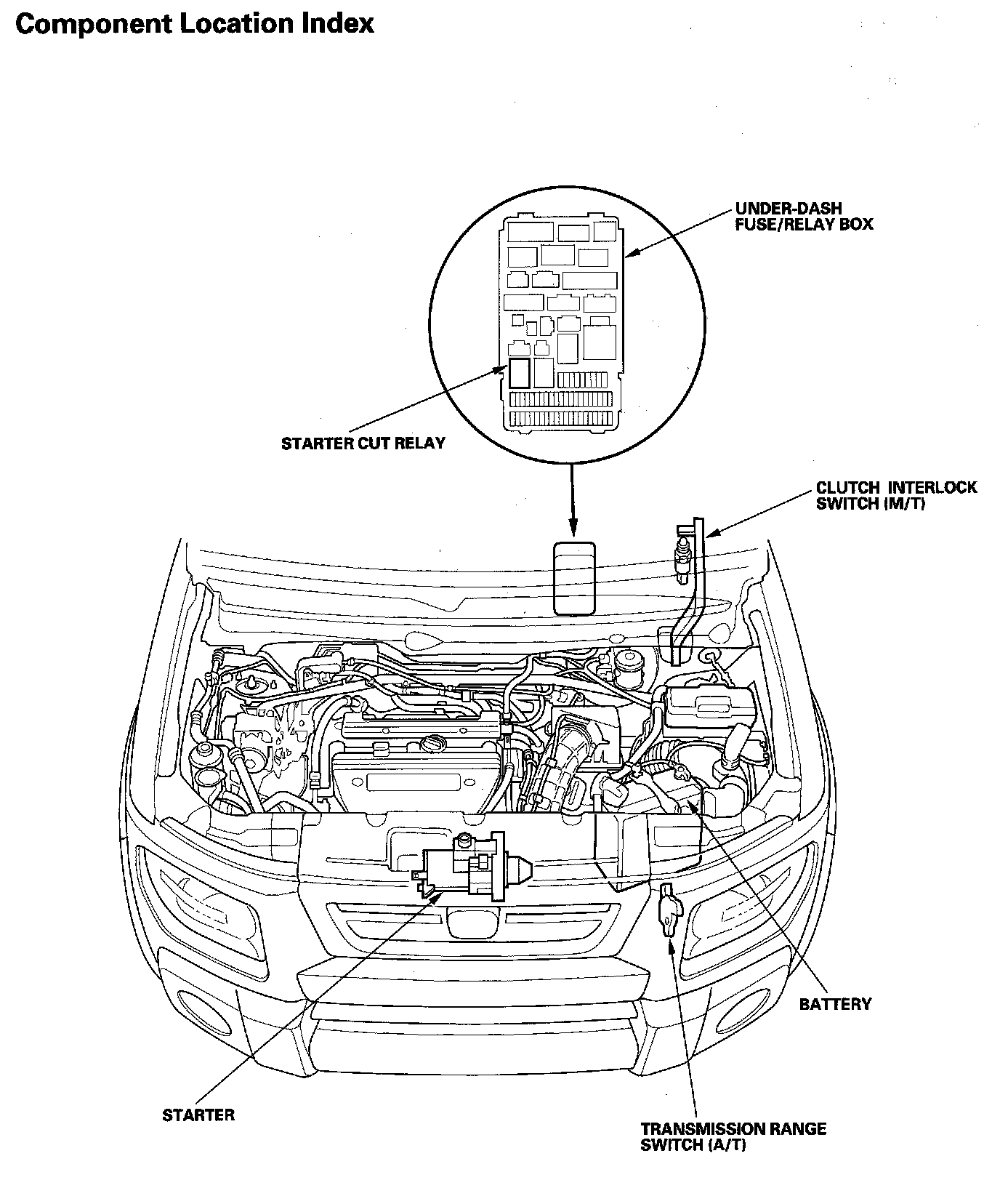

Starting System Component Location Index:

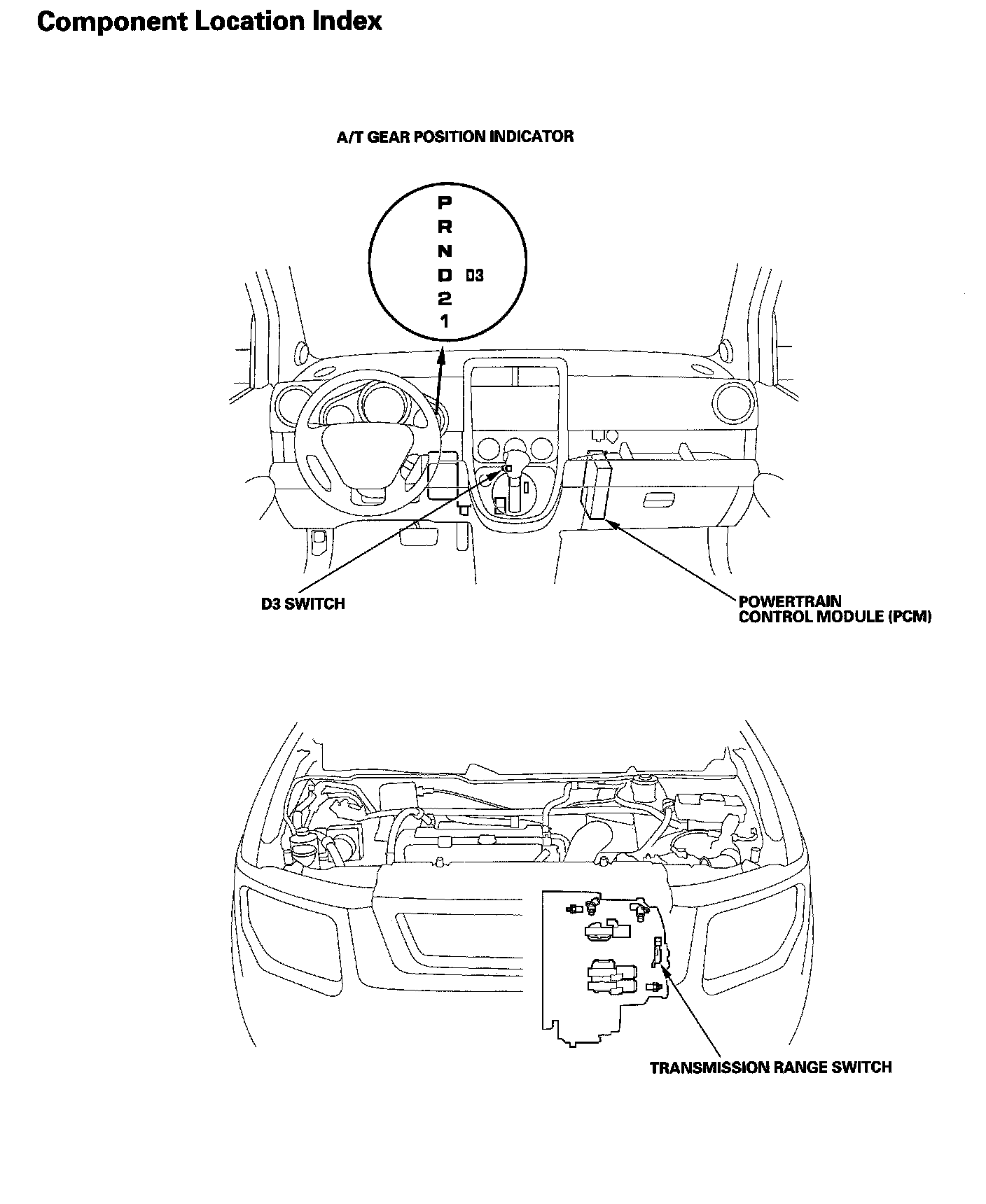

A/T Gear Position Indicator Component Location Index:

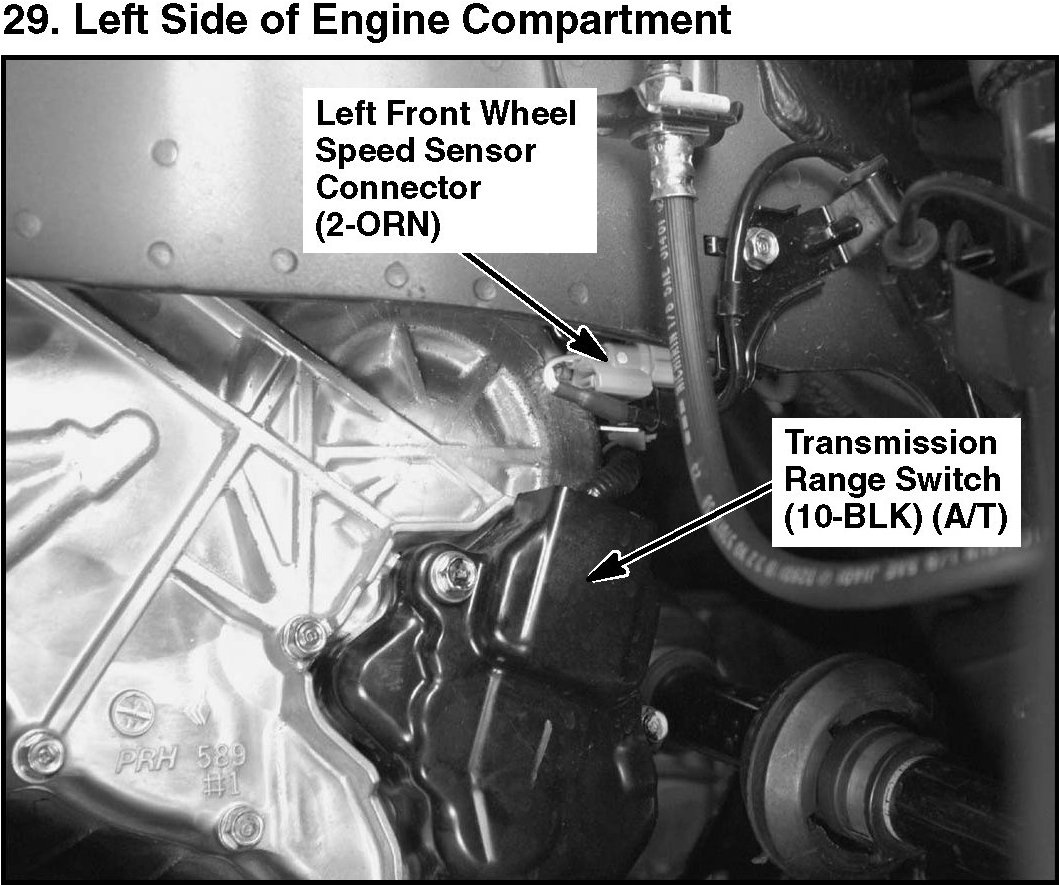

29. Left Side Of Engine Compartment:
