Manifold Pressure/Vacuum Sensor: Service and Repair

MAP Sensor Replacement

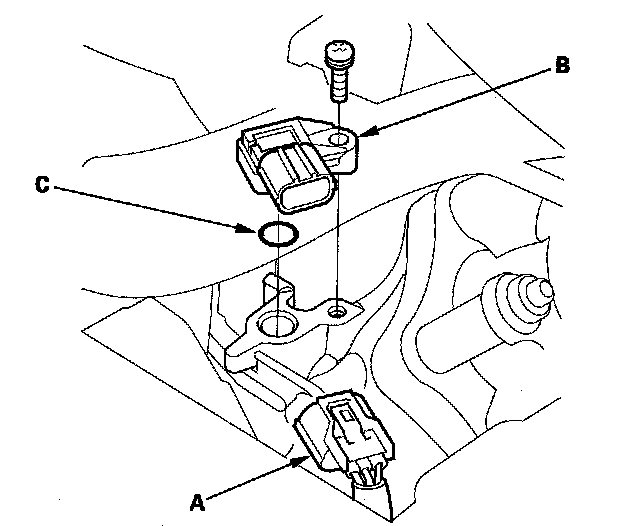

1. Disconnect the MAP sensor connector (A).
2. Remove the MAP sensor (B).
3. Install the parts in the reverse order of removal with a new O-ring (C) coated with clean engine oil.
