Home >> Honda >> 2007 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Diagrams

Air Flow Meter/Sensor: Diagrams

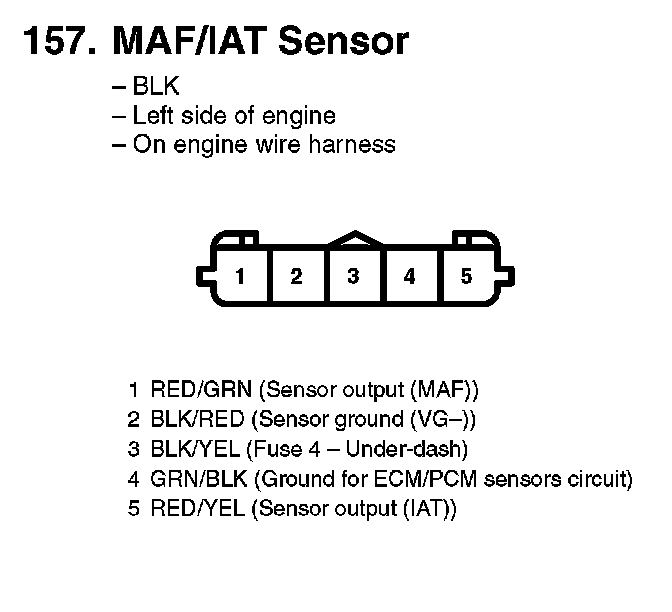

157. MAF/IAT Sensor:
