Home >> Honda >> 2007 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Block Assembly

Cylinder Block Assembly

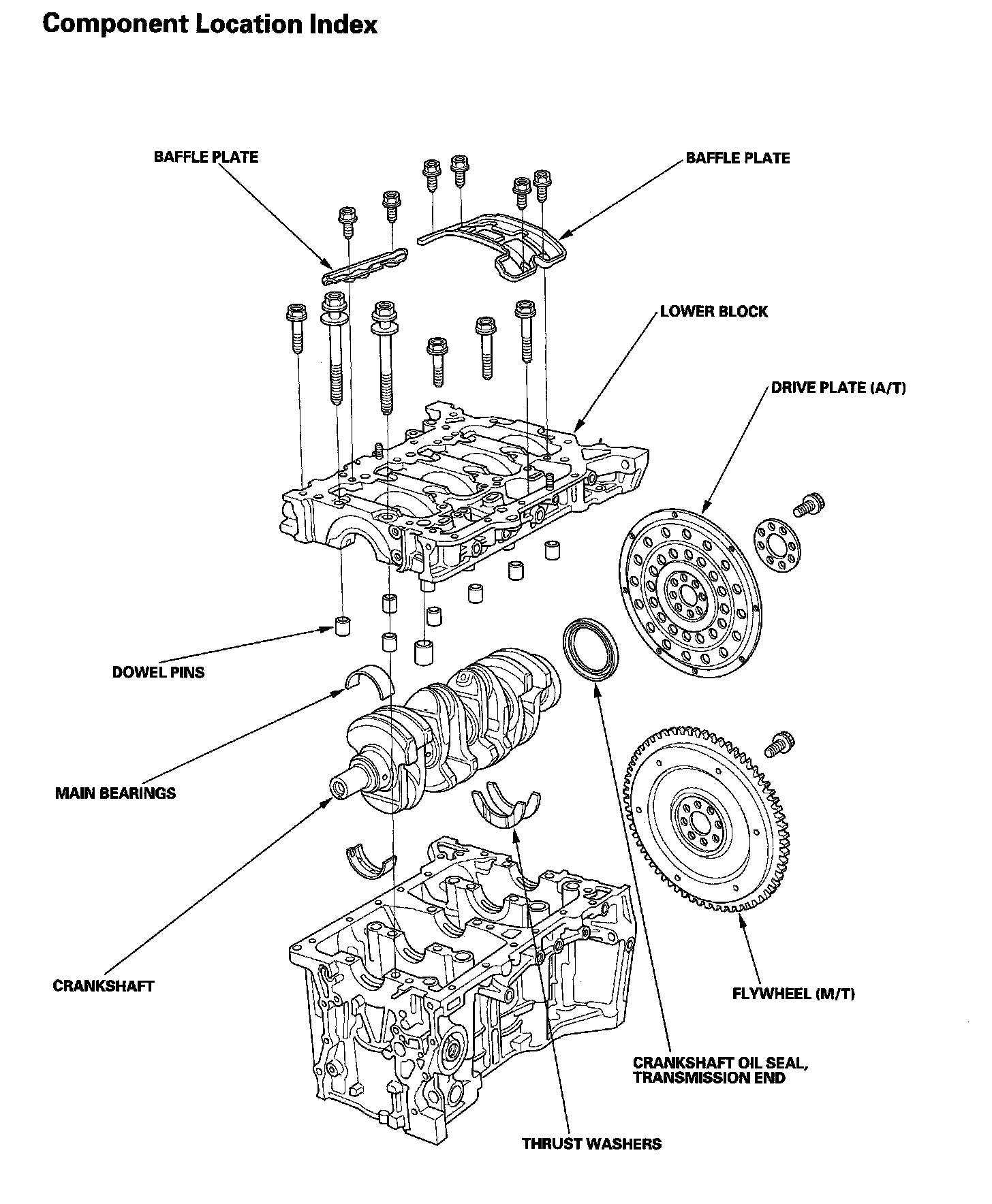

Engine Block Component Location Index (Part 1):

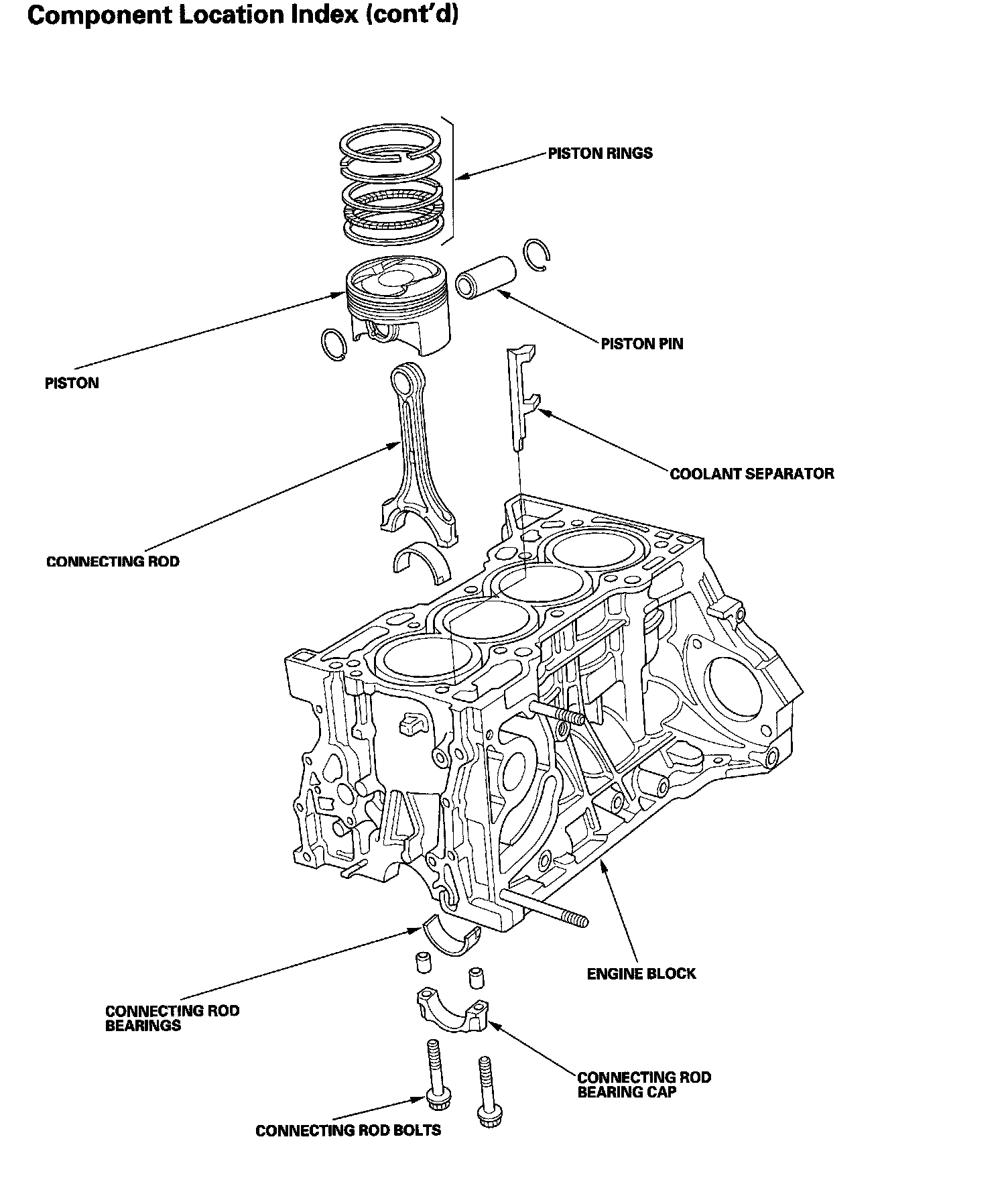

Engine Block Component Location Index (Part 2):
