Relay Box

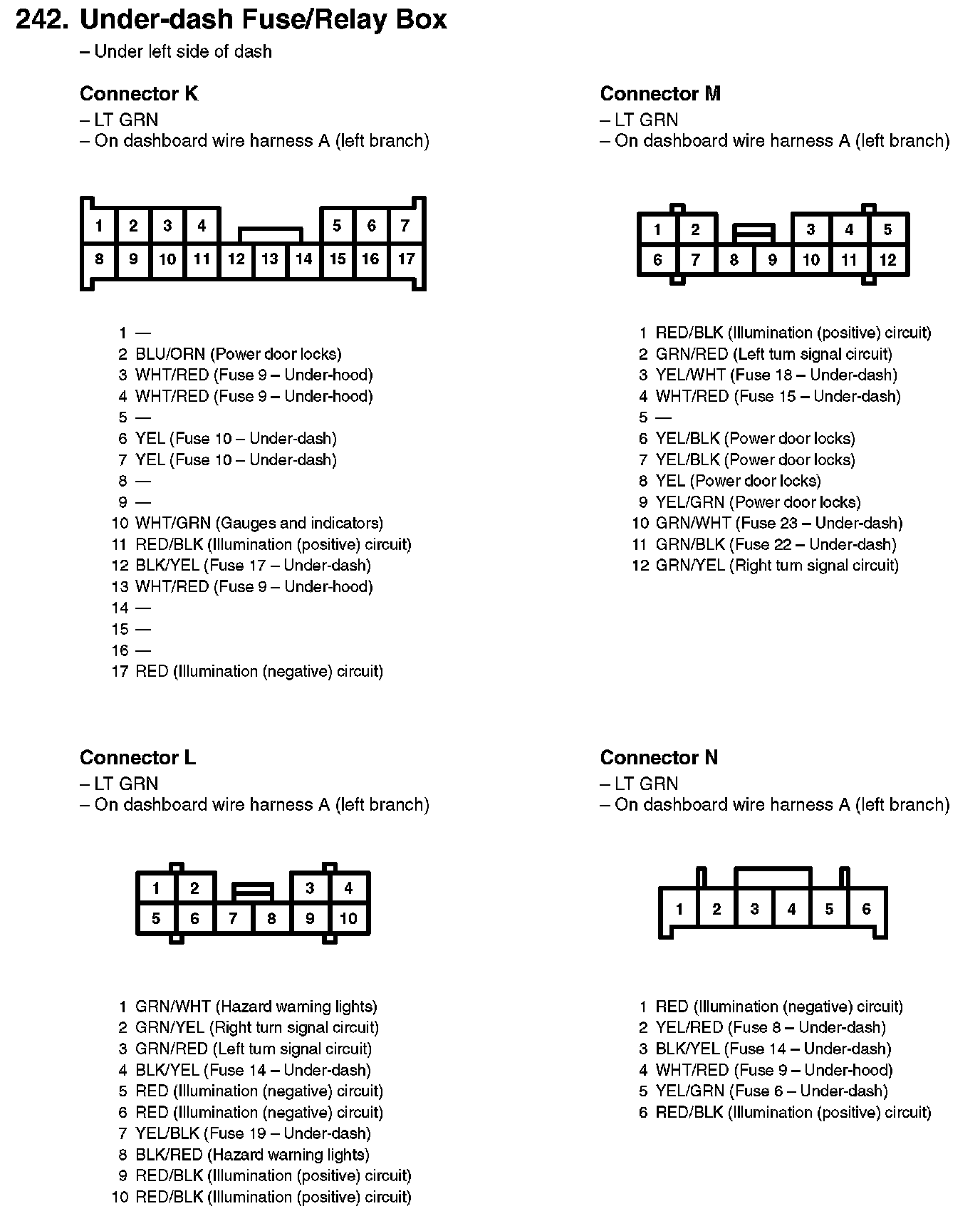

242. Under-dash Fuse/Relay Box:

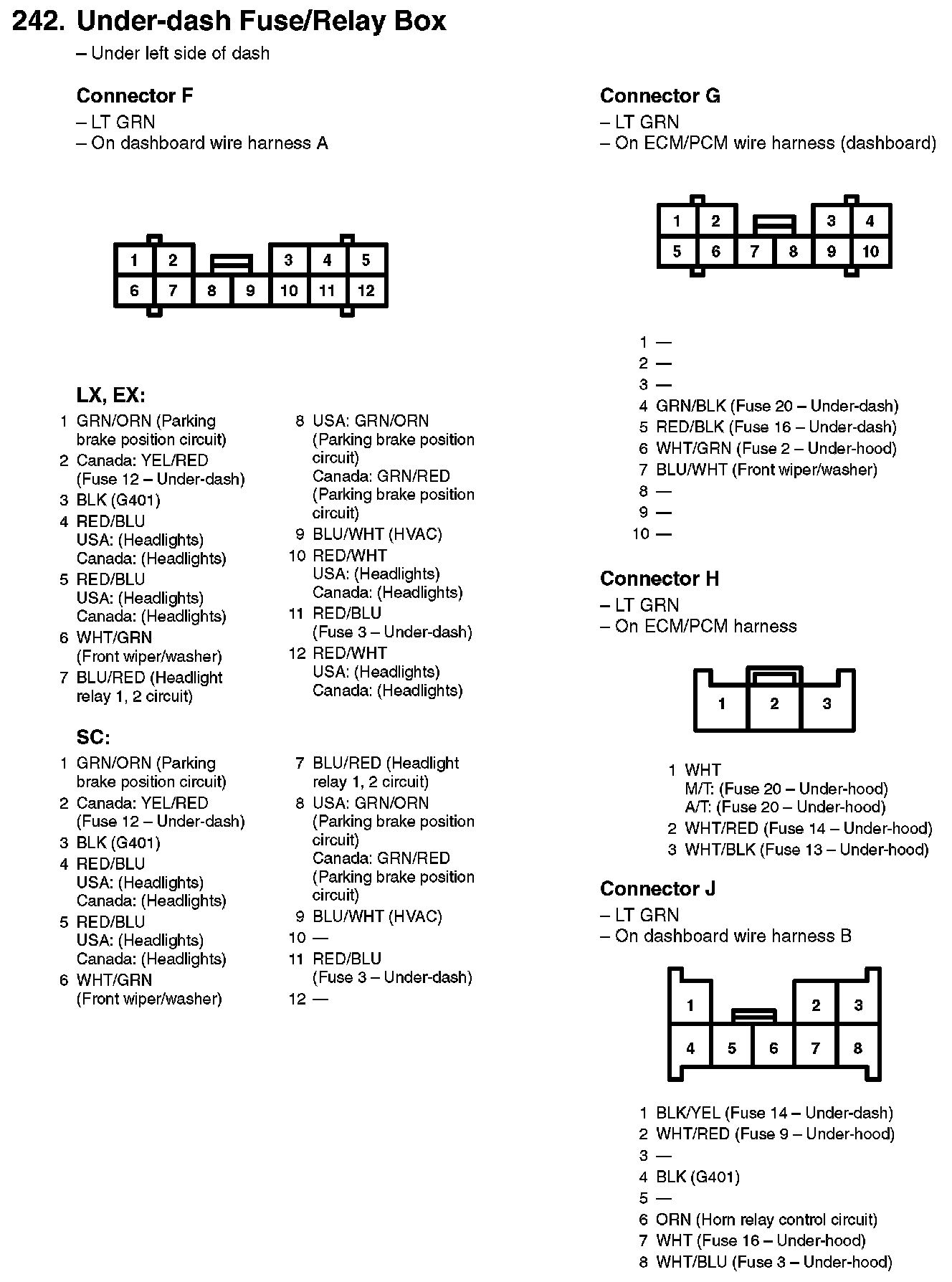

242. Under-dash Fuse/Relay Box:

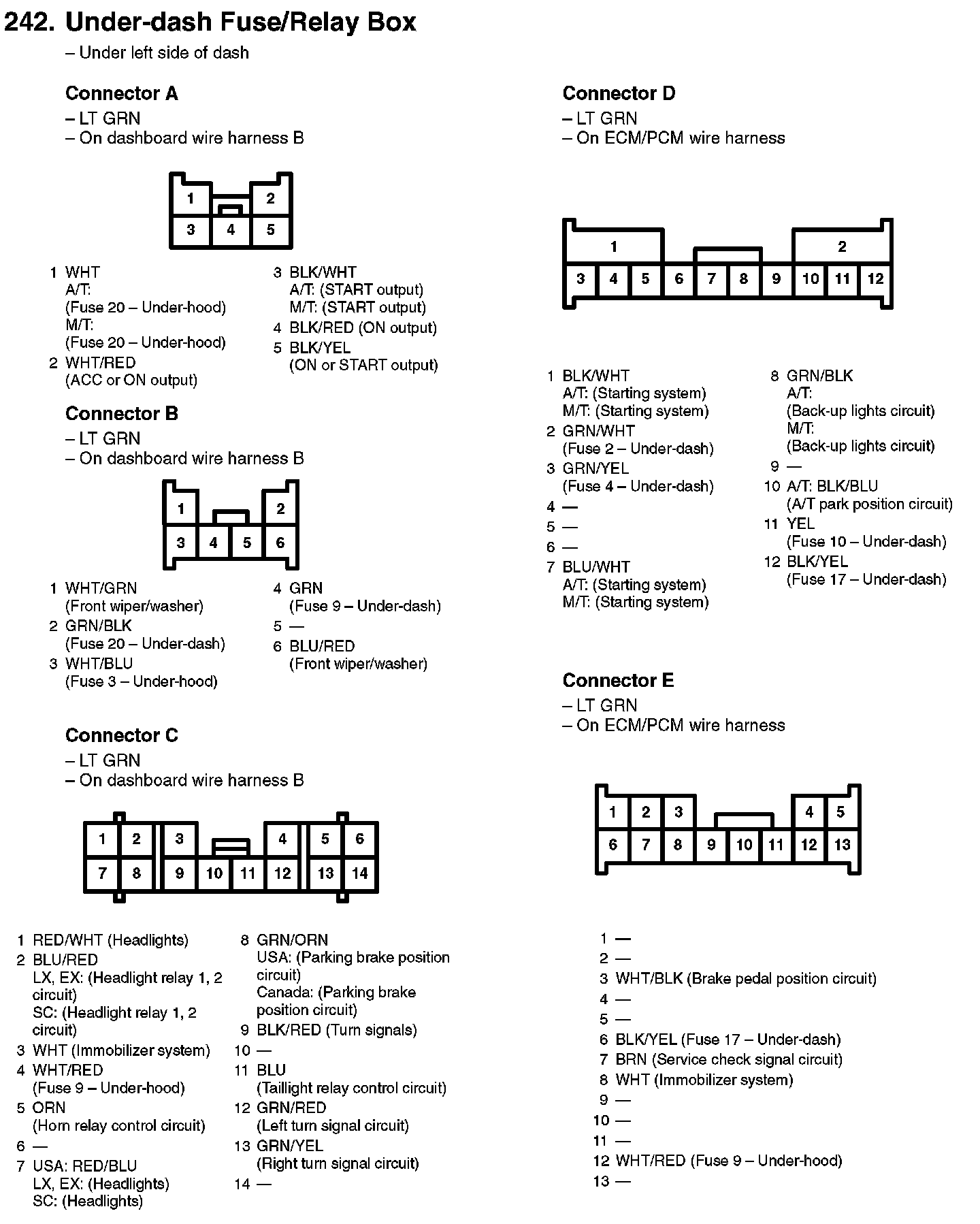

242. Under-dash Fuse/Relay Box:

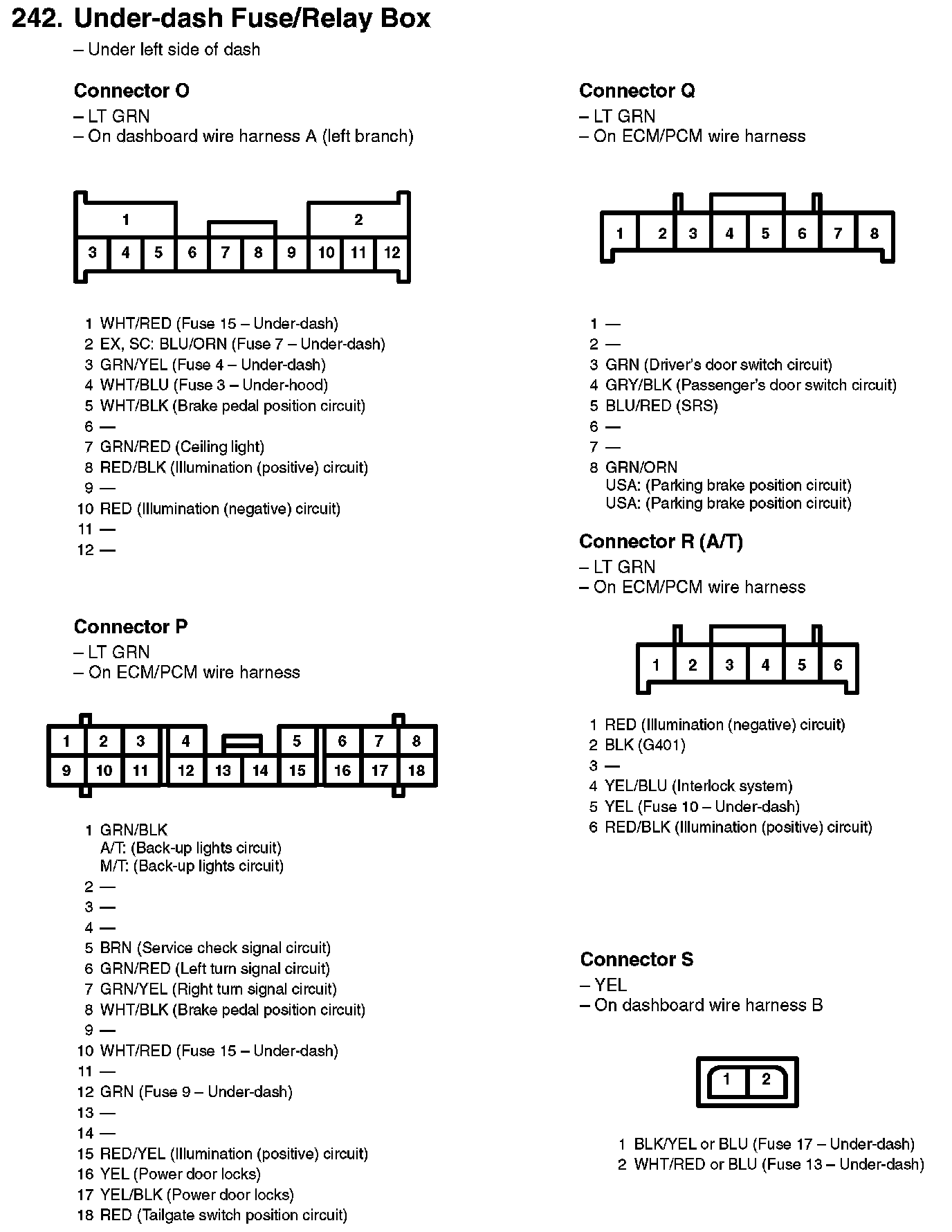

242. Under-dash Fuse/Relay Box:

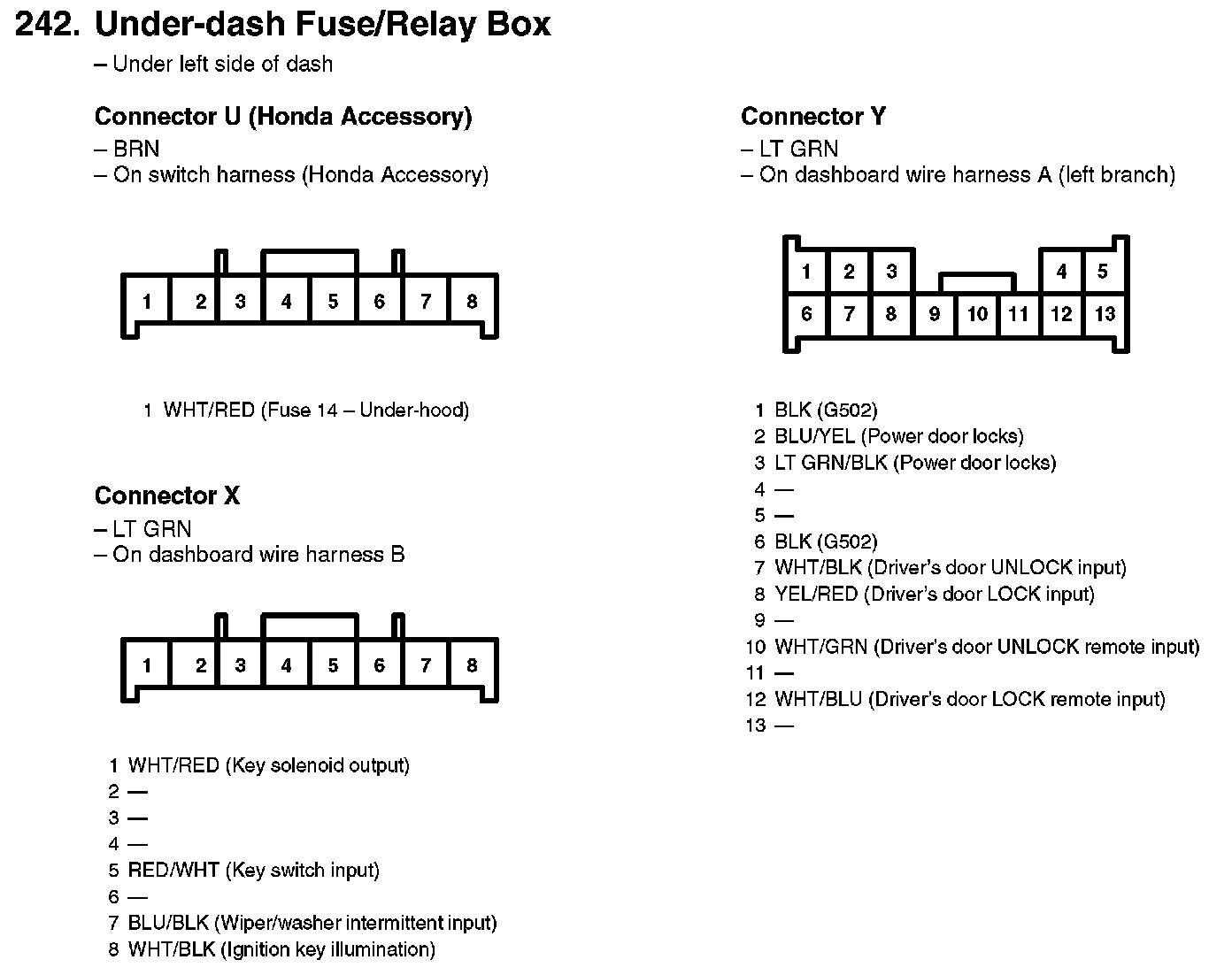

242. Under-dash Fuse/Relay Box:

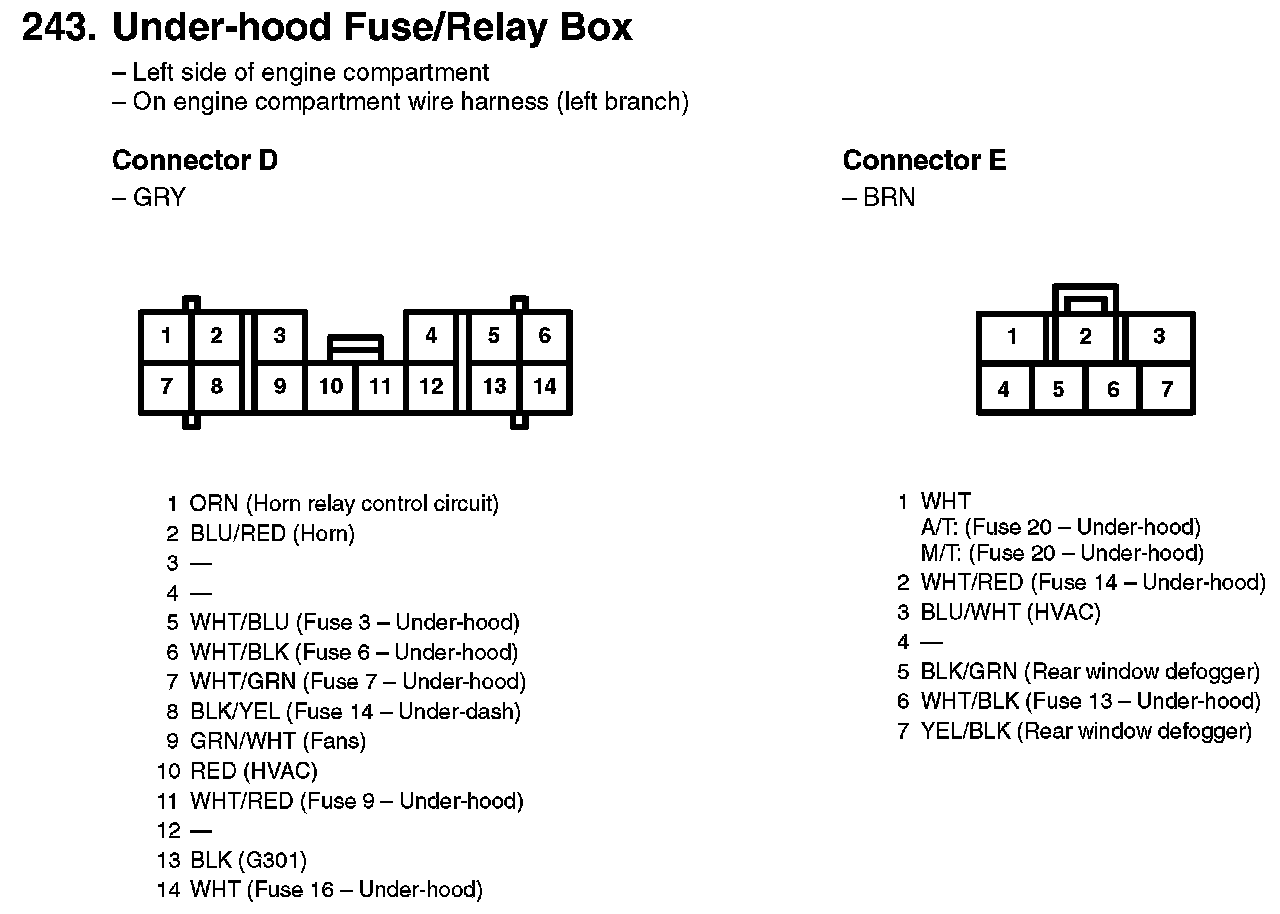

243. Under-hood Fuse/Relay Box:

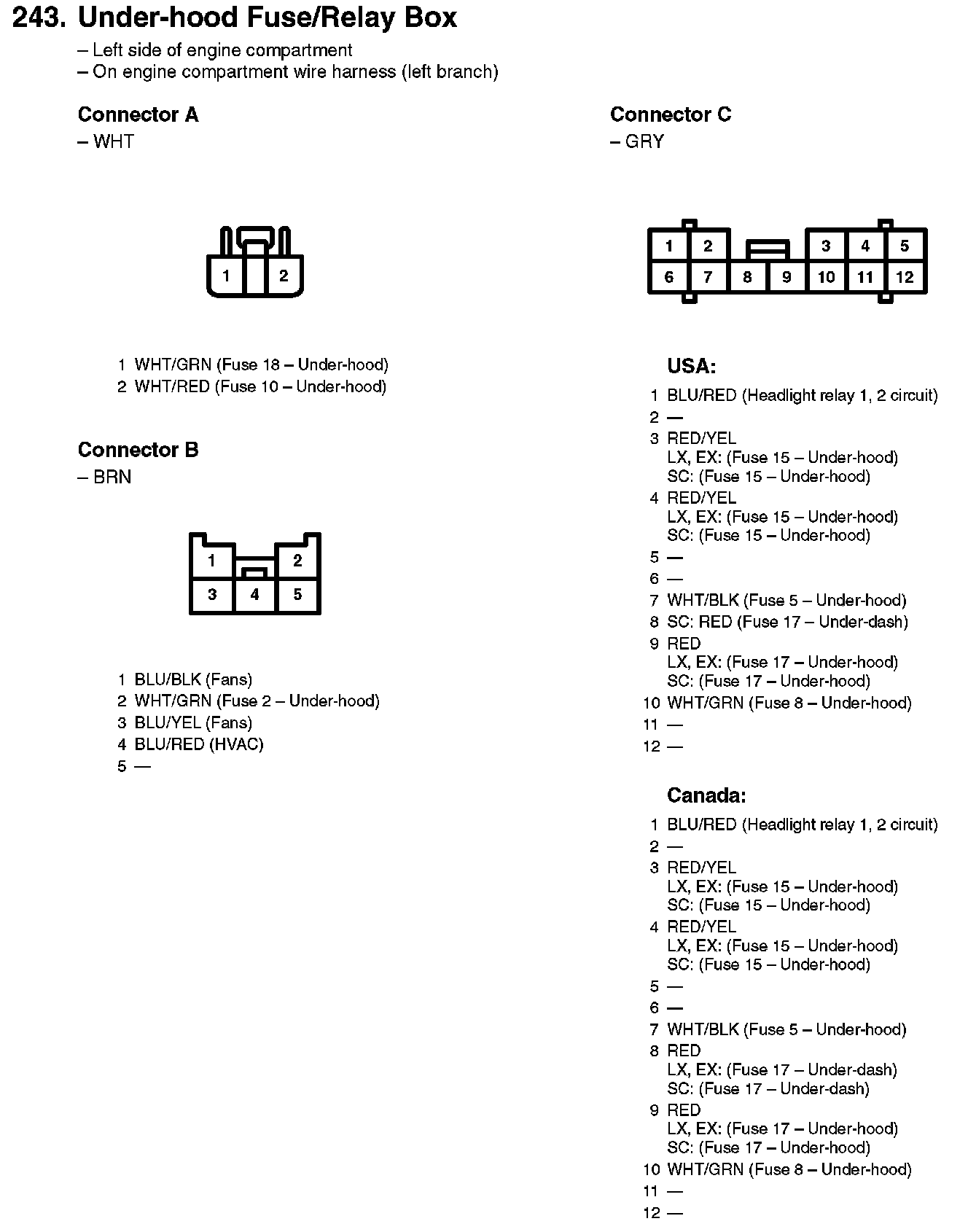

243. Under-hood Fuse/Relay Box:
