Cruise Control Switch
Cruise Control Switch

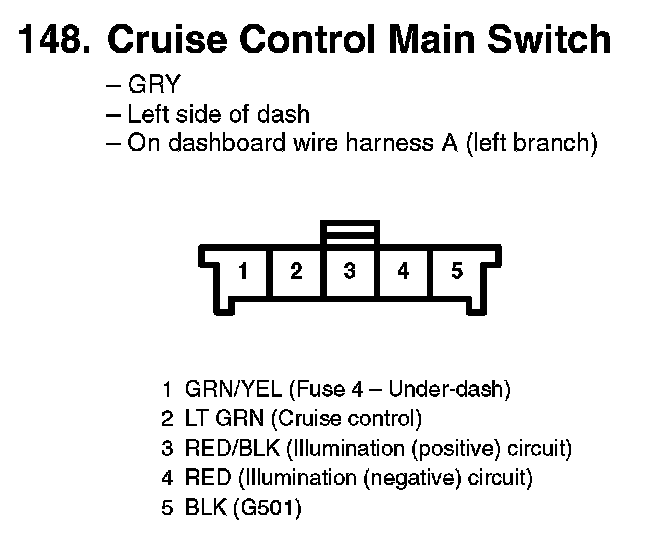

148. Cruise Control Main Switch:

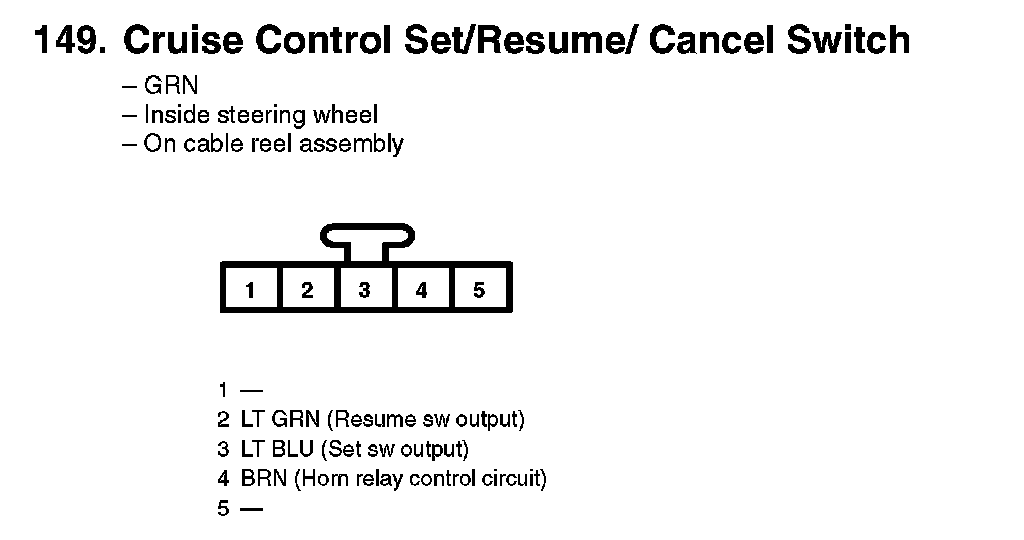

149. Cruise Control Set/Resume/Cancel Switch:
