Home >> Honda >> 2007 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Compressor Clutch

Compressor Clutch

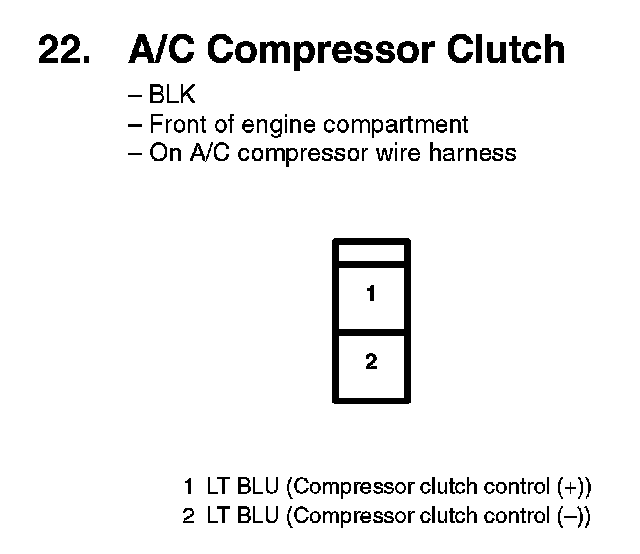

22. A/C Compressor Clutch:
