Home >> Honda >> 2007 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

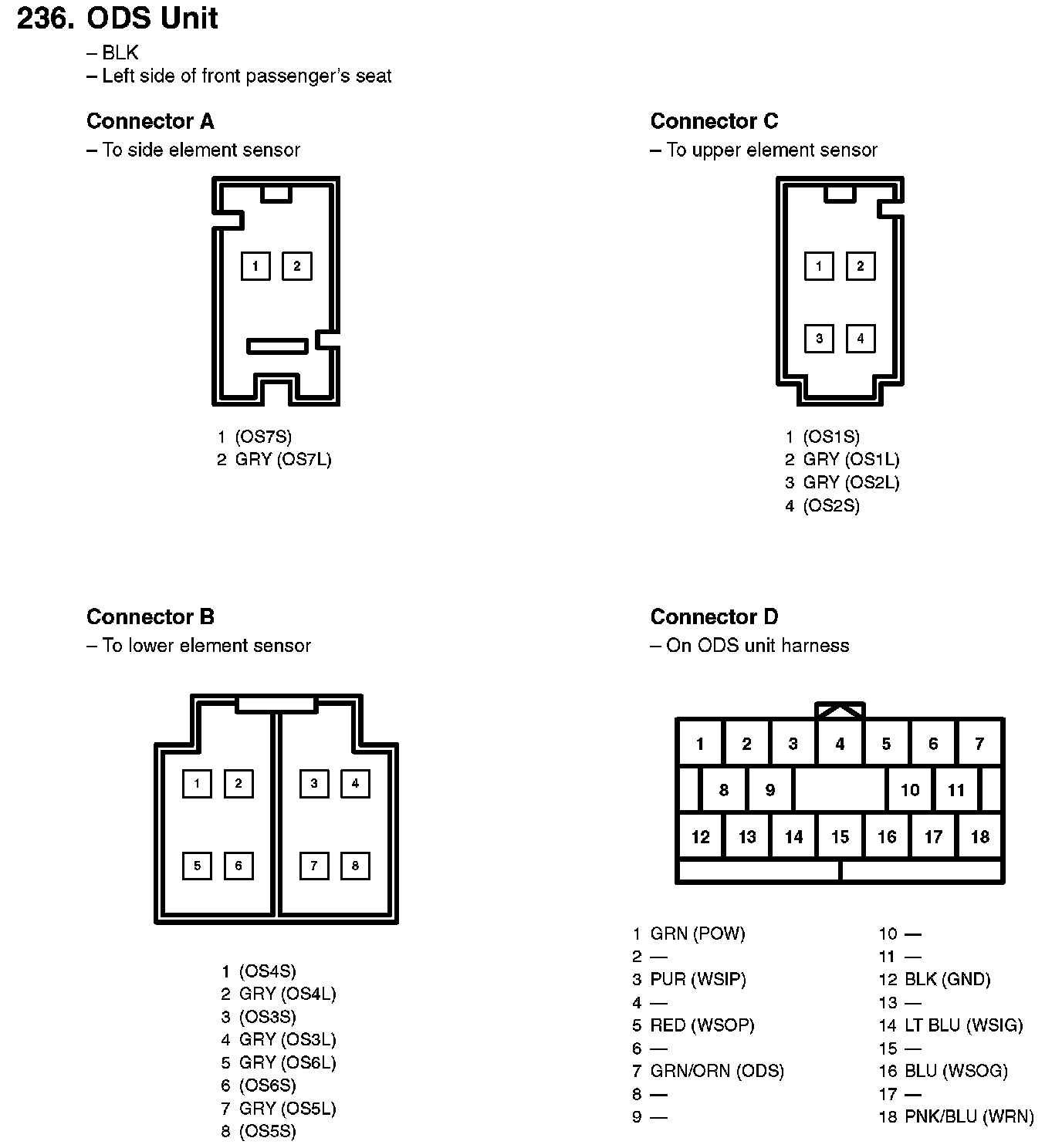

236. ODS Unit:

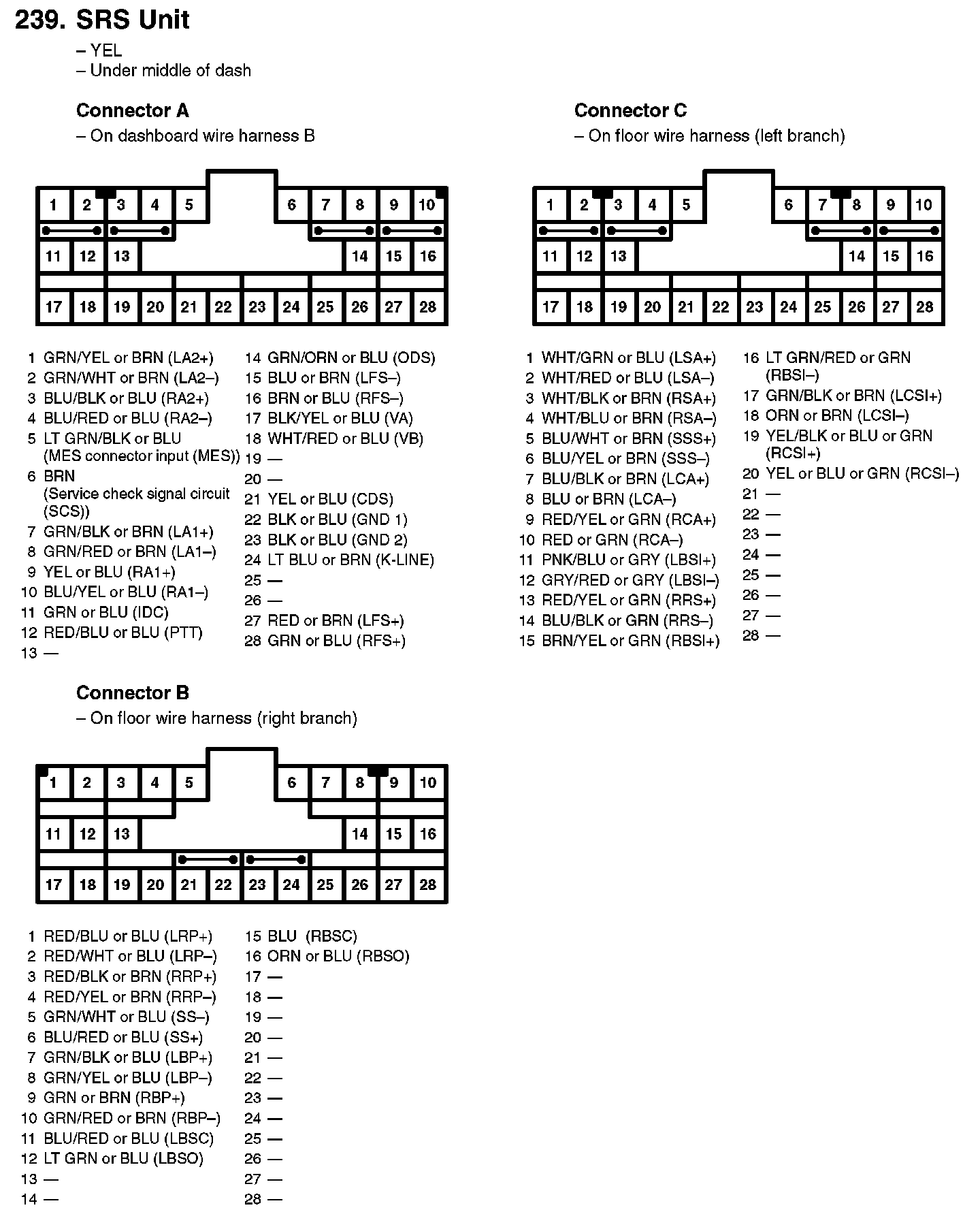

239. SRS Unit:
