Home >> Honda >> 2007 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> ABS Sensor Block

ABS Sensor Block

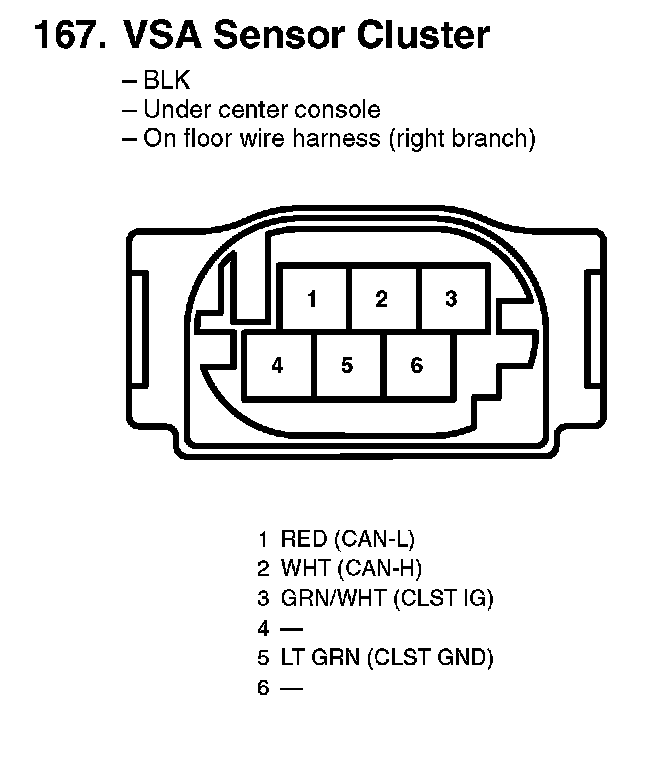

167. VSA Sensor Cluster:
