Pinout Values and Diagnostic Parameters

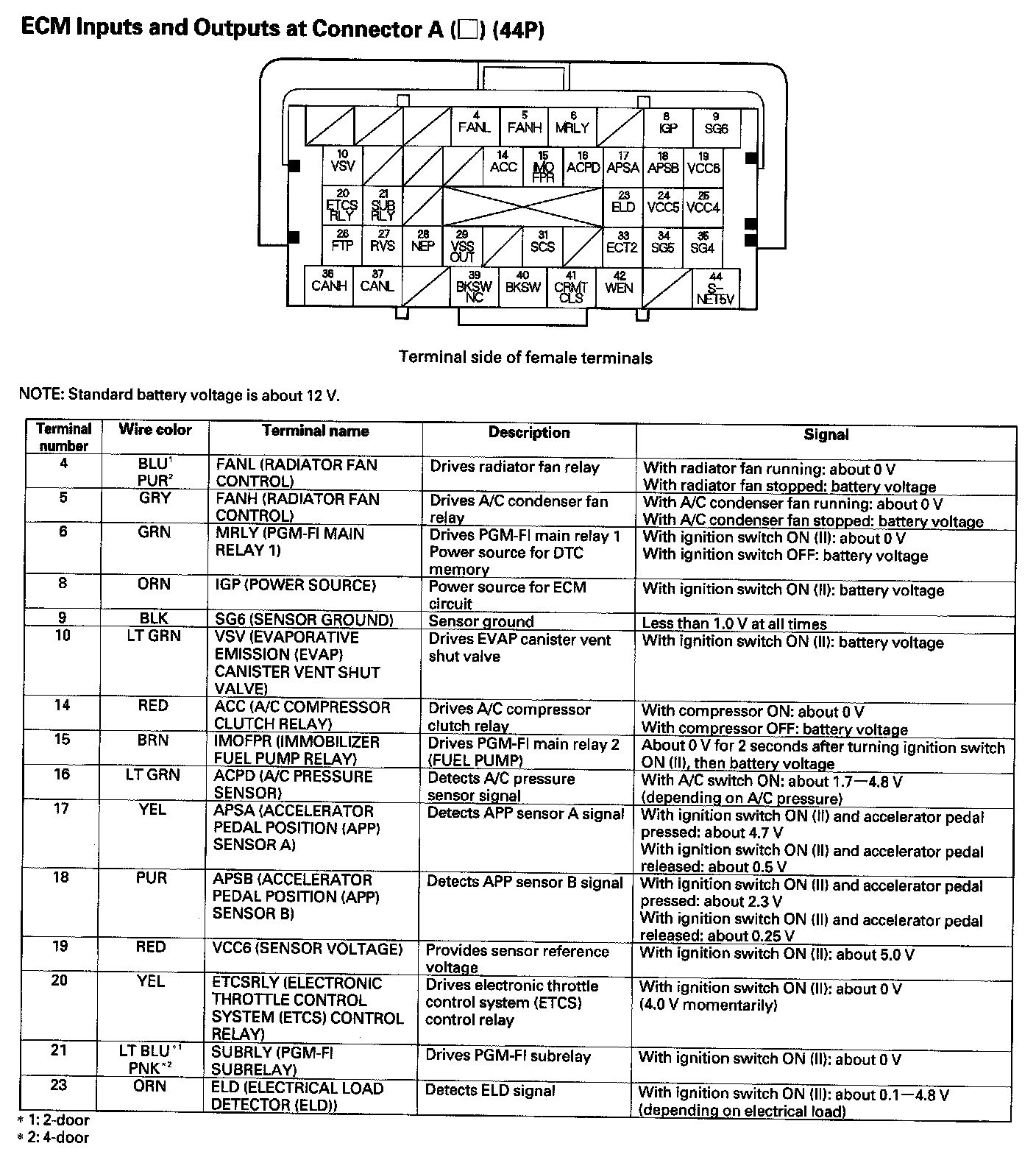

ECM Inputs And Outputs Connector A (44P) (Part 1):

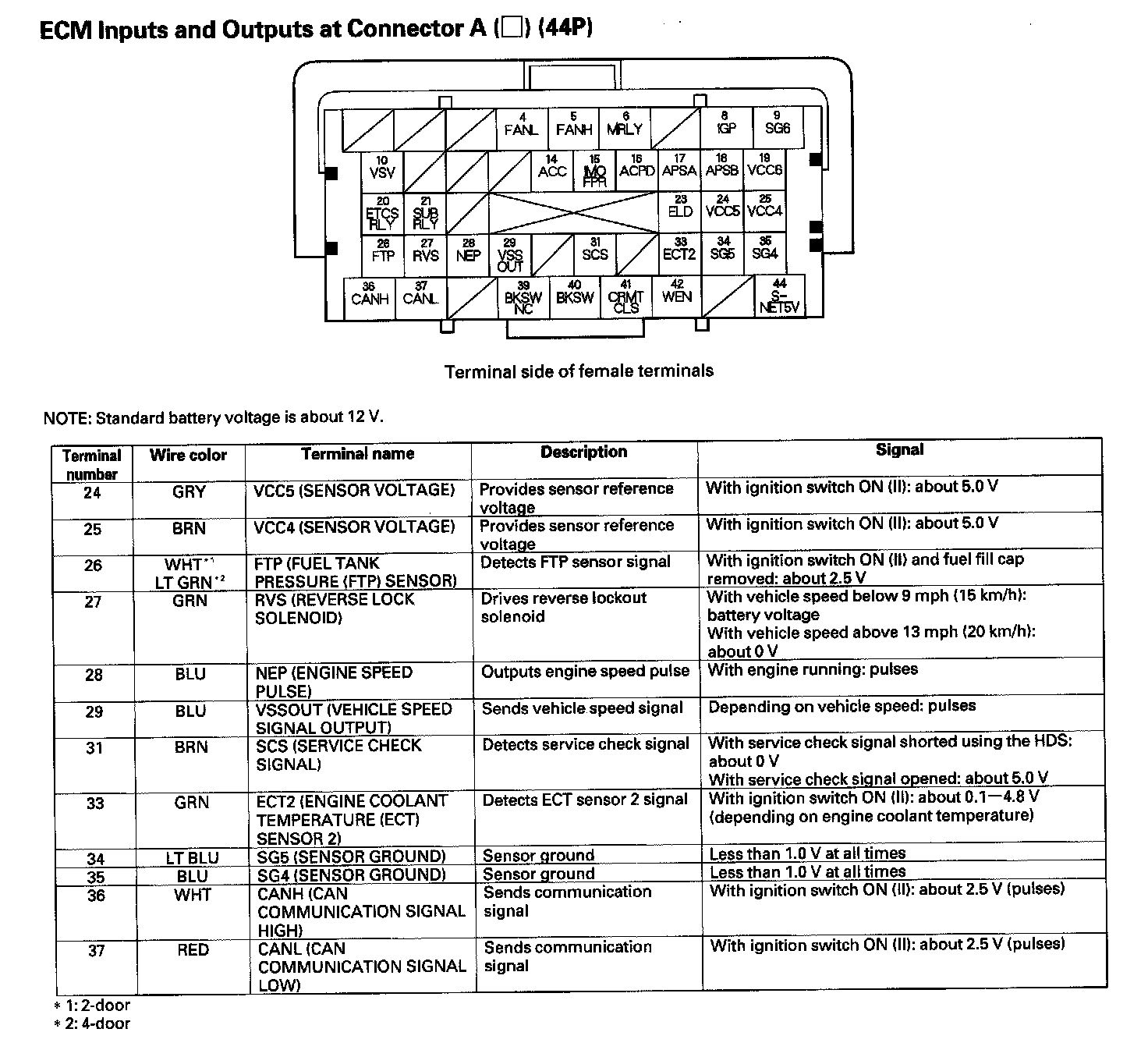

ECM Inputs And Outputs Connector A (44P) (Part 2):

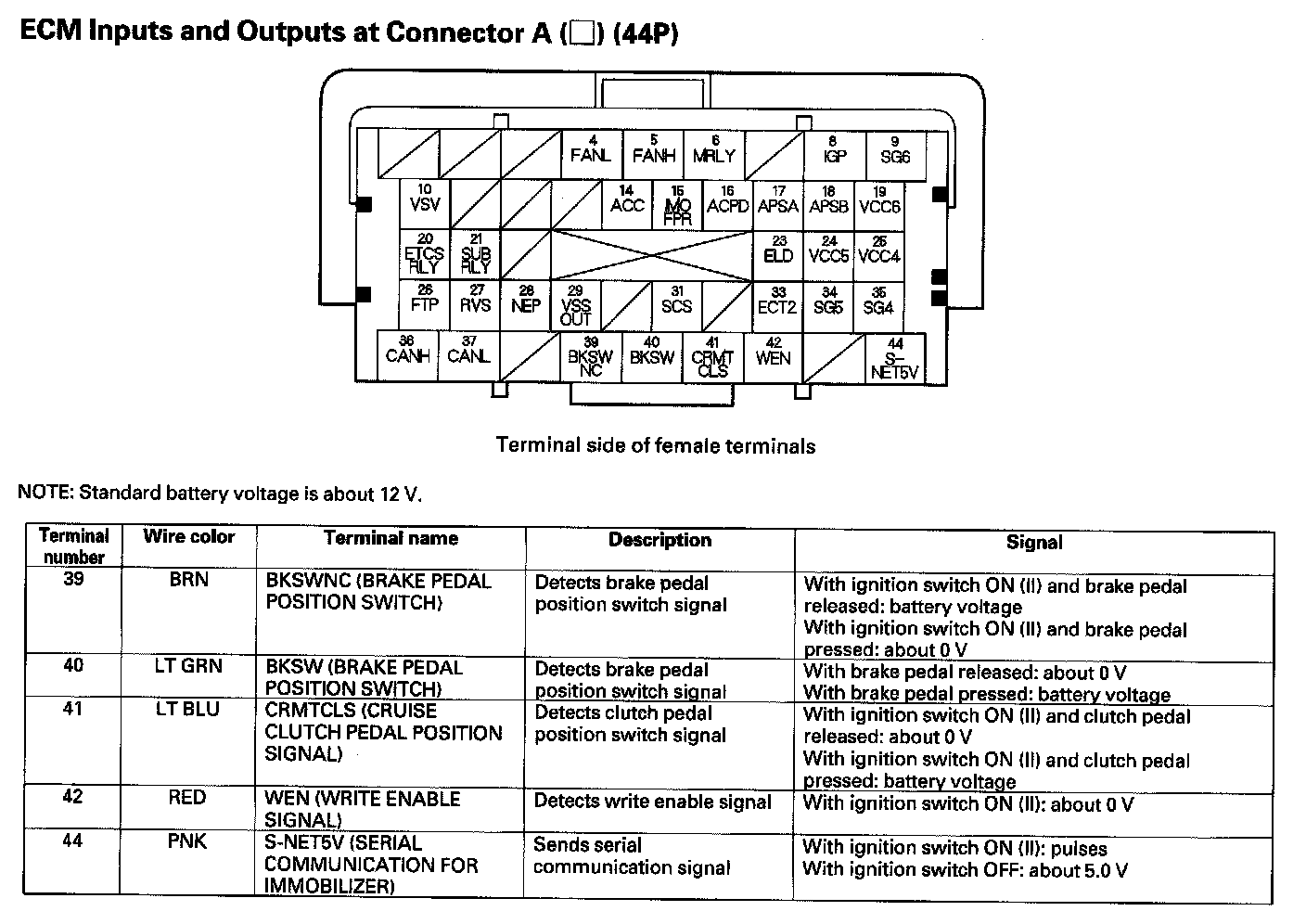

ECM Inputs And Outputs Connector A (44P) (Part 3):



ECM Inputs And Outputs Connector B (44P):

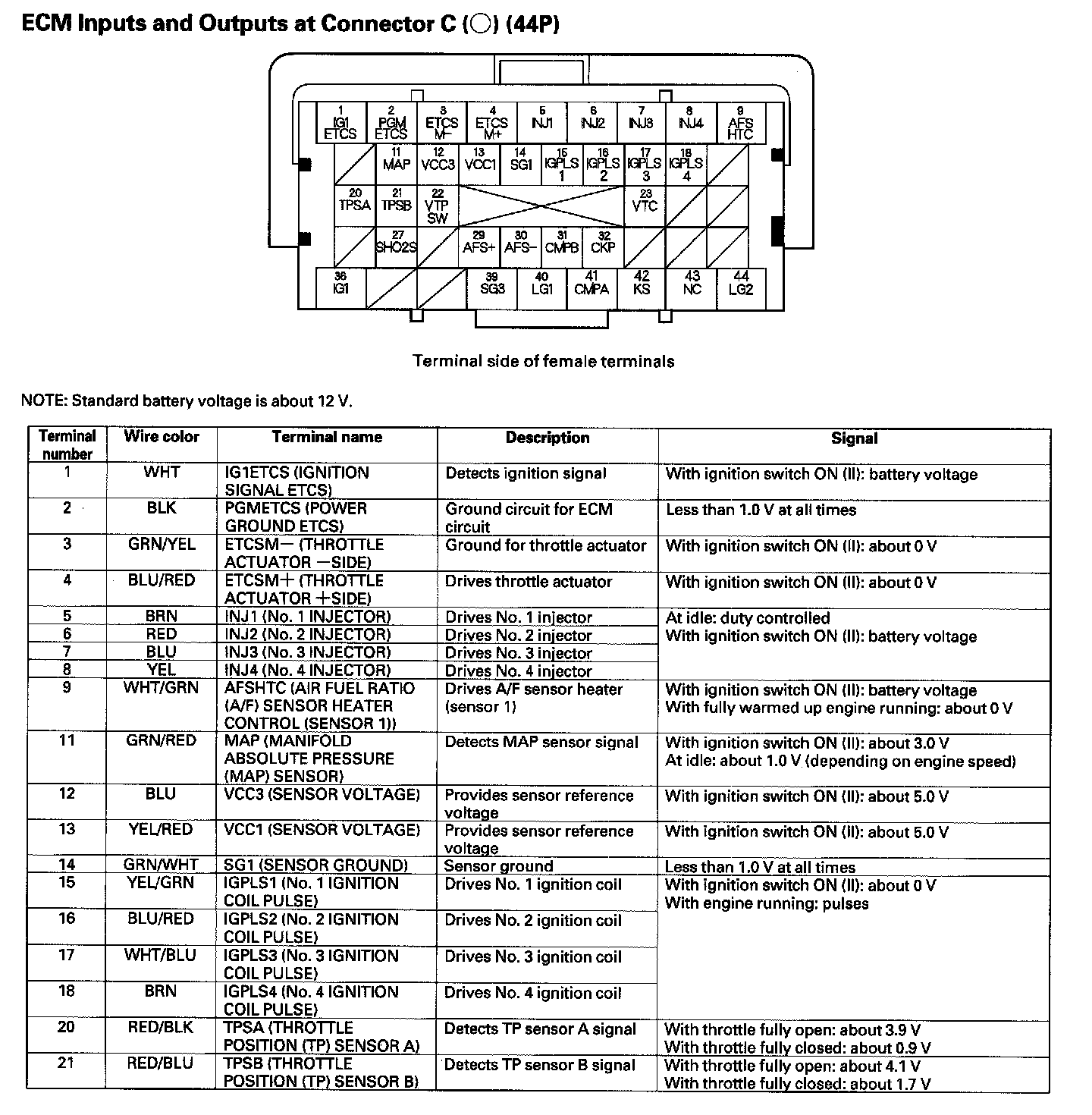

ECM Inputs And Outputs Connector C (44P) (Part 1):

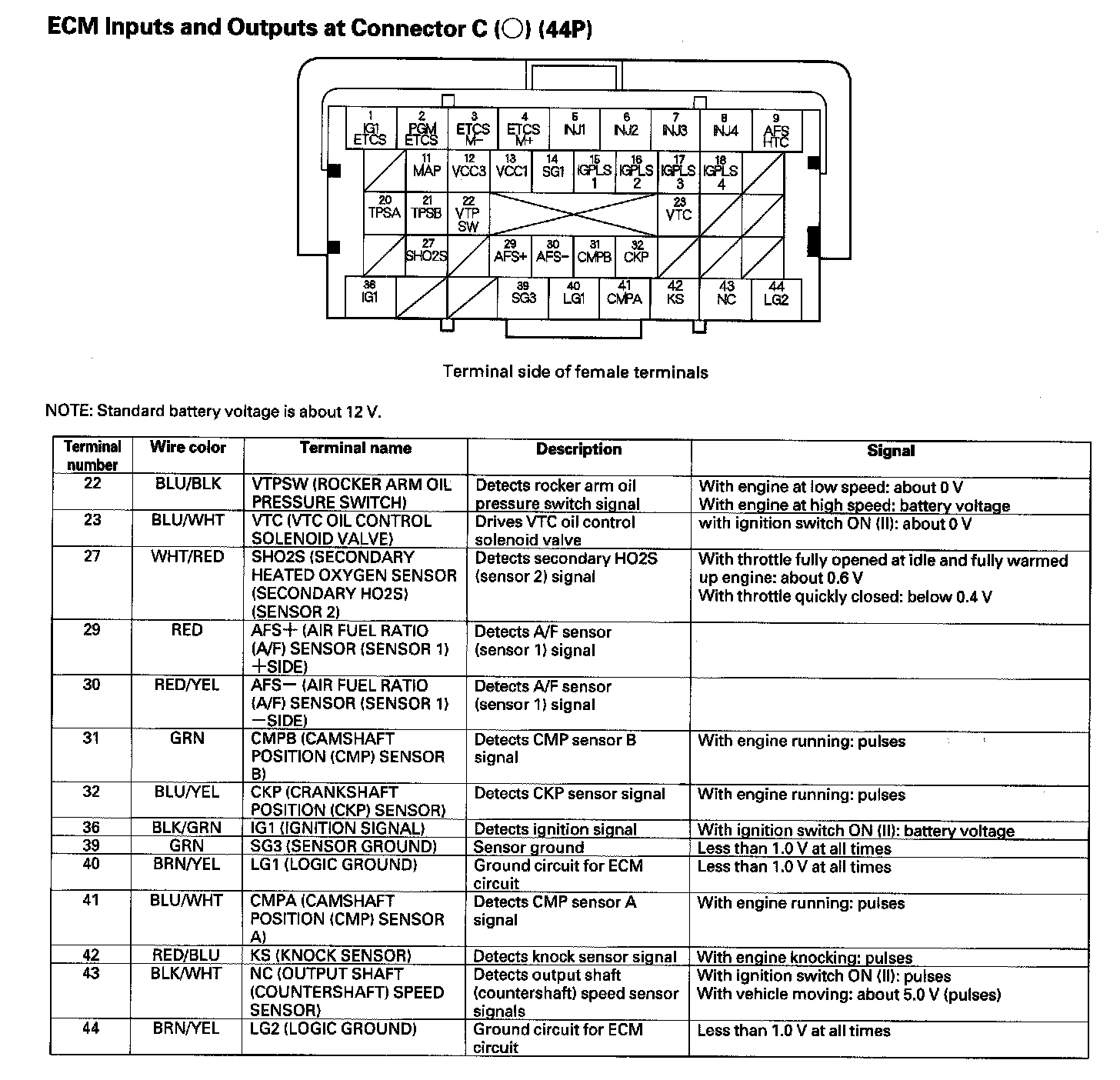

ECM Inputs And Outputs Connector C (44P) (Part 2):
