Home >> Honda >> 2007 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> ECM/PCM

ECM/PCM

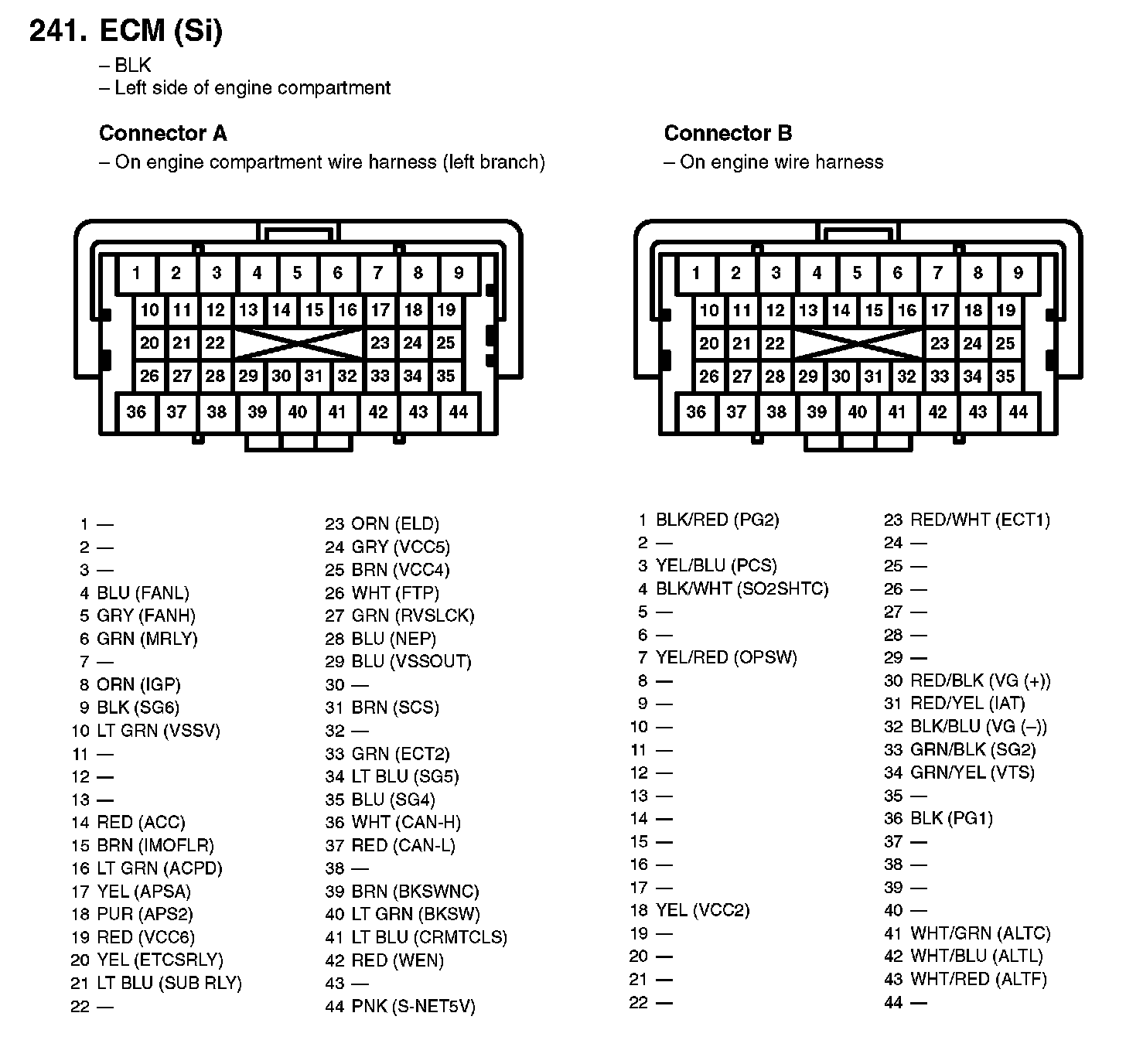

241. ECM (Si):

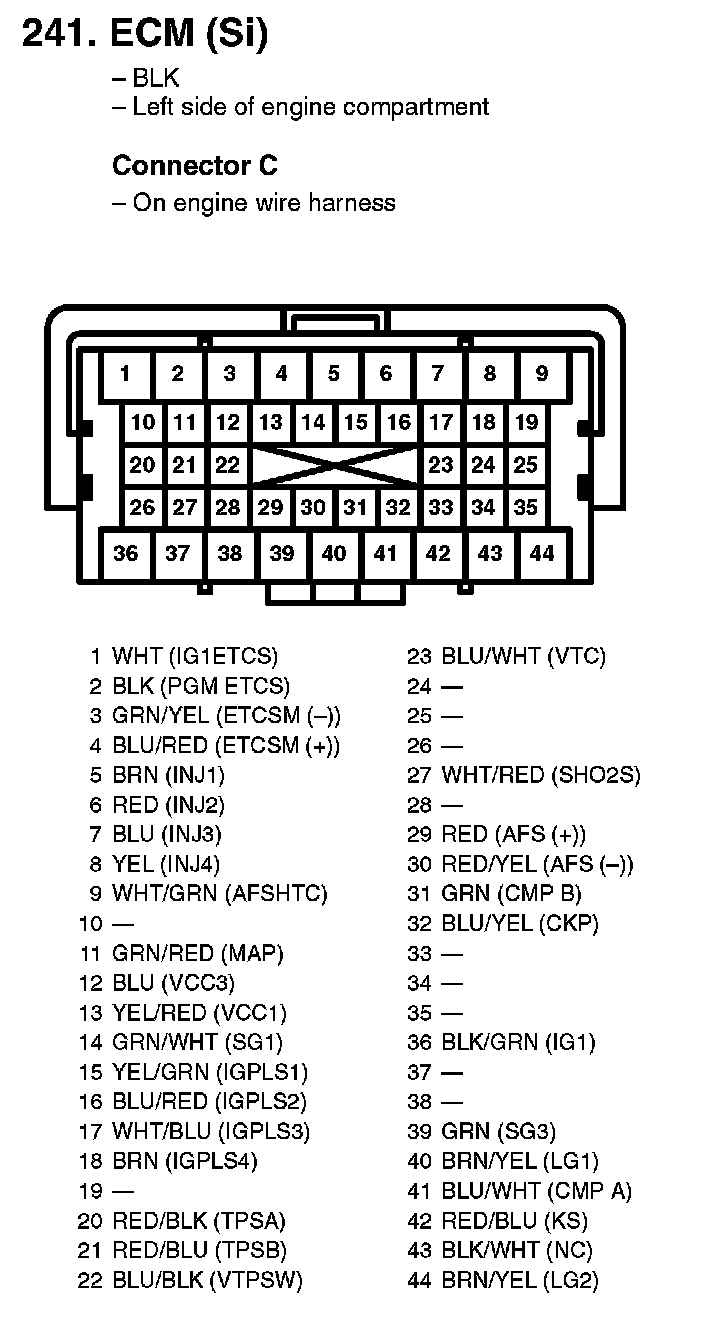

241. ECM (Si):
