Home >> Honda >> 2007 >> Civic L4-1.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Knock Sensor >> Locations

Knock Sensor: Locations

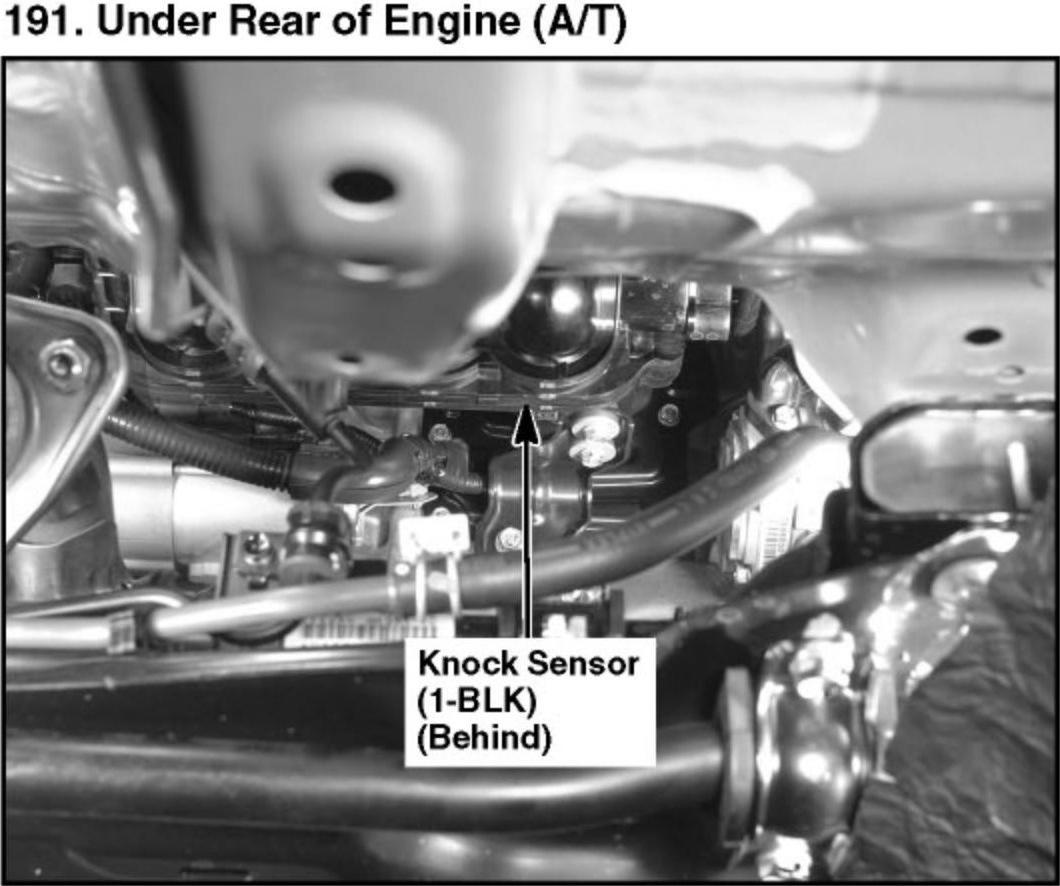

191. Under Rear of Engine (A/T):

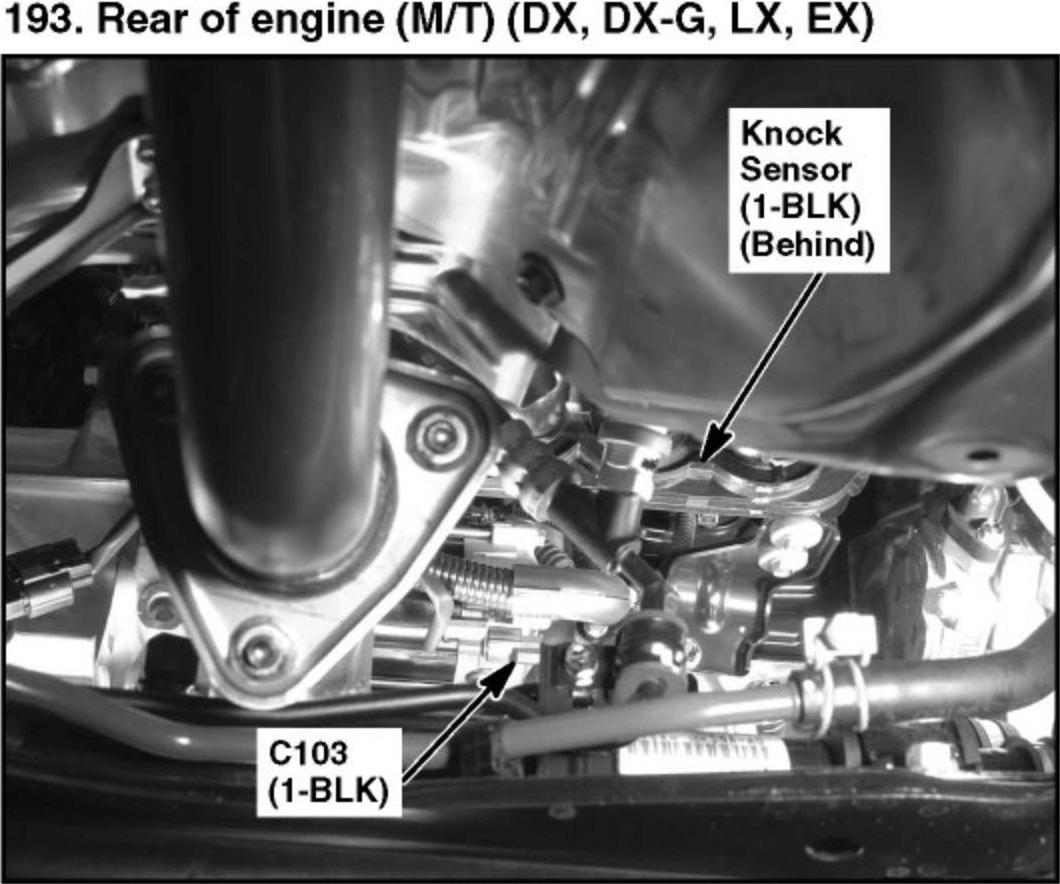

193. Rear of engine (M/T) (DX, DX-G, LX, EX):



PGM-FI System Component Location Index:
