Home >> Honda >> 2007 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module >> ABS Modulator-Control Unit

ABS Modulator-Control Unit

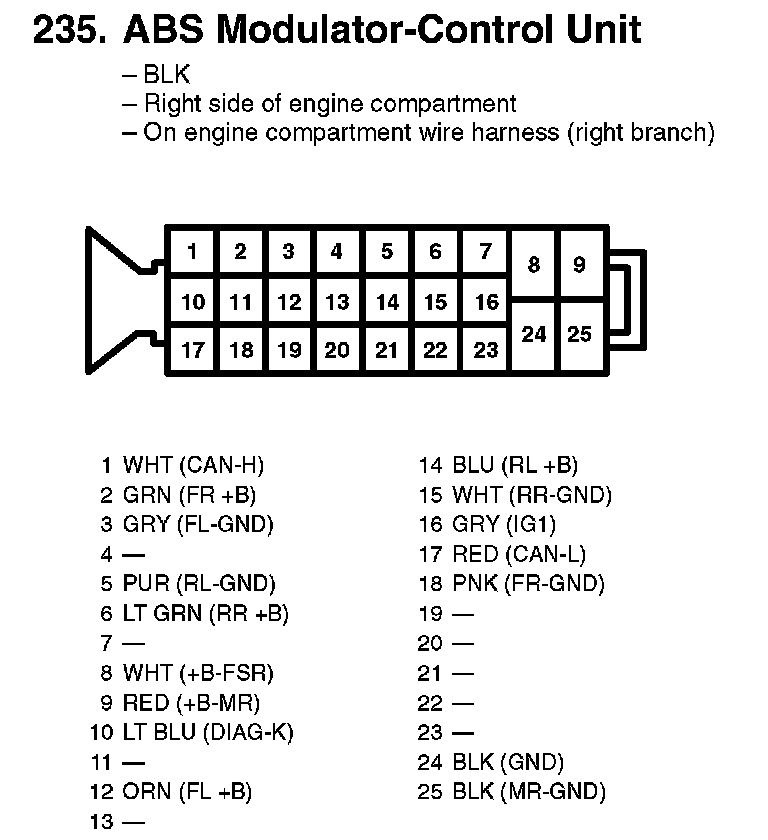

235. ABS Modulator-Control Unit:
