Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

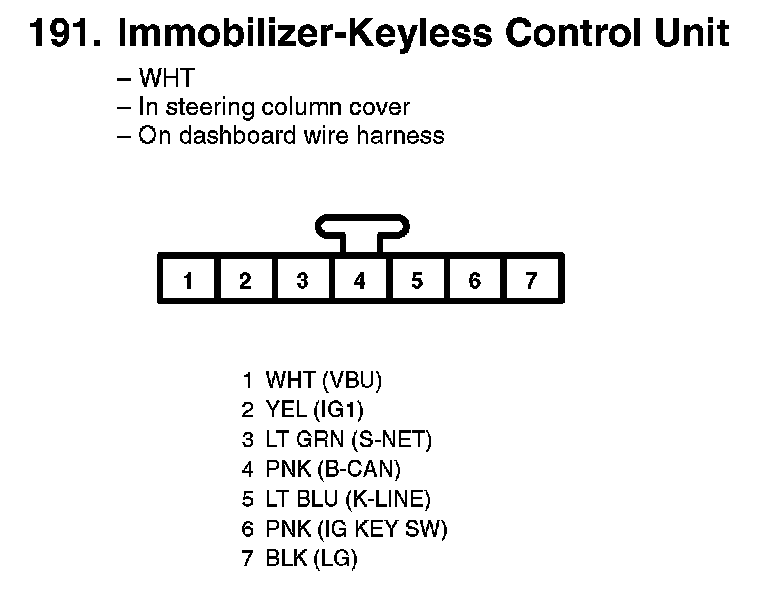

191. Immobilizer-keyless Control Unit:

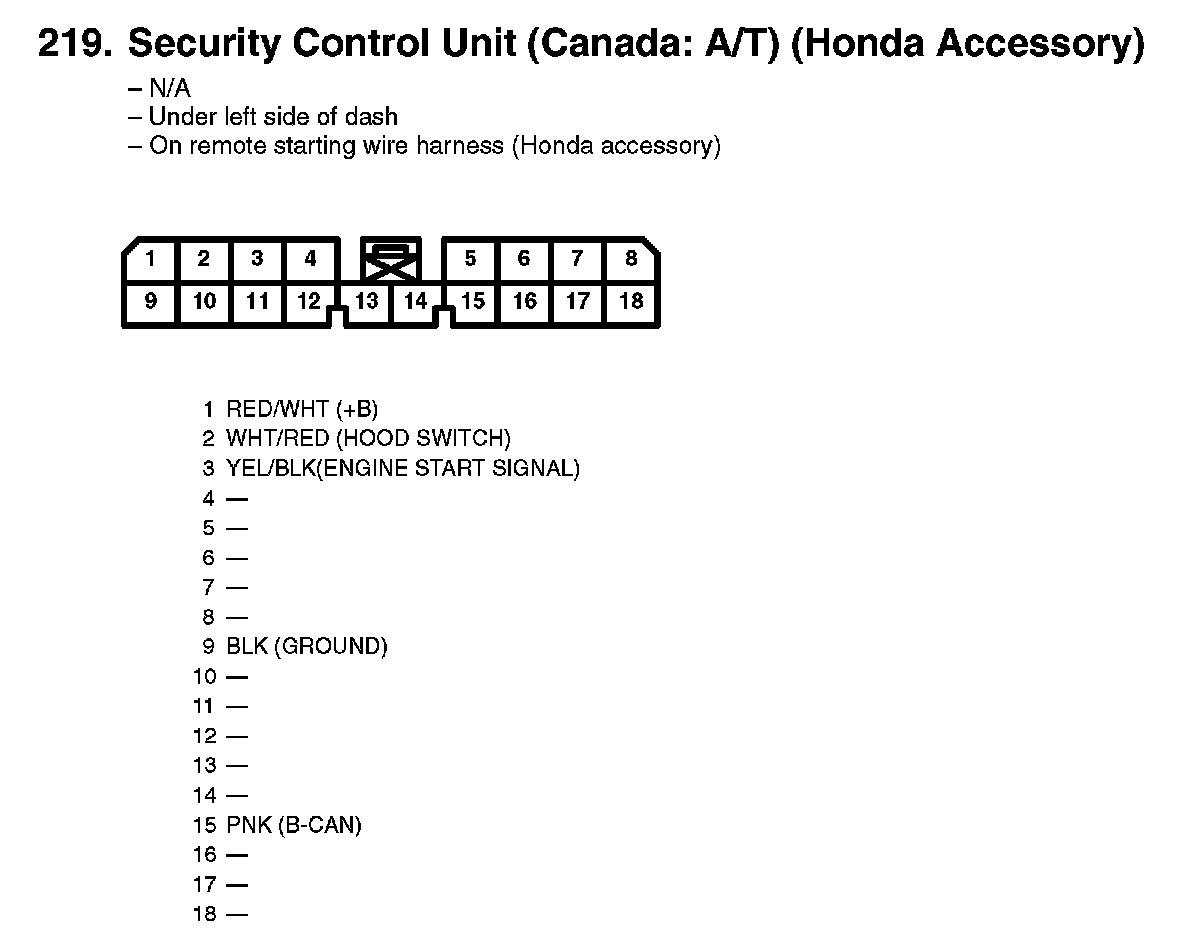

219. Security Control Unit (Canada: A/T) (Honda Accessory):
