Home >> Honda >> 2007 >> Civic L4-1.8L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Navigation Module >> Locations

Navigation Module: Locations

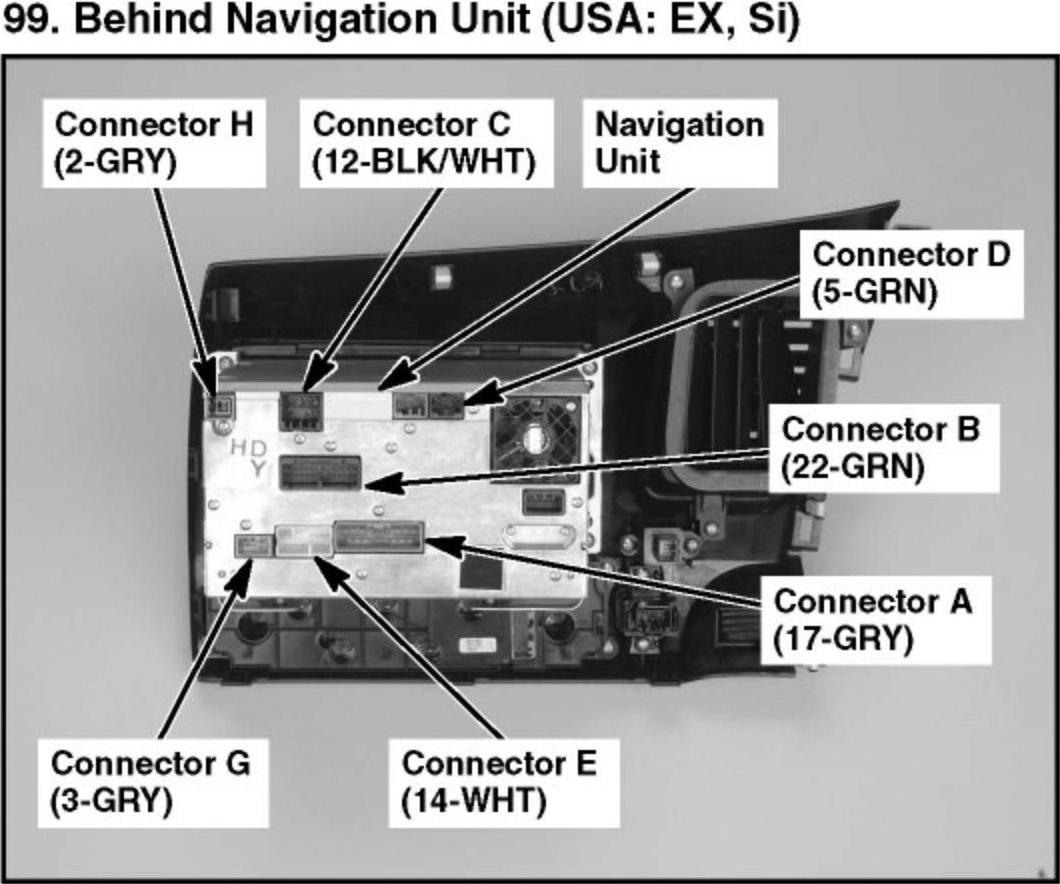

99. Behind Navigation Unit (USA: EX, Si):

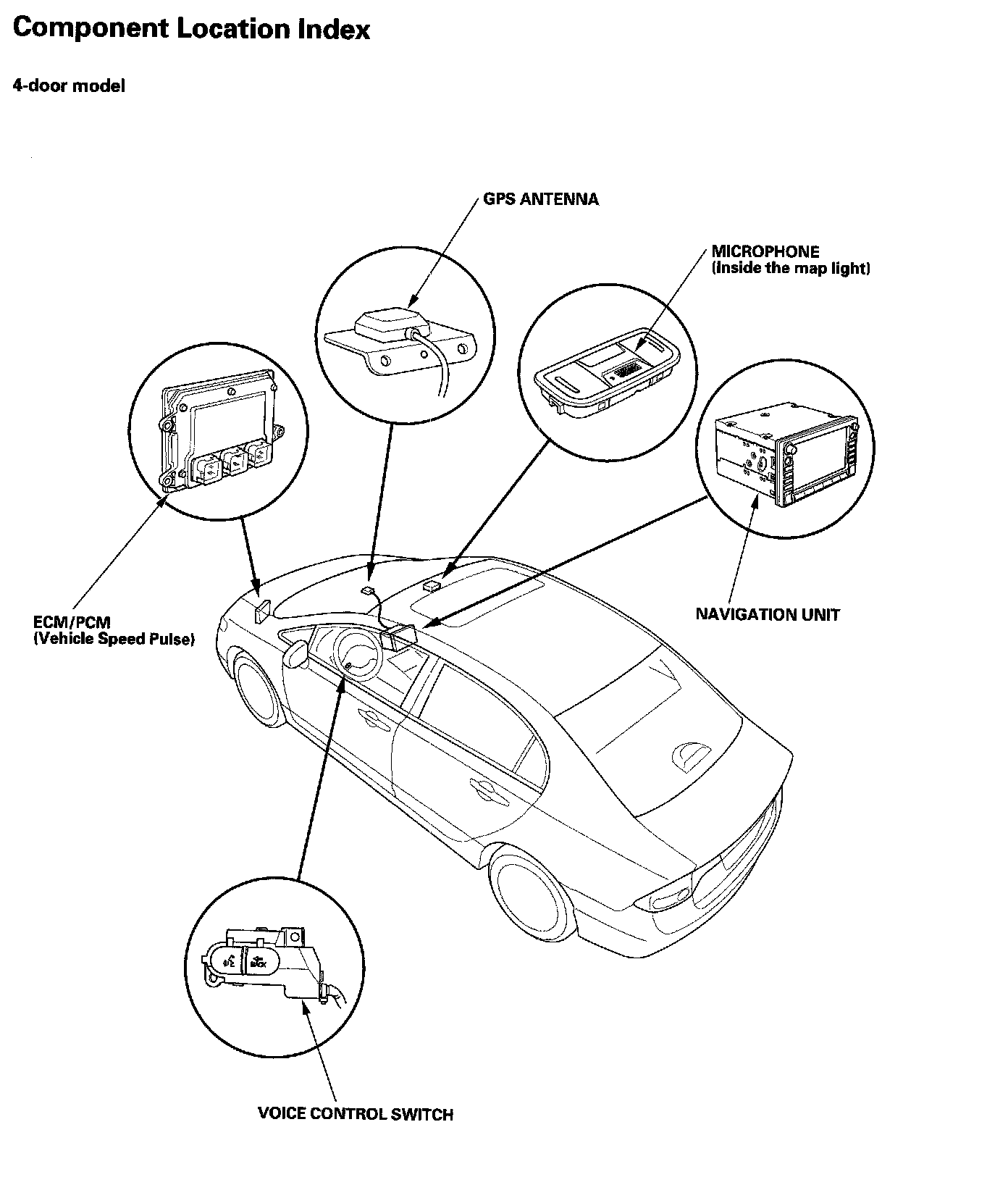

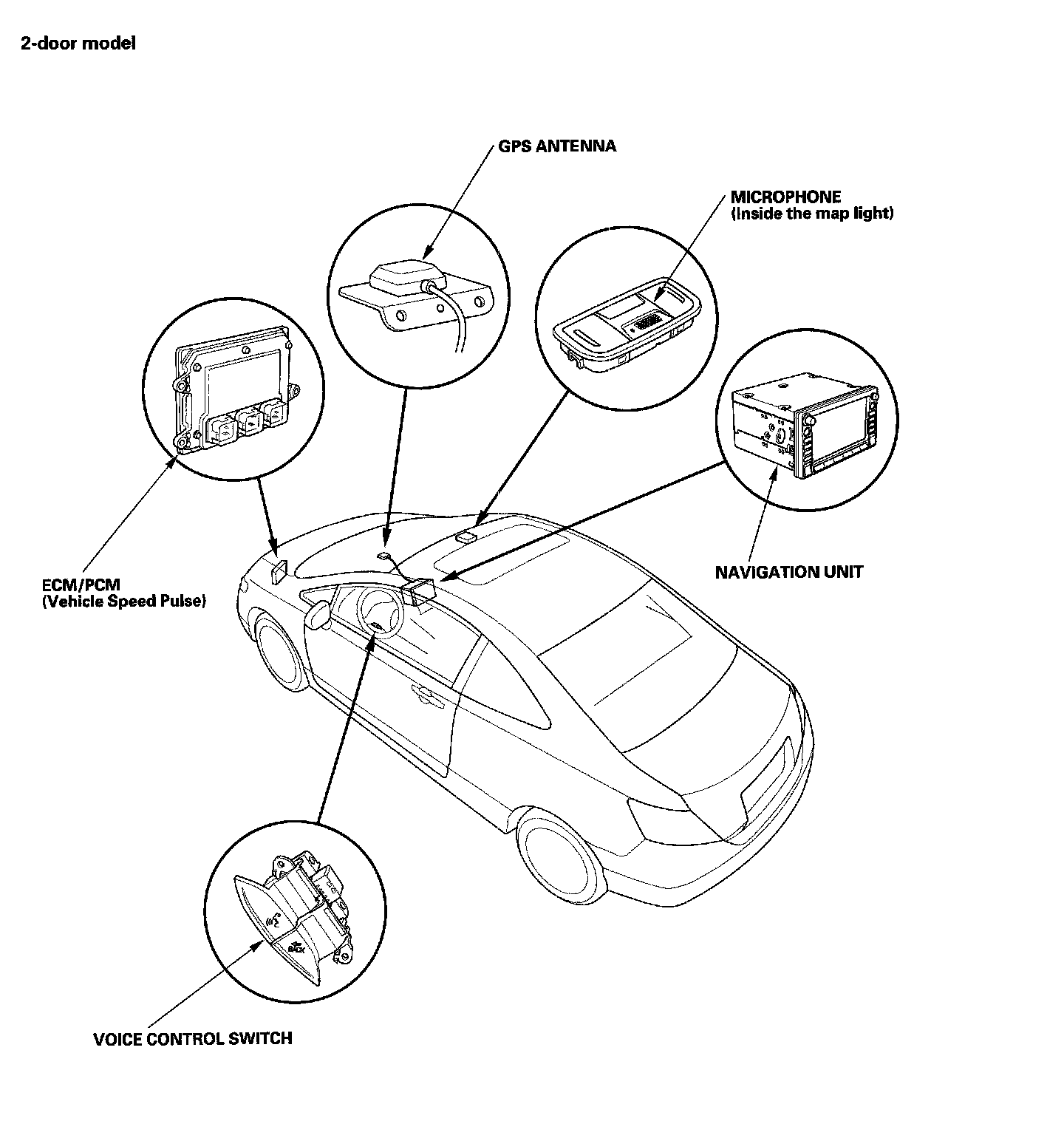

Navigation System Component Location Index:



Navigation System Component Location Index:

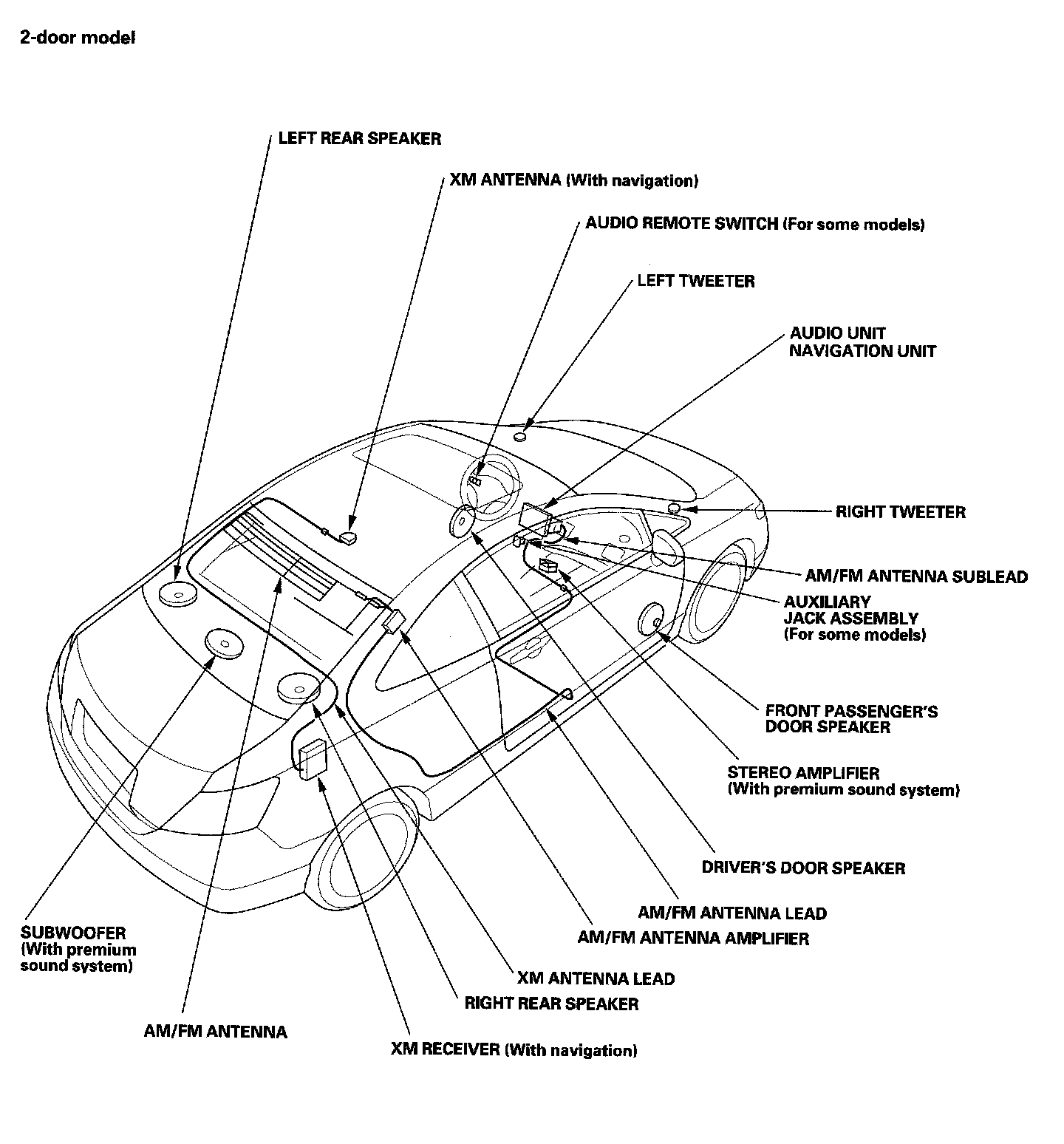

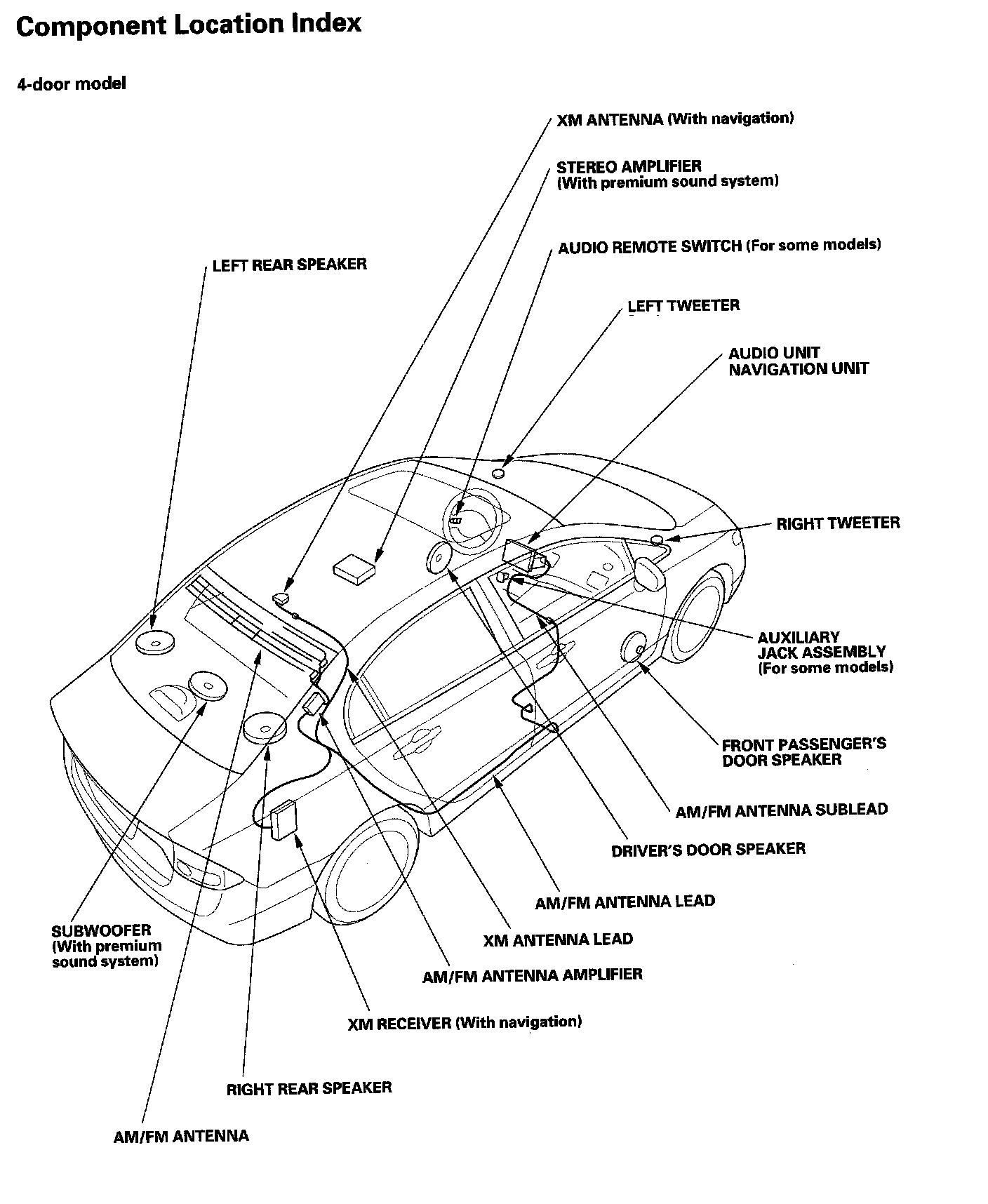

Audio System Component Location Index:



Audio System Component Location Index:
