Home >> Honda >> 2007 >> Accord V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> ECM/PCM

ECM/PCM

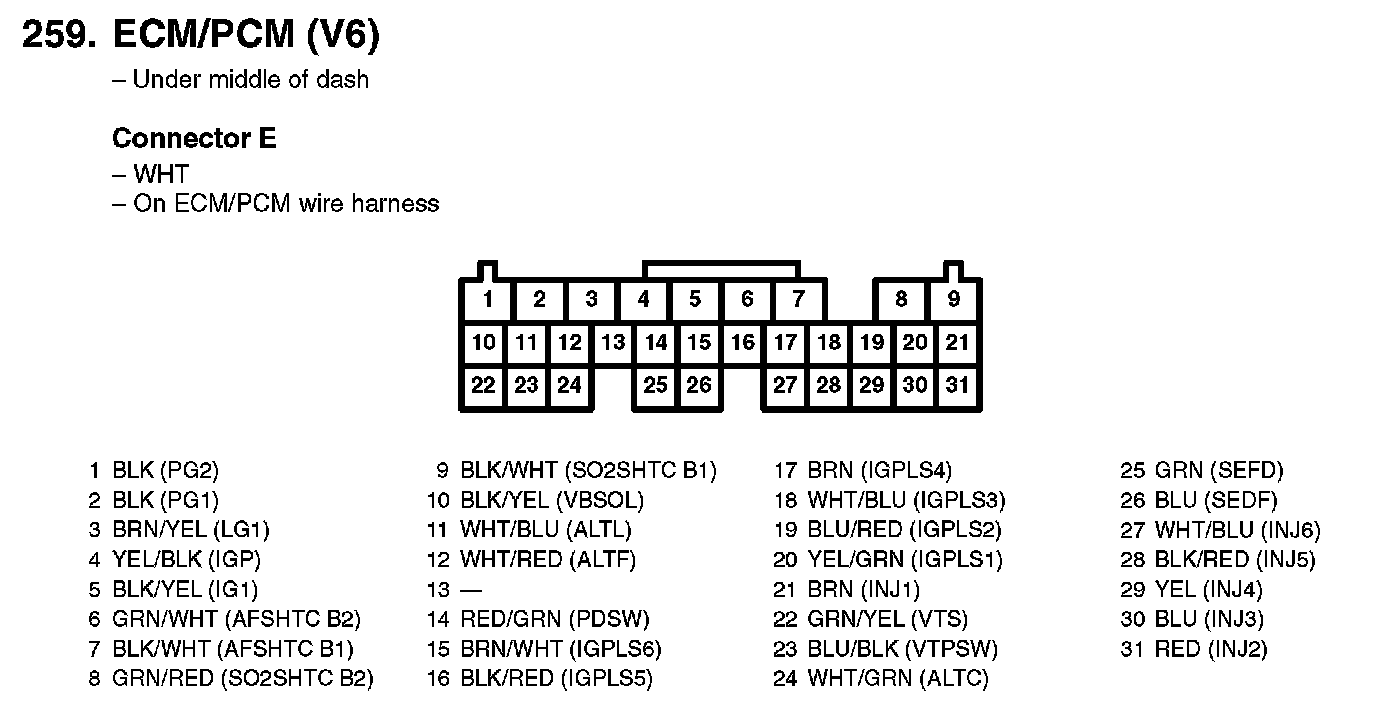

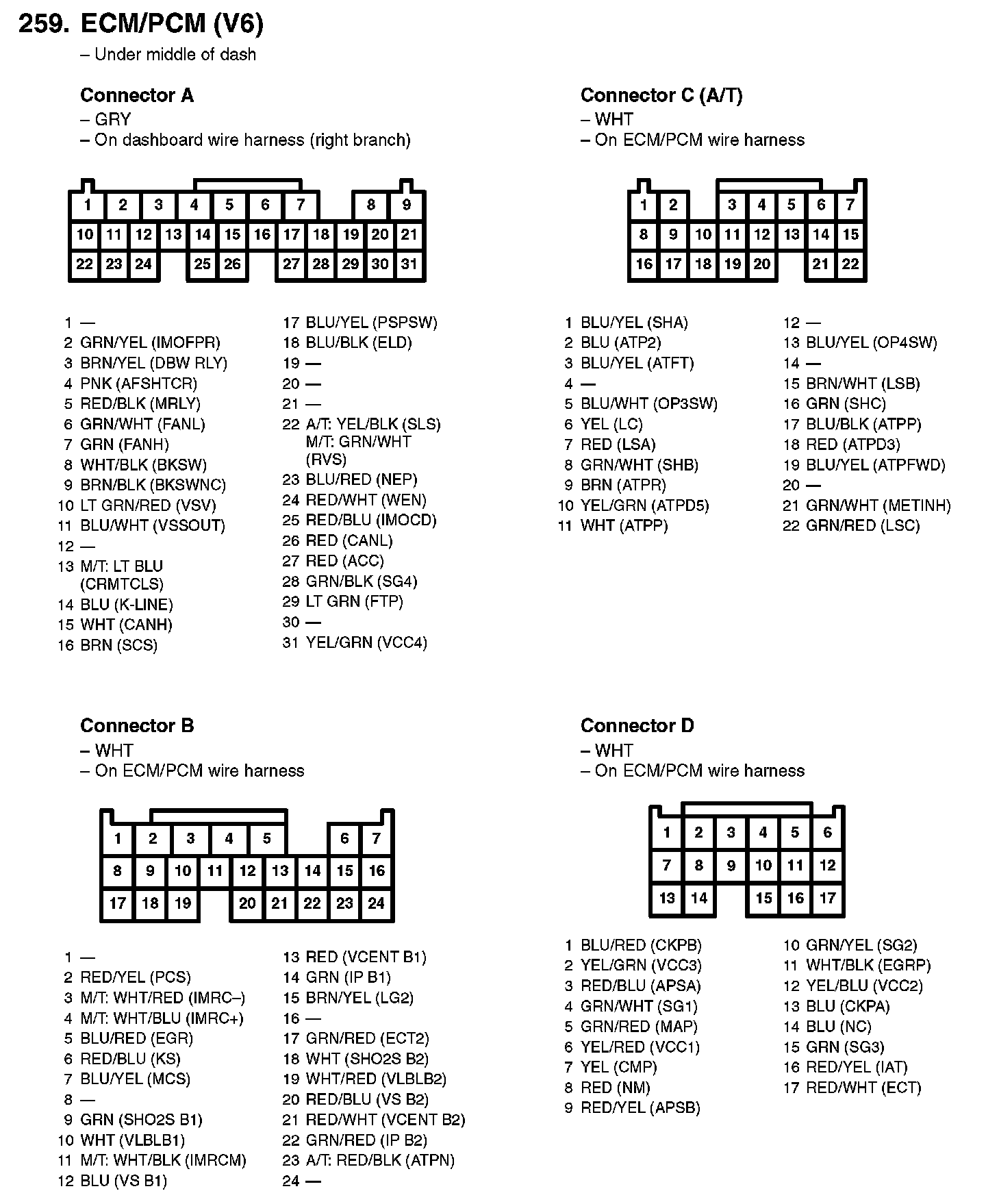

259. ECM/PCM (V6):



259. ECM/PCM (V6):
